Body Harness Splice Locations

Harness Routing Views

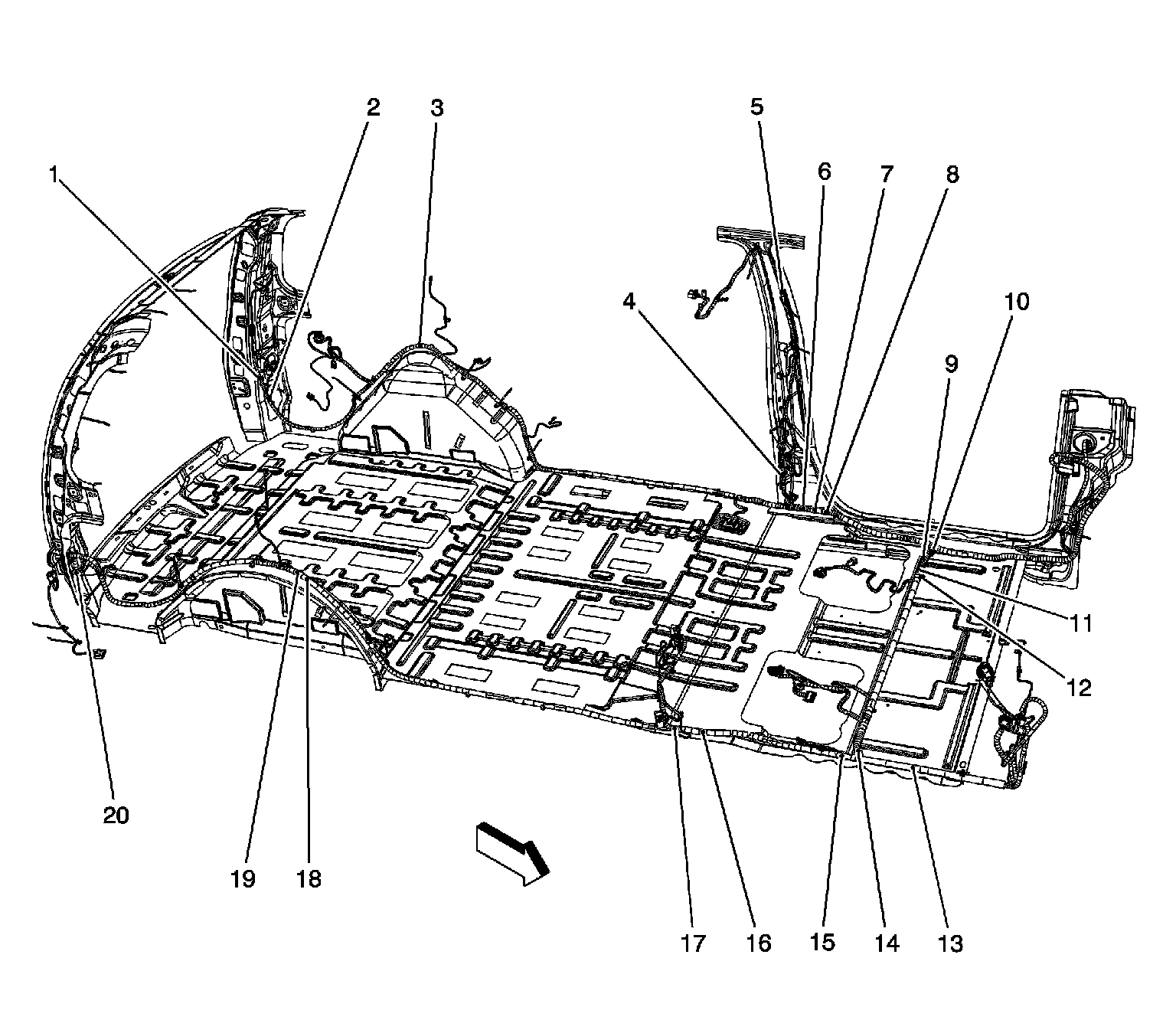

Body Harness Components 3 of 3 (Splice Locations)




1 - J413
2 - J415
3 - J411 (E59)
4 - J331 (E59)
5 - J339
6 - J335
7 - J333
8 - J331 (-E59)
9 - J315
10 - J317
11 - J313
12 - J311
13 - J300
14 - J302
15 - J304
16 - J320 (-E58)
17 - J320 (E58)
18 - J400
19 - J402
20 - J404
