Electronic Throttle Actuator: Diagrams

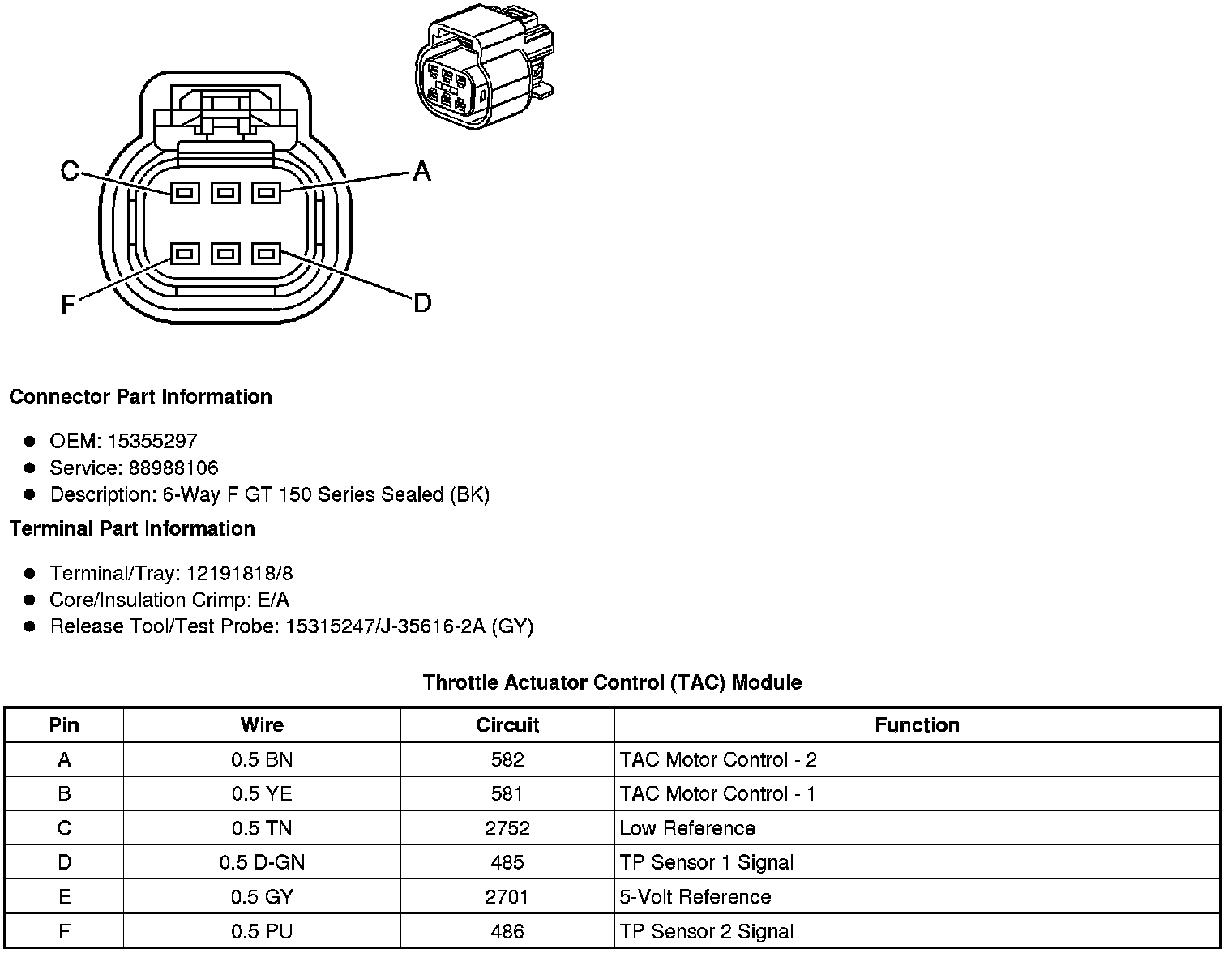

Component Connector End Views

Throttle Actuator Control (TAC) Module
