SIR Schematics (AW9)



SIR Schematics (AW9)

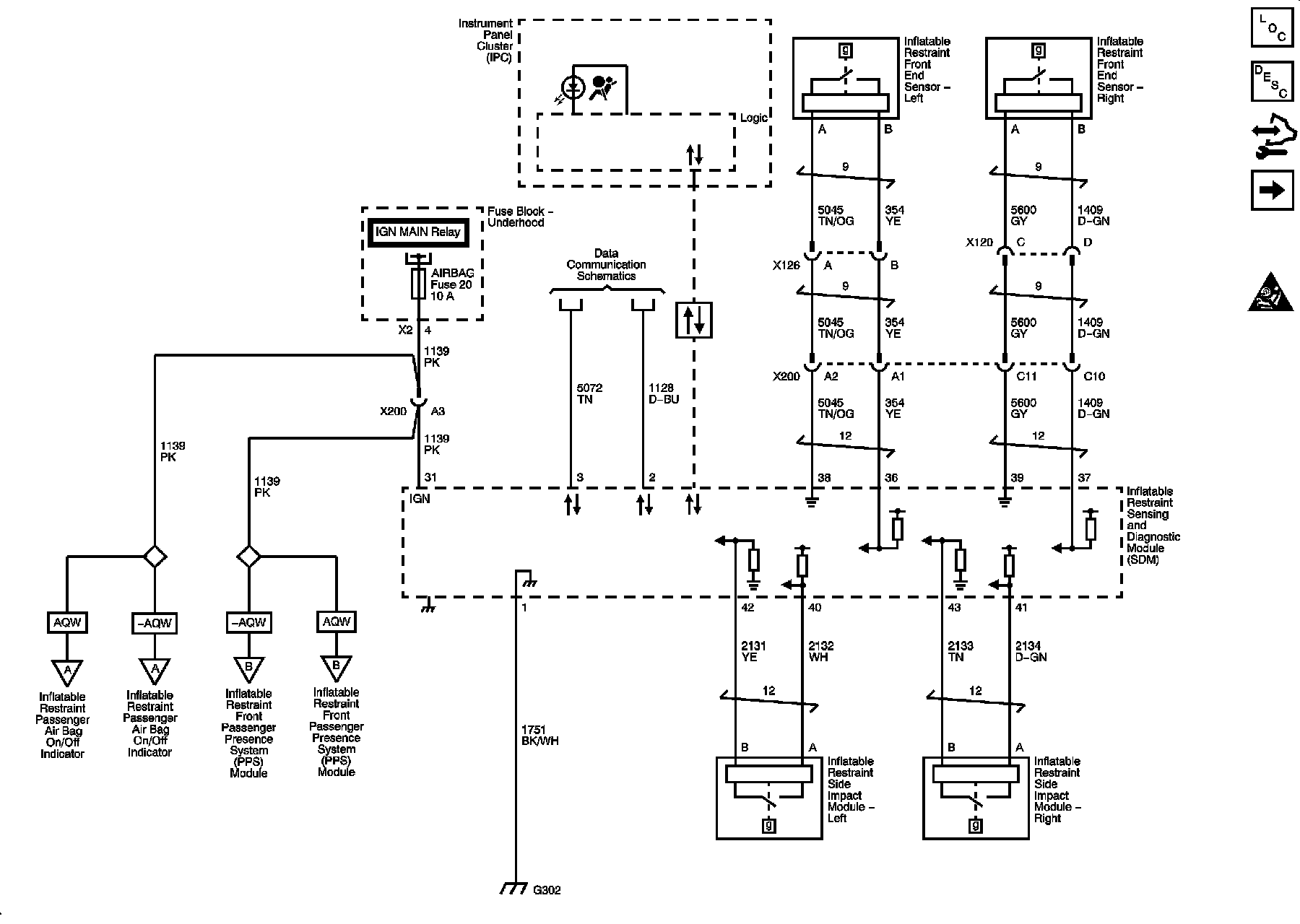

Ground, Impact Sensors, Indicator, and Power





Impact Modules and Pretensioners

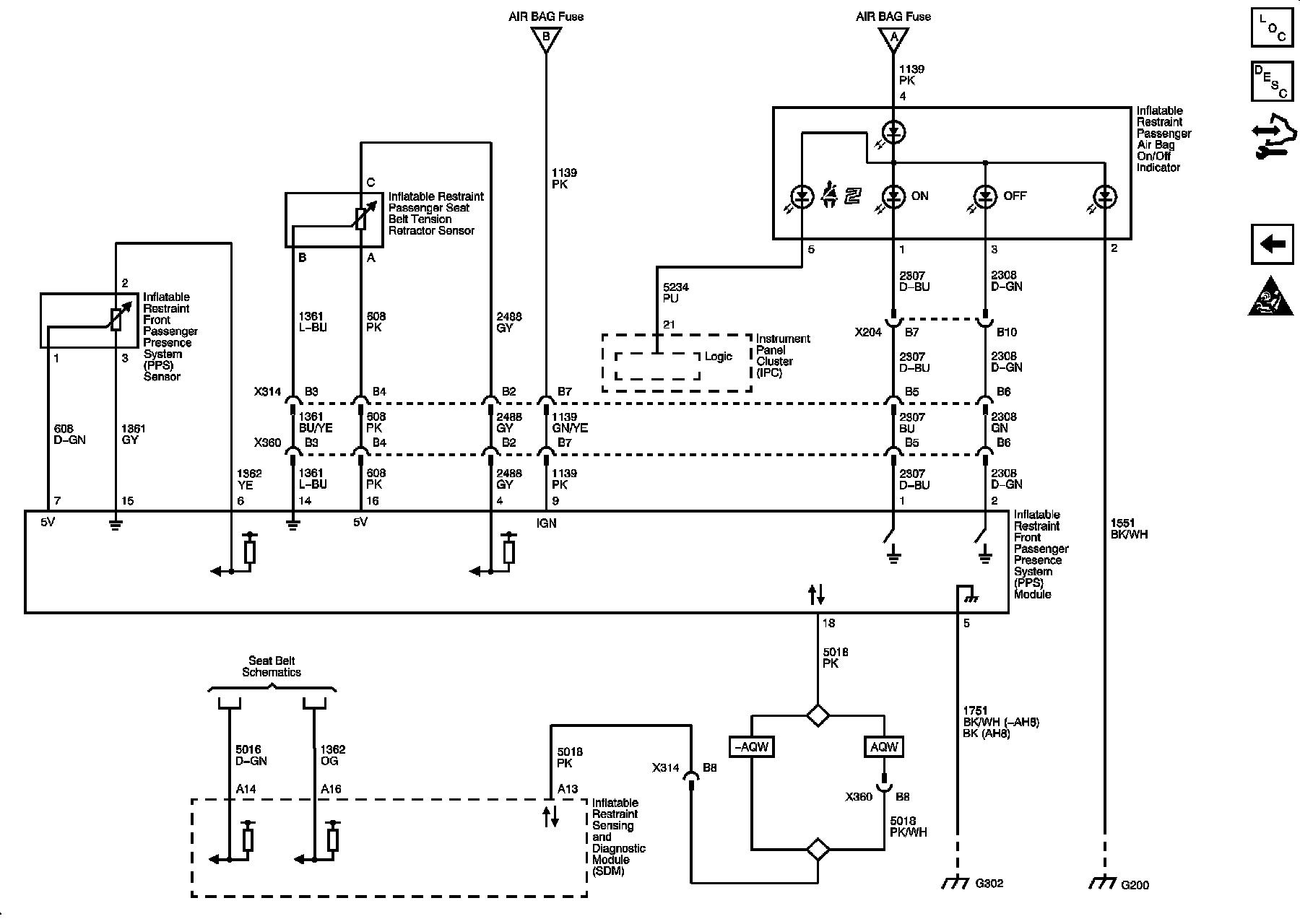

Occupant Sensing (-AQW)





Occupant Sensing (AQW)
