Wheel Speed Sensor: Locations

Wheels/Vehicle Underbody Component Views

ABS Components

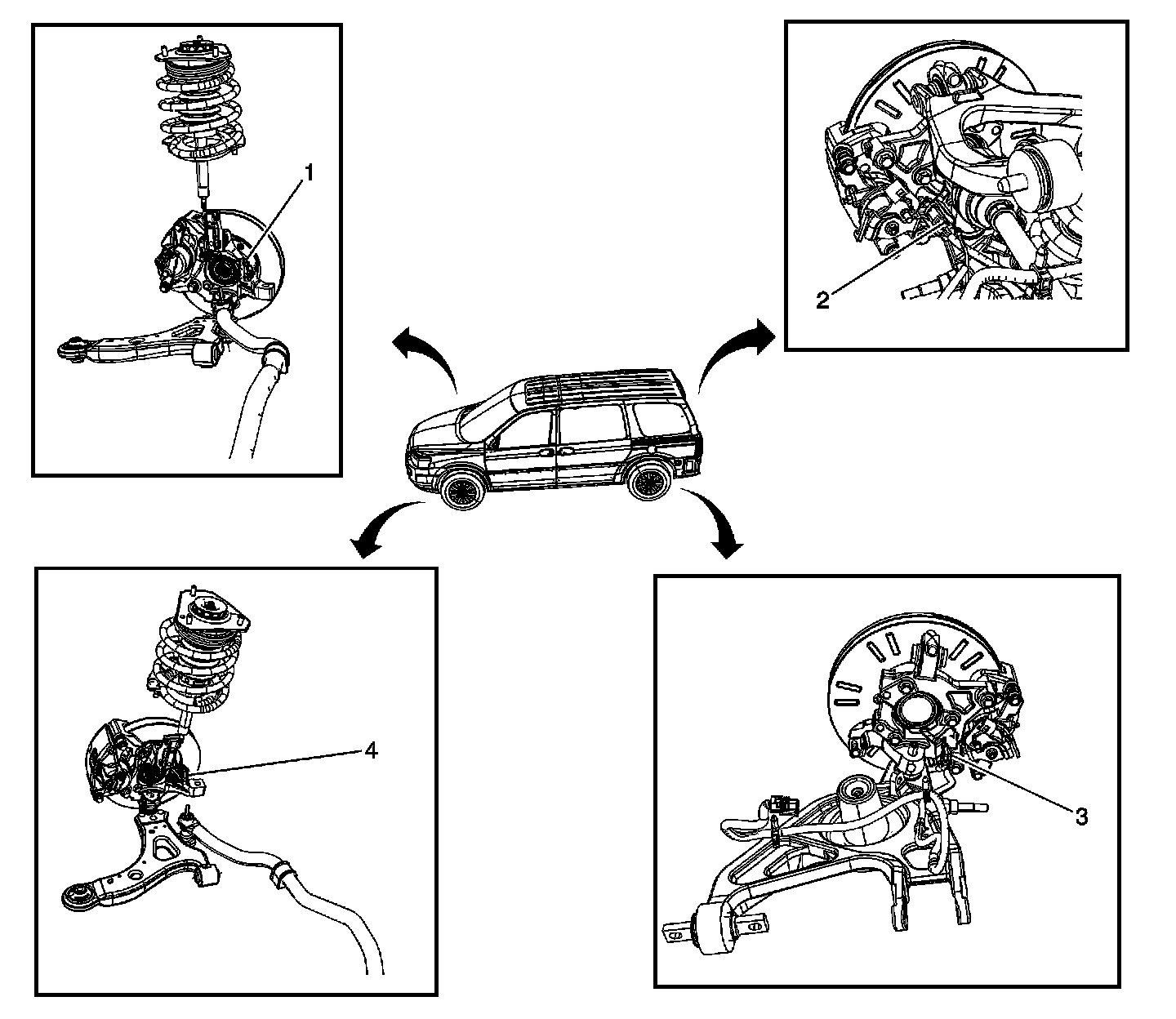

Wheel Speed Sensors (WSS):

1 - Wheel Speed Sensor (WSS) - Right Front
2 - Wheel Speed Sensor (WSS) - Right Rear
3 - Wheel Speed Sensor (WSS) - Left Rear
4 - Wheel Speed Sensor (WSS) - Left Front

Rear Twist Axle Components (FWD)

Twist Axle - Rear (FWD):

1 - X306
2 - Automatic Level Control (ALC) Sensor (G67)
3 - Automatic Level Control (ALC) Compressor (G67)
4 - X309
5 - Left Rear Hub
6 - Wheel Speed Sensor (WSS) - Left Rear
