Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

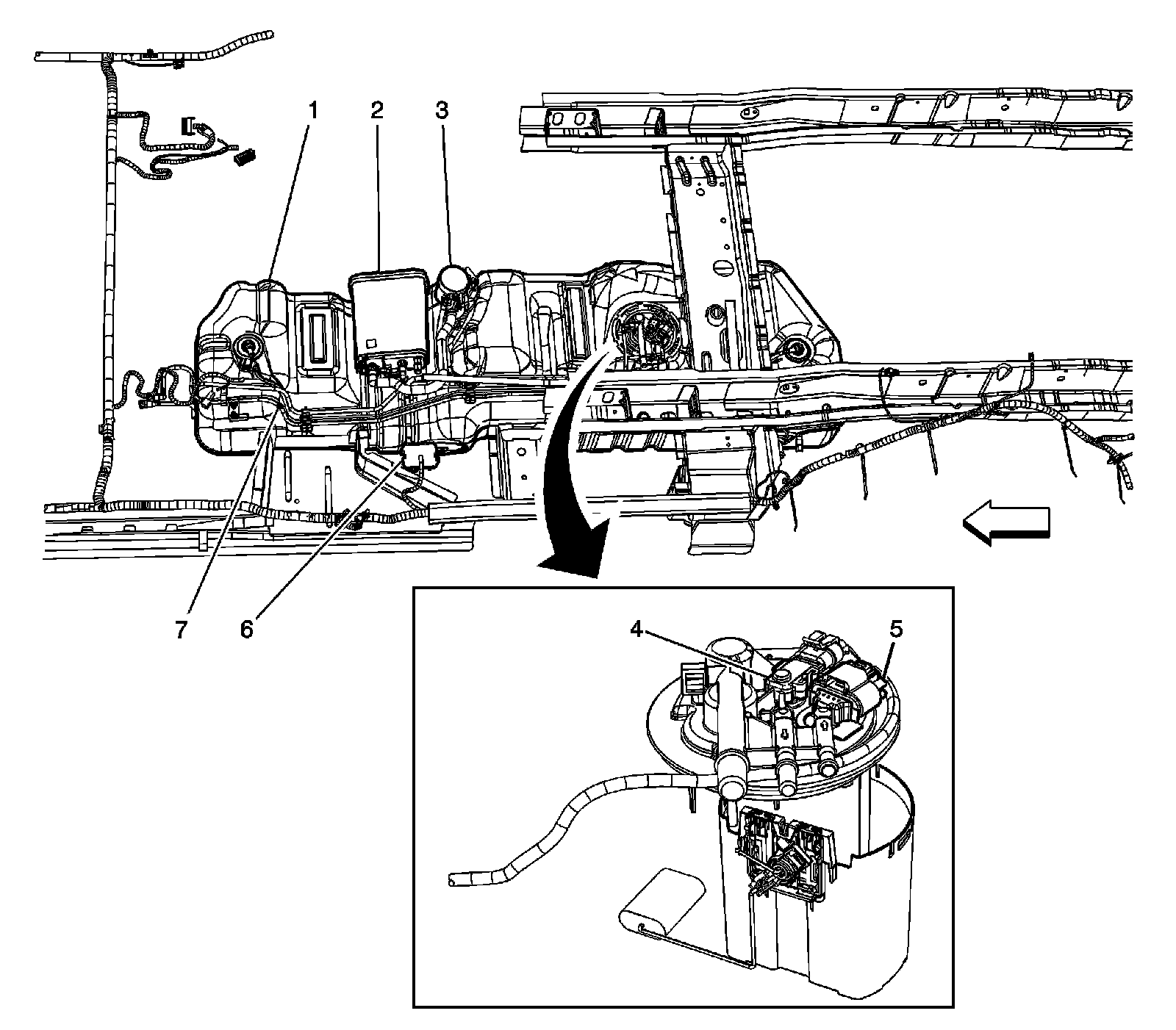

Fuel Tank Components (LWB)




1 - Fuel Tank
2 - Evaporative Emission (EVAP) Canister
3 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4 - Fuel Tank Pressure (FTP) Sensor
5 - Fuel Pump and Sender Assembly
6 - X305
7 - J371

Fuel Tank Components (SWB)




1 - Evaporative Emission (EVAP) Canister
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 - Fuel Tank
4 - Fuel Pump and Sender Assembly
5 - Fuel Tank Pressure (FTP) Sensor
6 - X305
7 - J371

ABS Components

Wheel Speed Sensors (WSS):

1 - Wheel Speed Sensor (WSS) - Right Front
2 - Wheel Speed Sensor (WSS) - Right Rear
3 - Wheel Speed Sensor (WSS) - Left Rear
4 - Wheel Speed Sensor (WSS) - Left Front

Rear Twist Axle Components (FWD)

Twist Axle - Rear (FWD):

1 - X306
2 - Automatic Level Control (ALC) Sensor (G67)
3 - Automatic Level Control (ALC) Compressor (G67)
4 - X309
5 - Left Rear Hub
6 - Wheel Speed Sensor (WSS) - Left Rear
