Fluid Diagrams

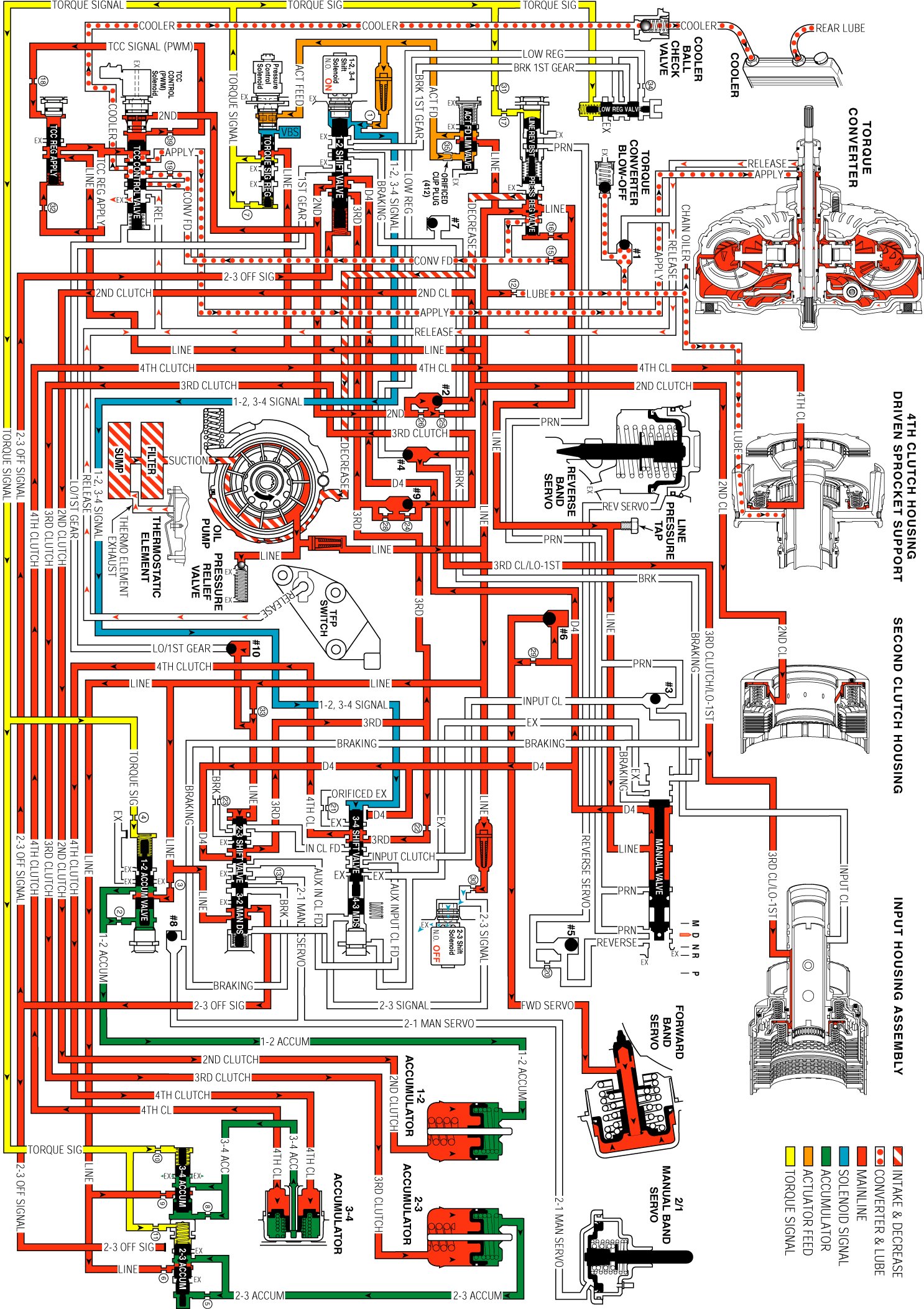

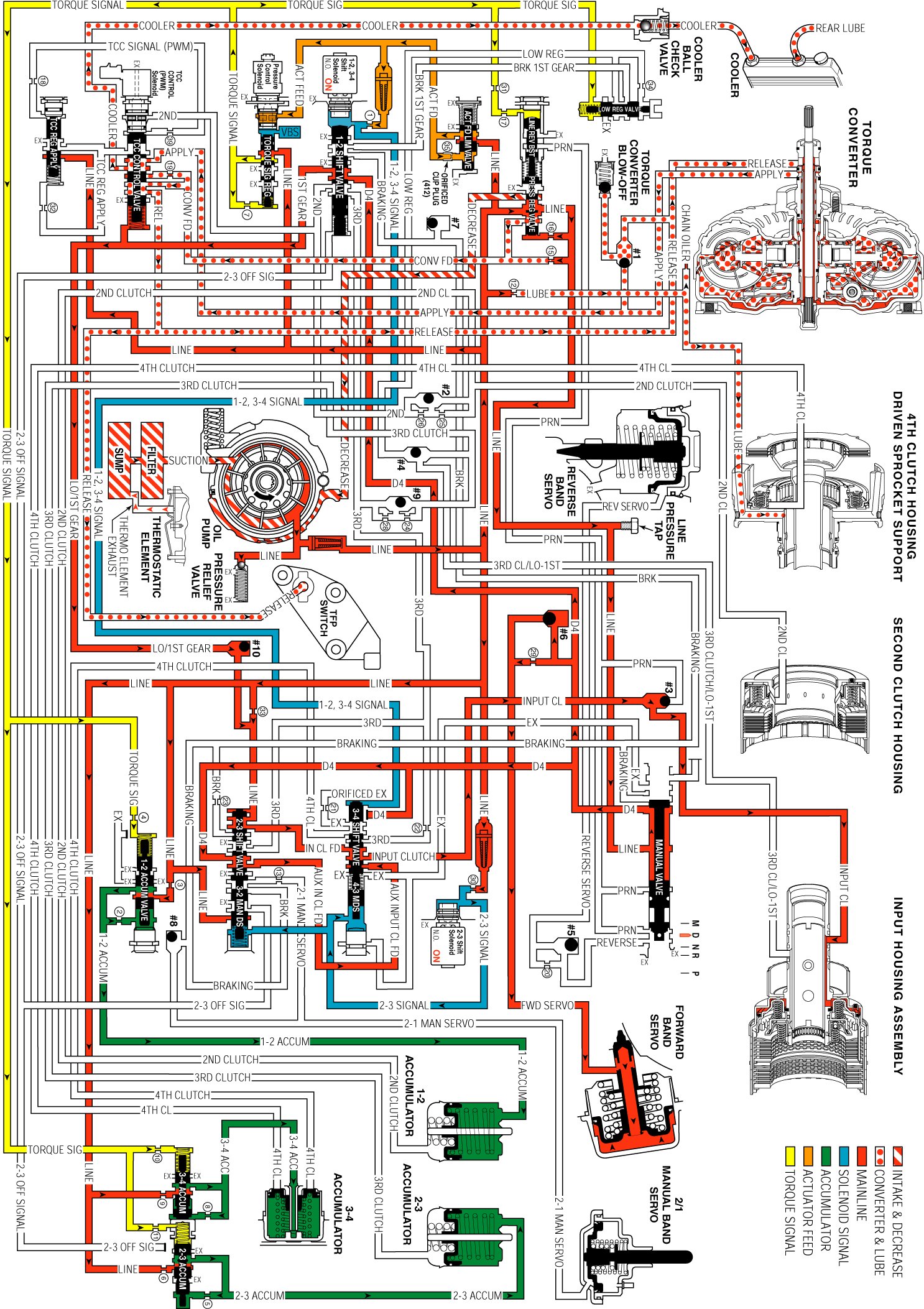

Park or Neutral - Engine Running (Park - Without Touch Activated Power)
Park - Engine Running - Without Touch Activated Power:

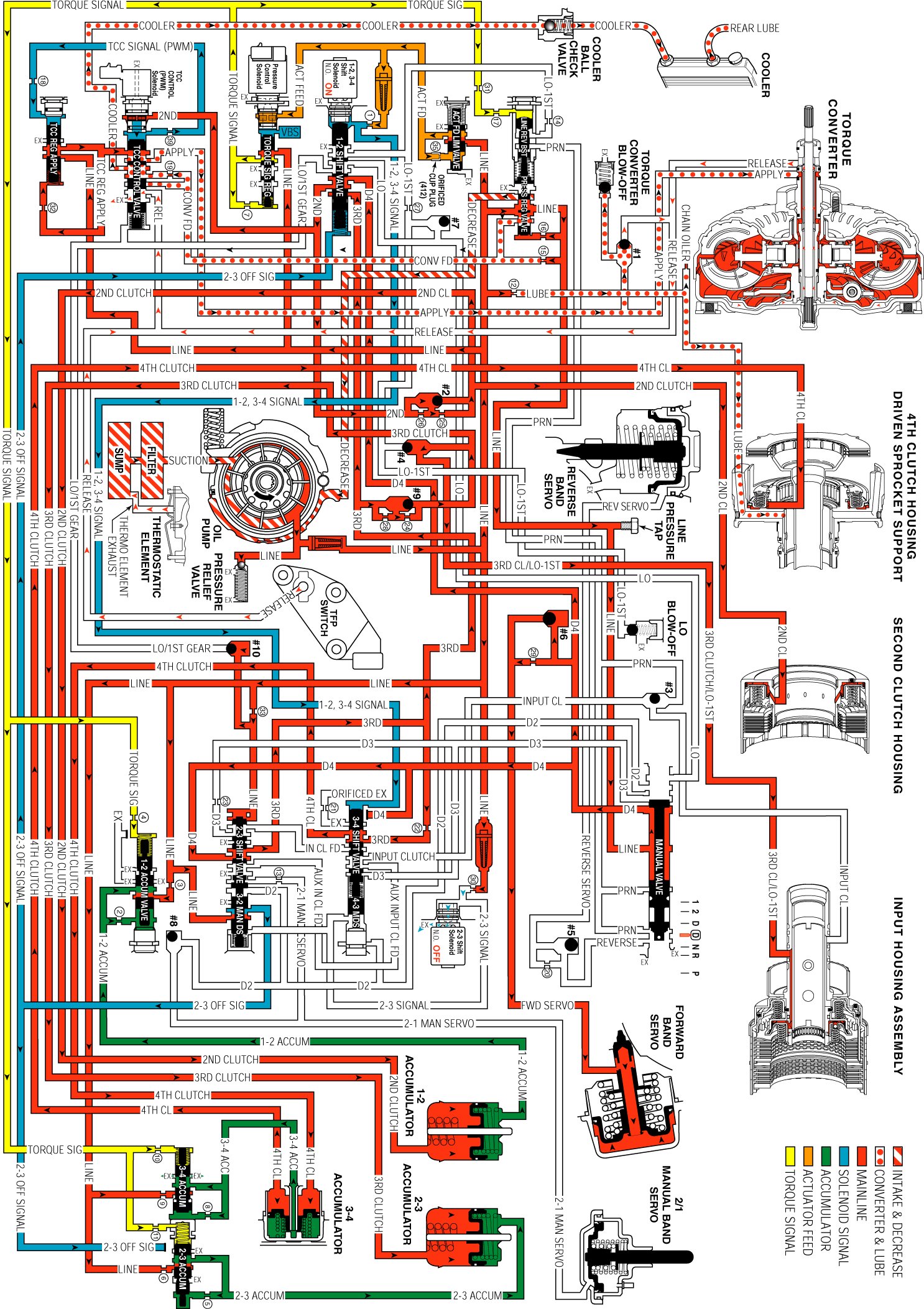

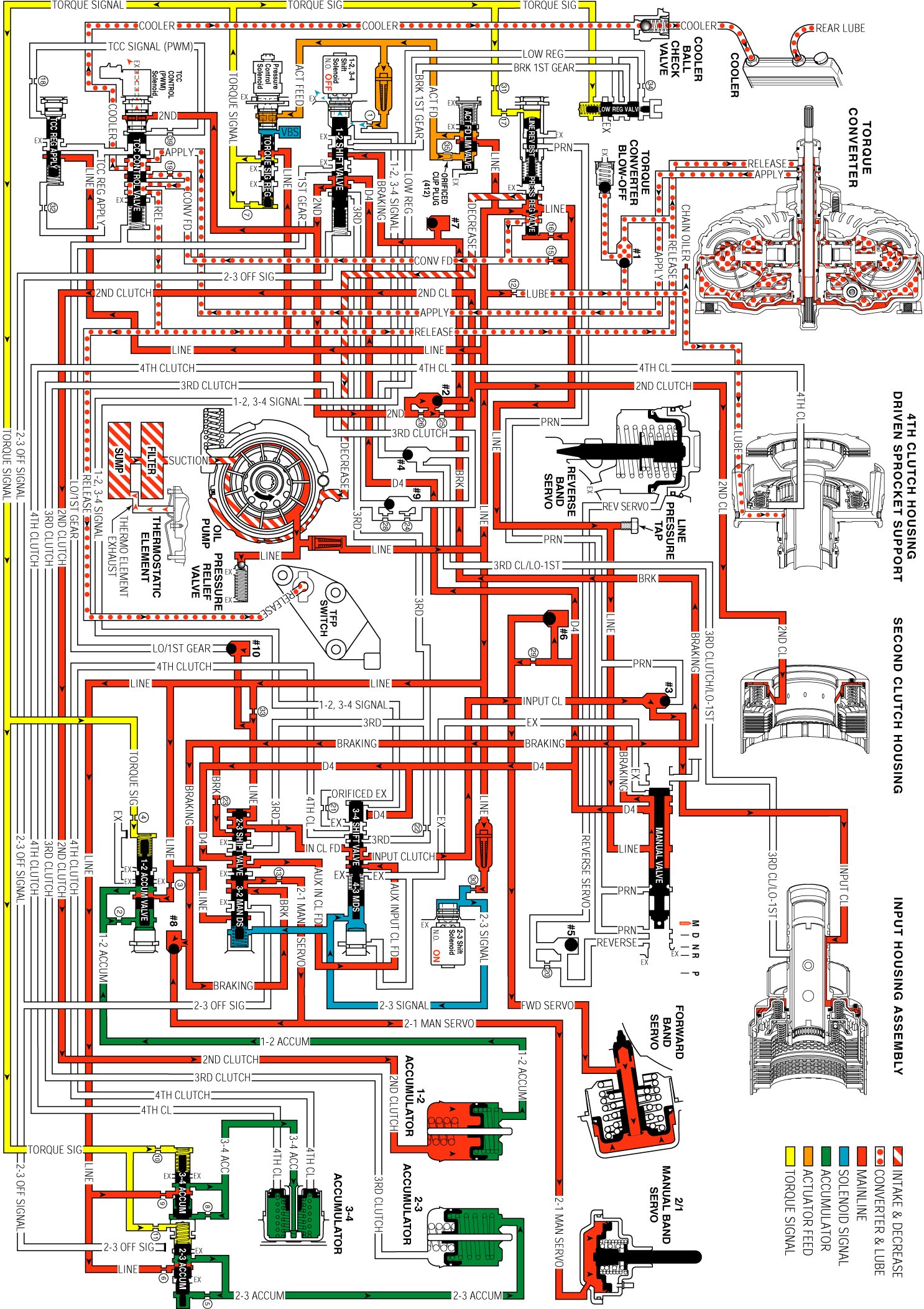

Park or Neutral - Engine Running (Park - With Touch Activated Power)
Park - Engine Running - With Touch Activated Power:

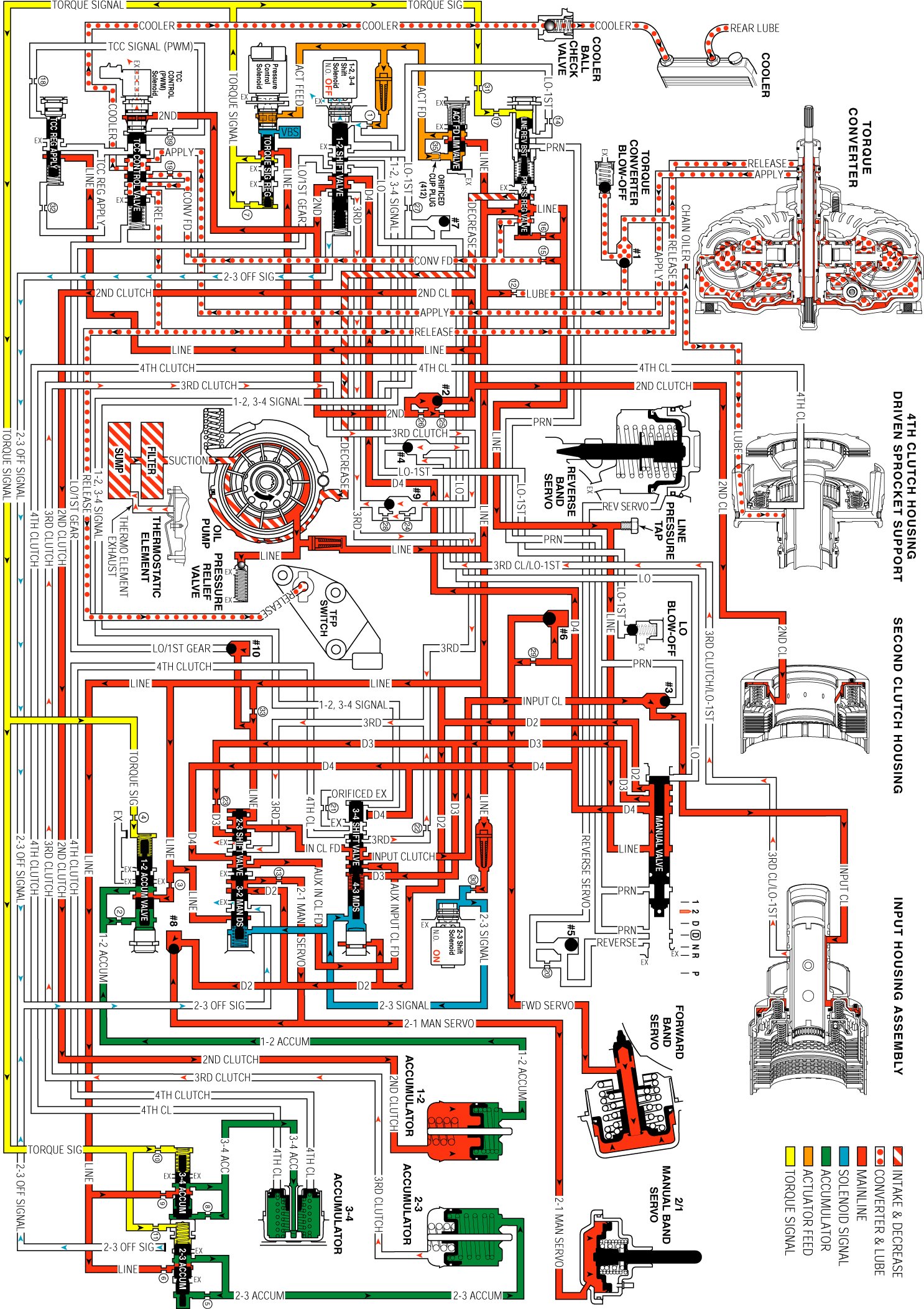

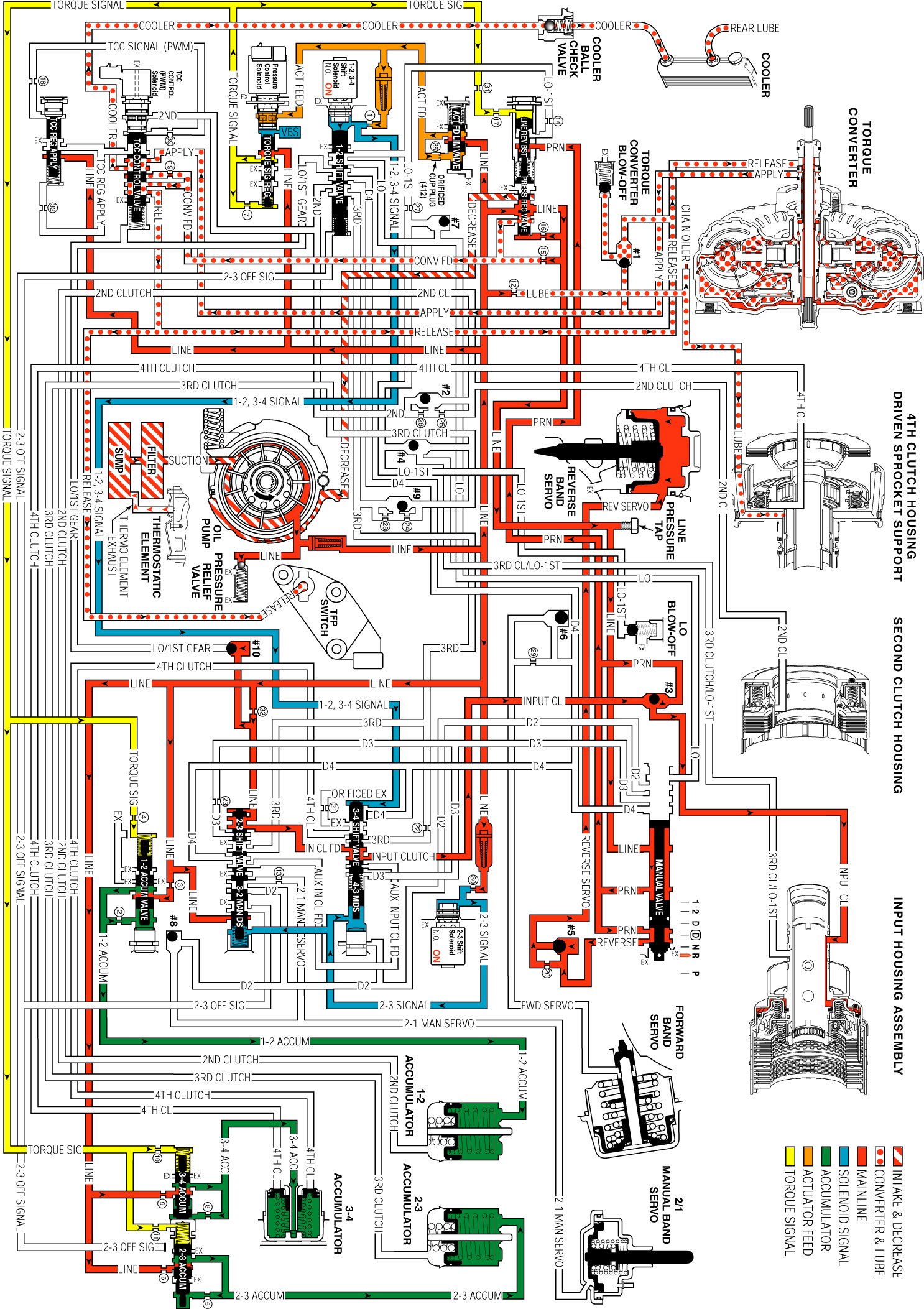

Park or Neutral - Engine Running (Neutral-Without Touch Activated Power)
Neutral - Engine Running - Without Touch Activated Power:

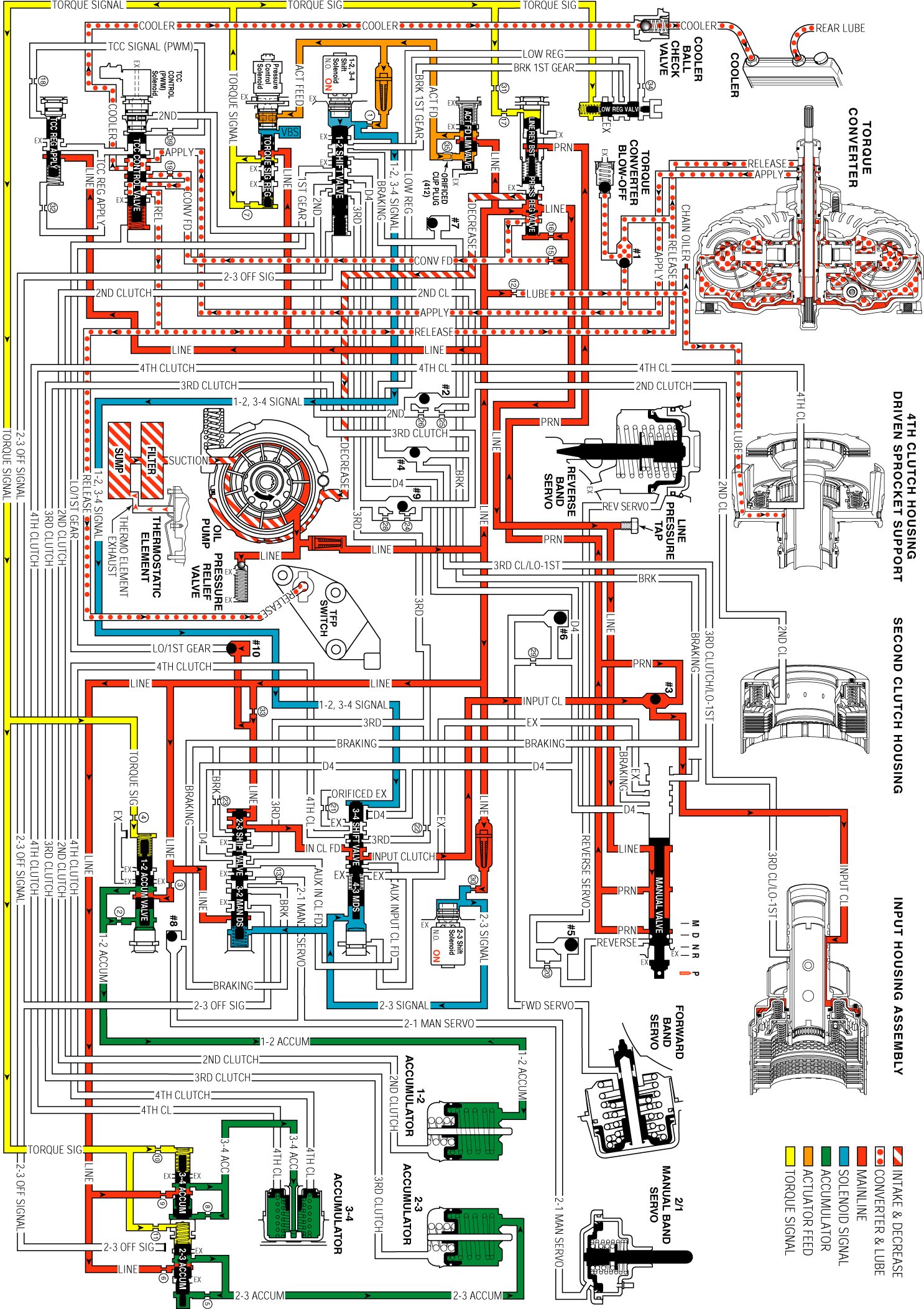

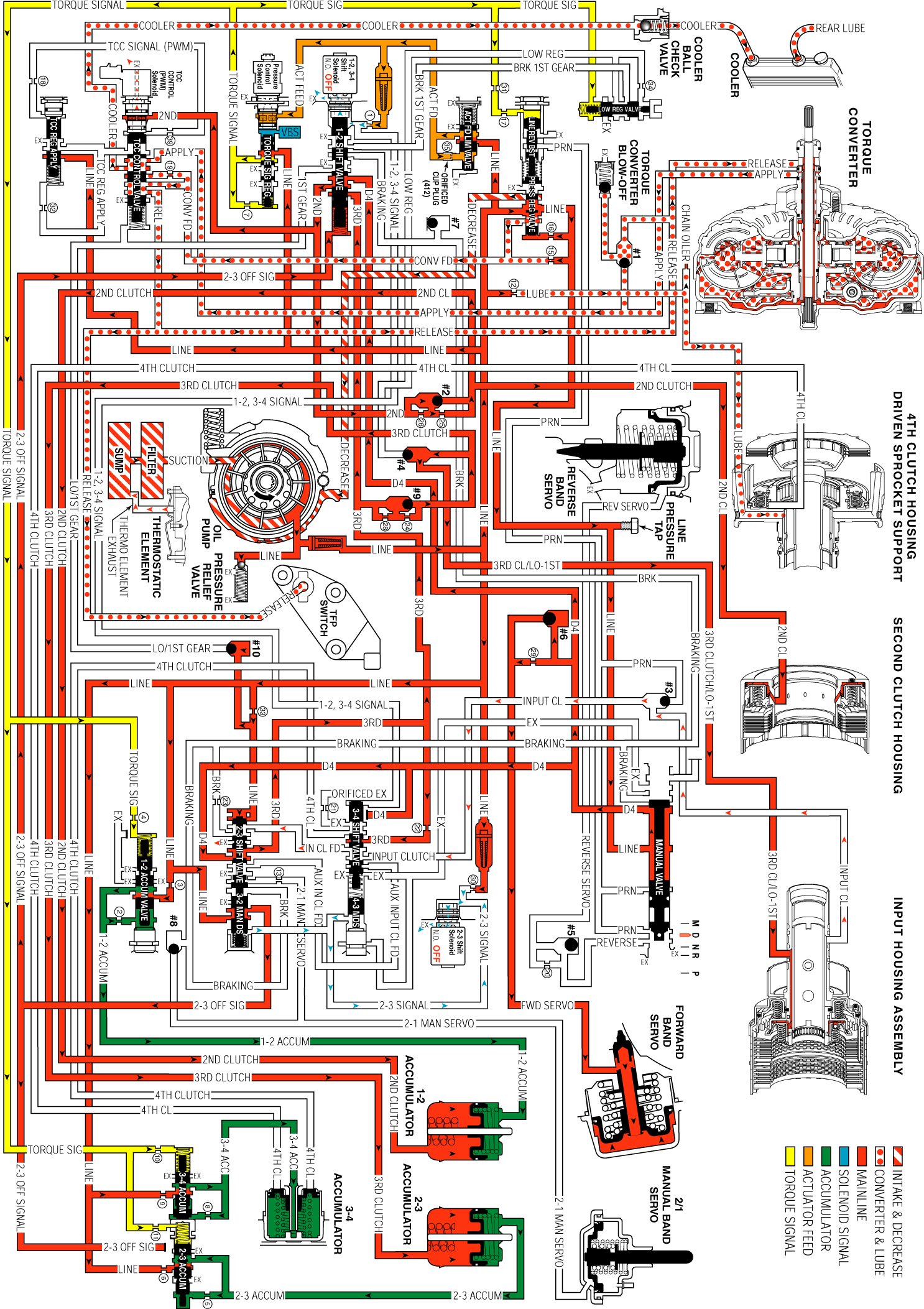

Park or Neutral - Engine Running (Park - Without Touch Activated Power)
Park - Engine Running - Without Touch Activated Power:

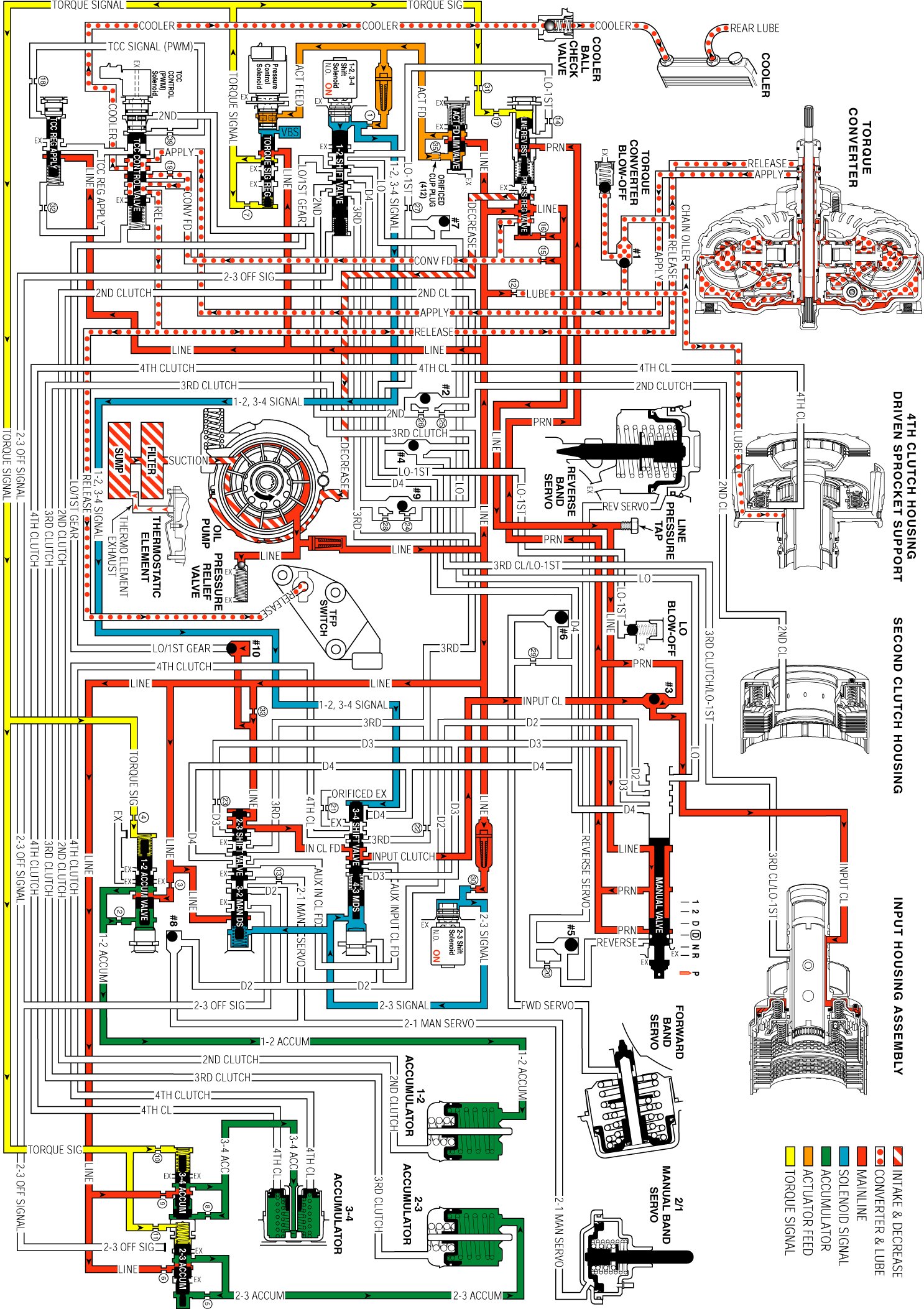

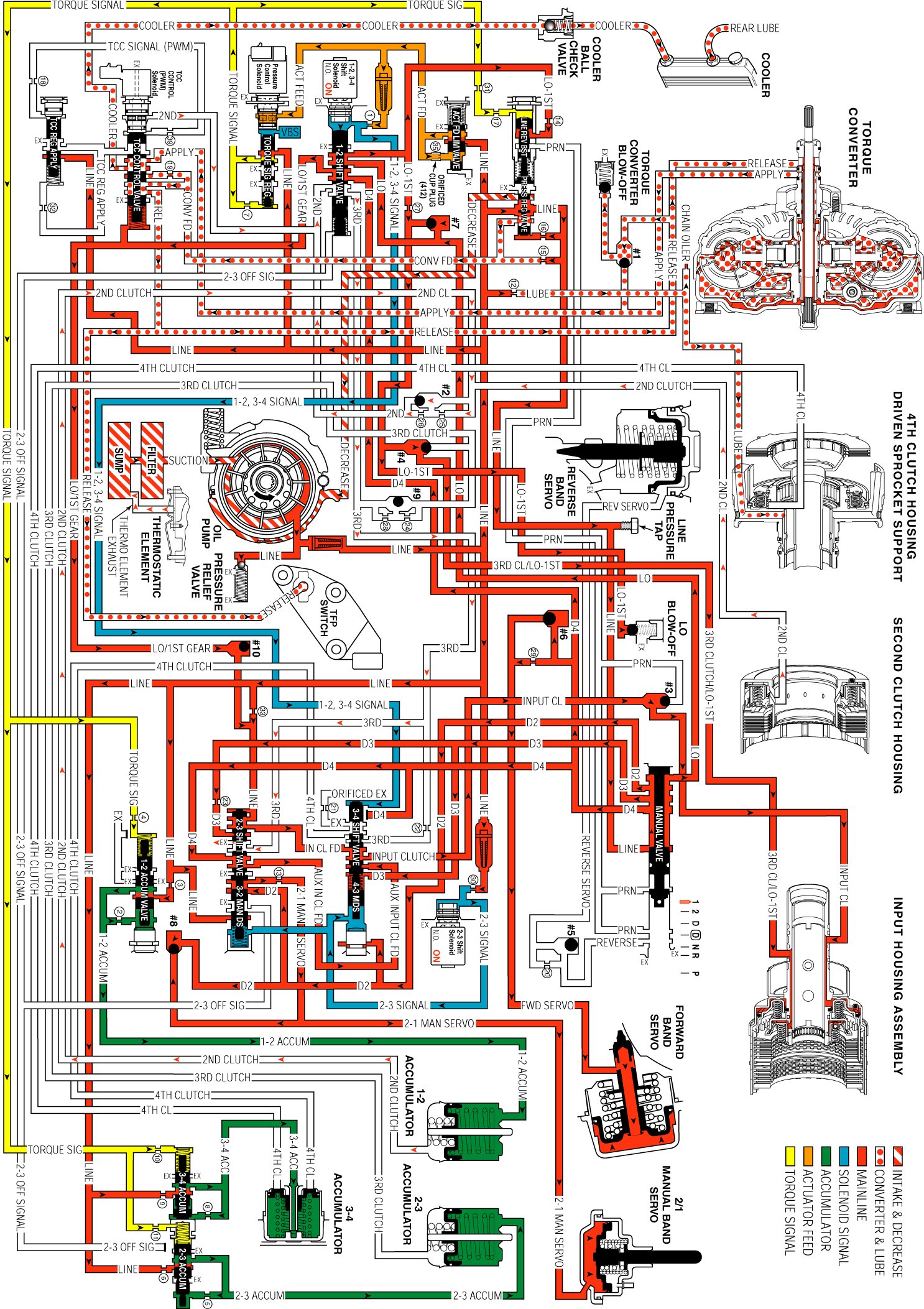

Park or Neutral - Engine Running (Neutral - With Touch Activated Power)
Neutral - Engine Running - With Touch Activated Power:

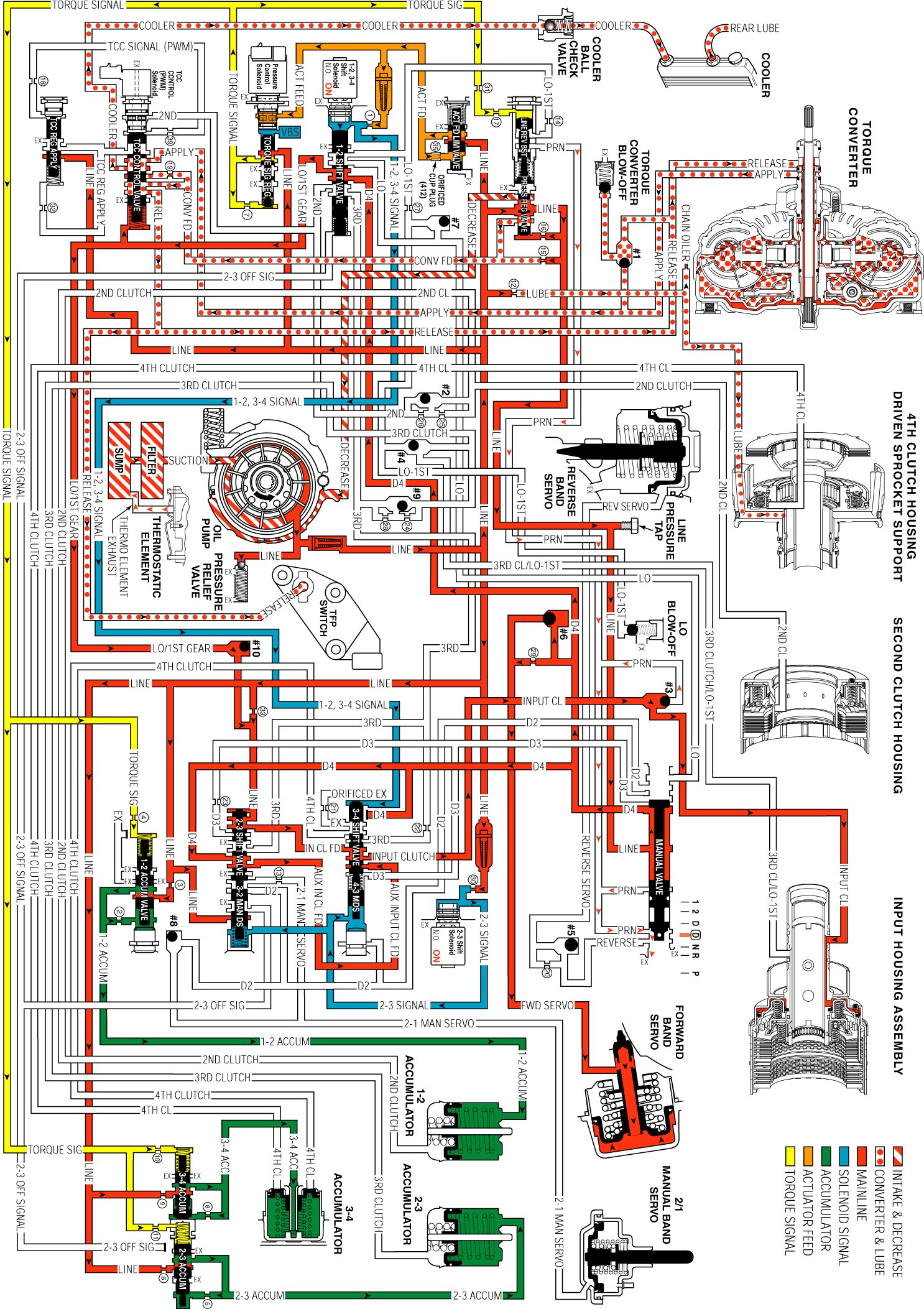

Reverse (Without Touch Activated Power)
Reverse - Without Touch Activated Power:

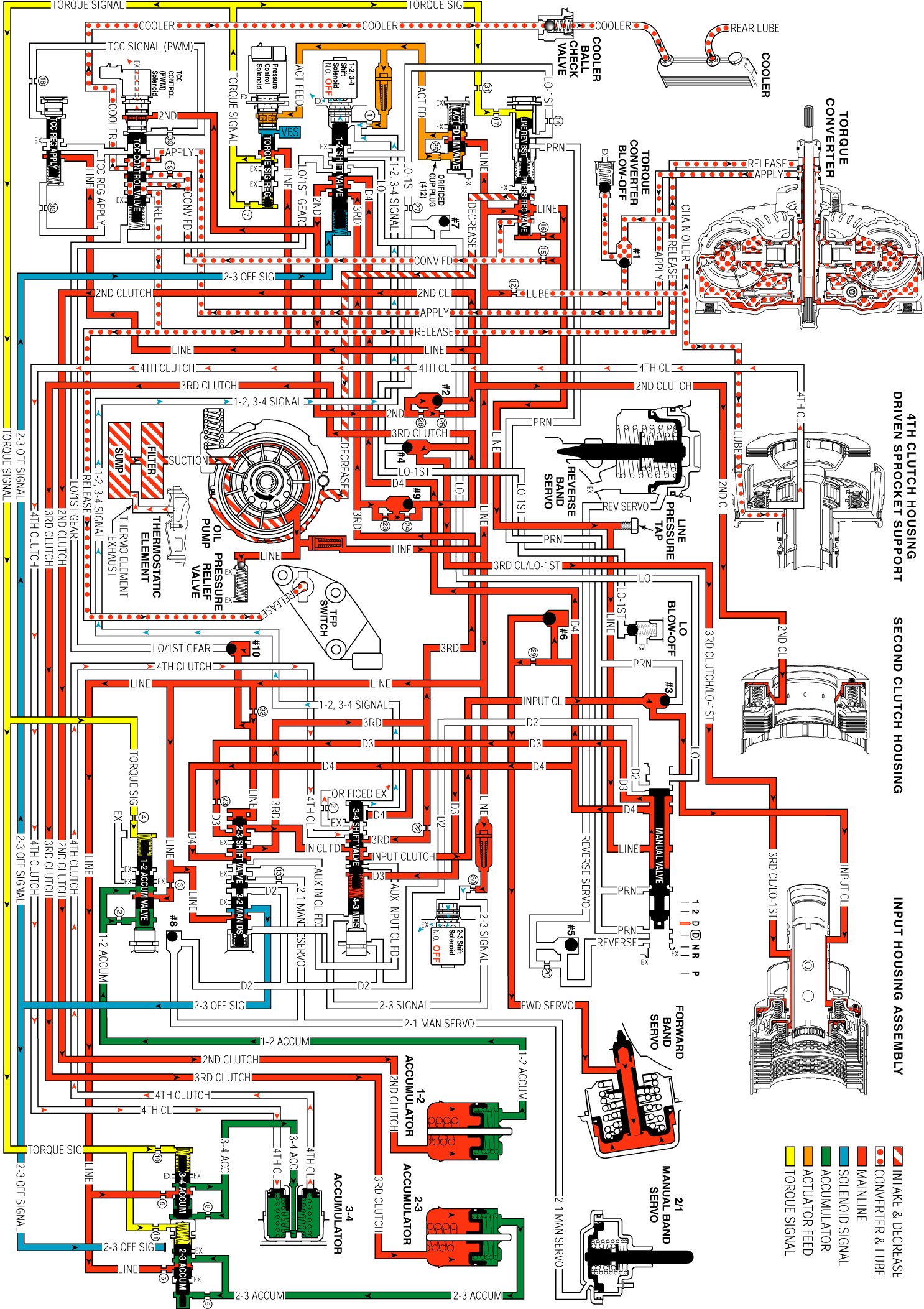

Reverse (With Touch Activated Power)
Reverse - With Touch Activated Power:

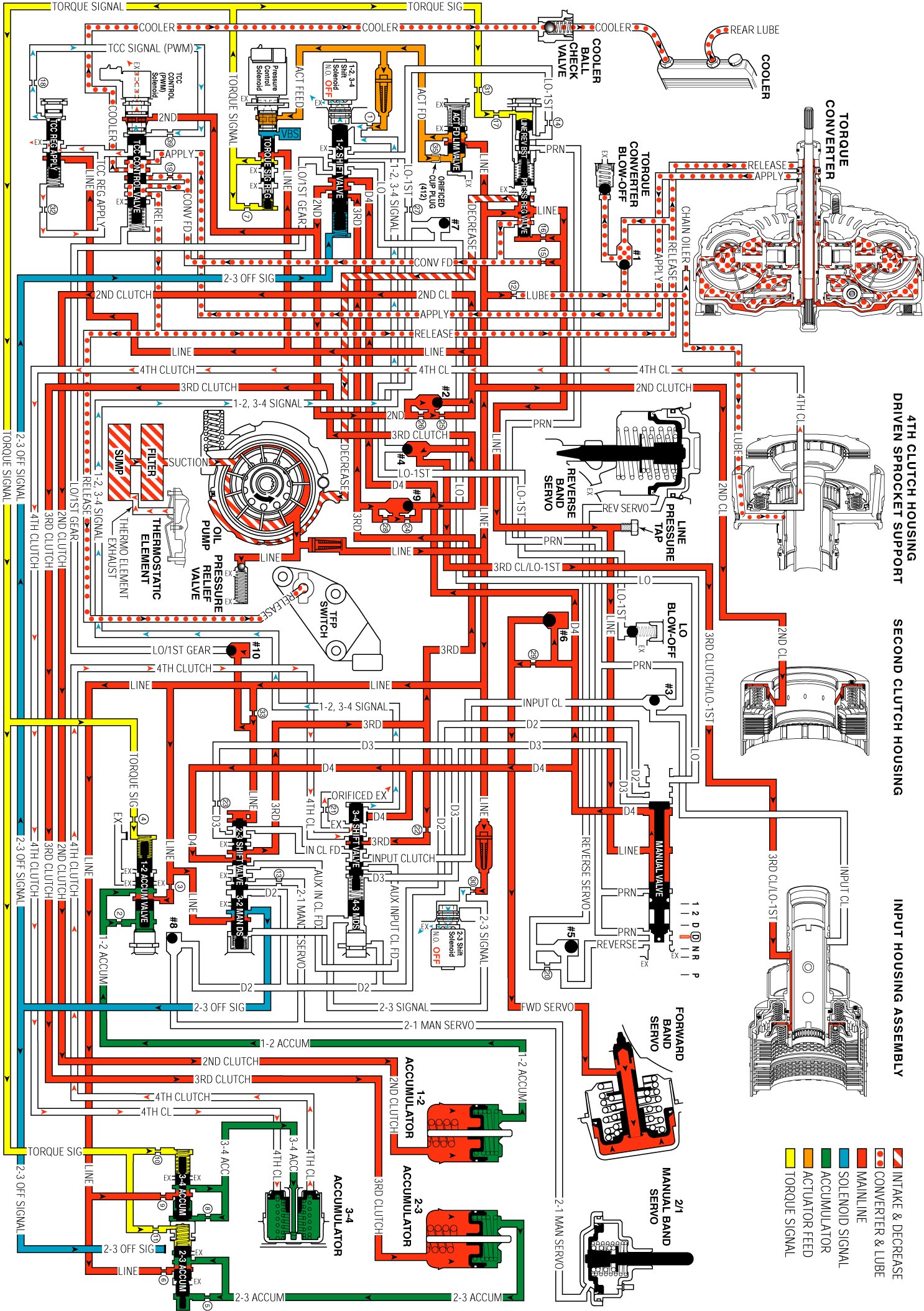

Overdrive Range, First Gear (Without Touch Activated Power)
Overdrive Range, First Gear - Without Touch Activated Power:
Overdrive Range, First Gear (With Touch Activated Power)
Overdrive Range, First Gear - With Touch Activated Power:
Overdrive Range, Second Gear (Without Touch Activated Power)
Overdrive Range, Second Gear - Without Touch Activated Power:
Overdrive Range, Second Gear (With Touch Activated Power)
Overdrive Range, Second Gear - With Touch Activated Power:
Overdrive Range, Third Gear - Torque Converter Clutch Not Applied (Without Touch Activated Power)
Overdrive Range, Third Gear - Torque Converter Clutch (TCC) Not Applied - Without Touch Activated Power:
Overdrive Range, Third Gear - Torque Converter Clutch Not Applied (With Touch Activated Power)
Overdrive Range, Third Gear - Torque Converter Clutch (TCC) Not Applied - With Touch Activated Power:
Overdrive Range, Fourth Gear - Torque Converter Clutch Not Applied (Without Touch Activated Power)
Overdrive Range, Fourth Gear - TCC Not Applied - Without Touch Activated Power:
Overdrive Range, Fourth Gear - Torque Converter Clutch Not Applied (With Touch Activated Power)
Overdrive Range, Fourth Gear - TCC Not Applied - With Touch Activated Power:
Overdrive Range, Fourth Gear - Torque Converter Clutch Applied (Without Touch Activated Power)
Overdrive Range, Fourth Gear - TCC Applied - Without Touch Activated Power:
Overdrive Range, Fourth Gear - Torque Converter Clutch Applied (With Touch Activated Power)
Overdrive Range, Fourth Gear - TCC Applied - With Touch Activated Power:
Overdrive Range, 4-3 Downshift - Torque Converter Clutch Not Applied (Without Touch Activated Power)
Overdrive Range, 4-3 Downshift - TCC Not Applied - Without Touch Activated Power:
Overdrive Range, 4-3 Downshift - Torque Converter Clutch Not Applied (With Touch Activated Power)
Overdrive Range, 4-3 Downshift - TCC Not Applied - With Touch Activated Power:
Drive Range, Manual Third (from Overdrive Range) (Without Touch Activated Power)
Drive Range, Manual 3rd - from Overdrive Range - Without Touch Activated Power:
Manual Third Gear (With Touch Activated Power)
Drive Range, Manual 3rd - from Overdrive Range - With Touch Activated Power:
Drive Range, Manual Second (from Drive, Manual Third) (Without Touch Activated Power)
Drive Range, Manual 2nd - from Drive, Manual 3rd - Without Touch Activated Power:
Manual Second Gear (With Touch Activated Power)
Drive Range, Manual 2nd - from Drive, Manual 3rd - With Touch Activated Power:
Drive Range, Manual First (from Drive, Manual Second) (Without Touch Activated Power)
Drive Range, Manual 1st - from Drive, Manual 2nd - Without Touch Activated Power:
Manual First Gear (With Touch Activated Power)
Drive Range, Manual 1st - from Drive, Manual 2nd - With Touch Activated Power:
