P0182

DTC P0182 Fuel Temperature Sensor Circuit Low Voltage

Circuit Description

The fuel temperature (FT) sensor is installed to the fuel supply pump. The FT sensor is a variable resistor and it measures the temperature of the fuel entering the fuel supply pump. The sensor has a signal circuit and a low reference circuit. The ECM supplies 5 volts to the signal circuit and a ground for the low reference circuit. When the FT sensor is cold the sensor resistance is high. When the fuel temperature increases the sensor resistance decreases. With high sensor resistance the ECM detects a high voltage on the signal circuit. With lower sensor resistance the ECM detects a lower voltage on the signal circuit. If the ECM detects an excessively low signal voltage the DTC will set.

Condition for Running the DTC

^ DTC P0183 is not set.
^ The battery voltage is more than 10 volts.
^ The ignition switch is ON.

Condition for Setting the DTC

^ The ECM detects that the FT sensor signal voltage is less than 0.1 volts for 1 second.

Action Taken When the DTC Sets

^ The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for Action Taken When the DTC Sets - Type A.
^ The ECM uses a FT substitution of default value.
^ The ECM inhibits EGR control.
^ The ECM inhibits DPF regeneration control.

Condition for Clearing the DTC

^ Refer to DTC Type Definitions for Condition for Clearing the MIL/DTC - Type A.

Diagnostic Aids

^ If an intermittent condition is suspected refer to Intermittent Conditions in this section.
^ Use the Temperature vs. Resistance table to test the FT sensor at various temperature levels to evaluate the possibility of a skewed sensor. A skewed sensor could result in poor driveability concerns.

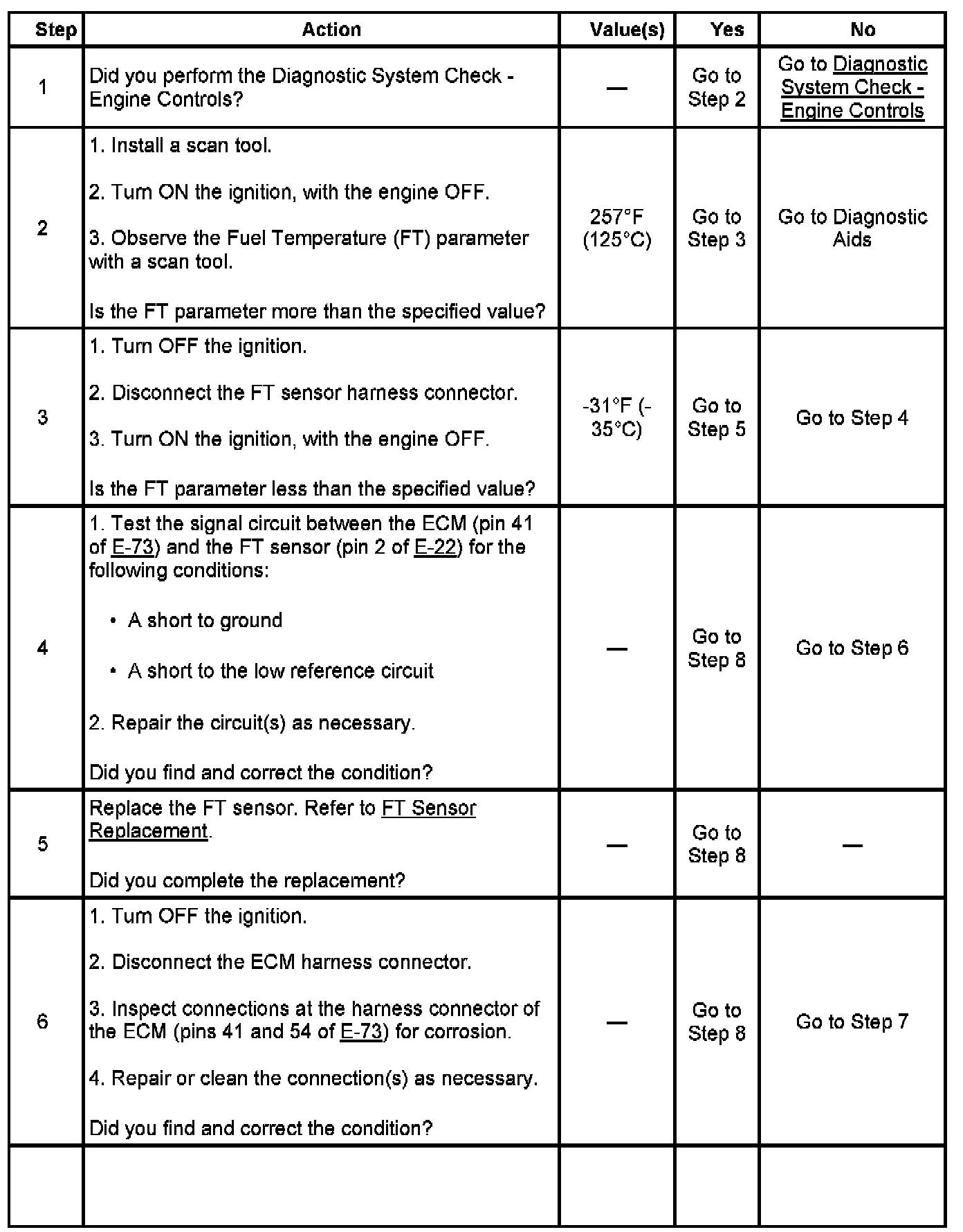

Circuit/System Testing DTC P0182
