P062F

DTC P062F Control Module Long Term Memory Performance

Circuit Description

This diagnostic applies to internal microprocessor integrity conditions within the ECM.

Condition for Running the DTC

^ The battery voltage is between 10 to 16 volts.
^ The ignition switch is ON.

Condition for Setting the DTC

^ The ECM detects that the calculated checksum does not agree with the electrically erasable & programmable read only memory (EEPROM) internal registered checksum.

Action Taken When the DTC Sets

^ The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for Action Taken When the DTC Sets - Type A.
^ The ECM limits fuel injection quantity.
^ The ECM inhibits EGR control.
^ The ECM inhibits DPF regeneration control.
^ The ECM inhibits cruise control.
^ The ECM inhibits PTO control.

Condition for Clearing the DTC

^ Refer to DTC Type Definitions for Condition for Clearing the MIL/DTC - Type A.

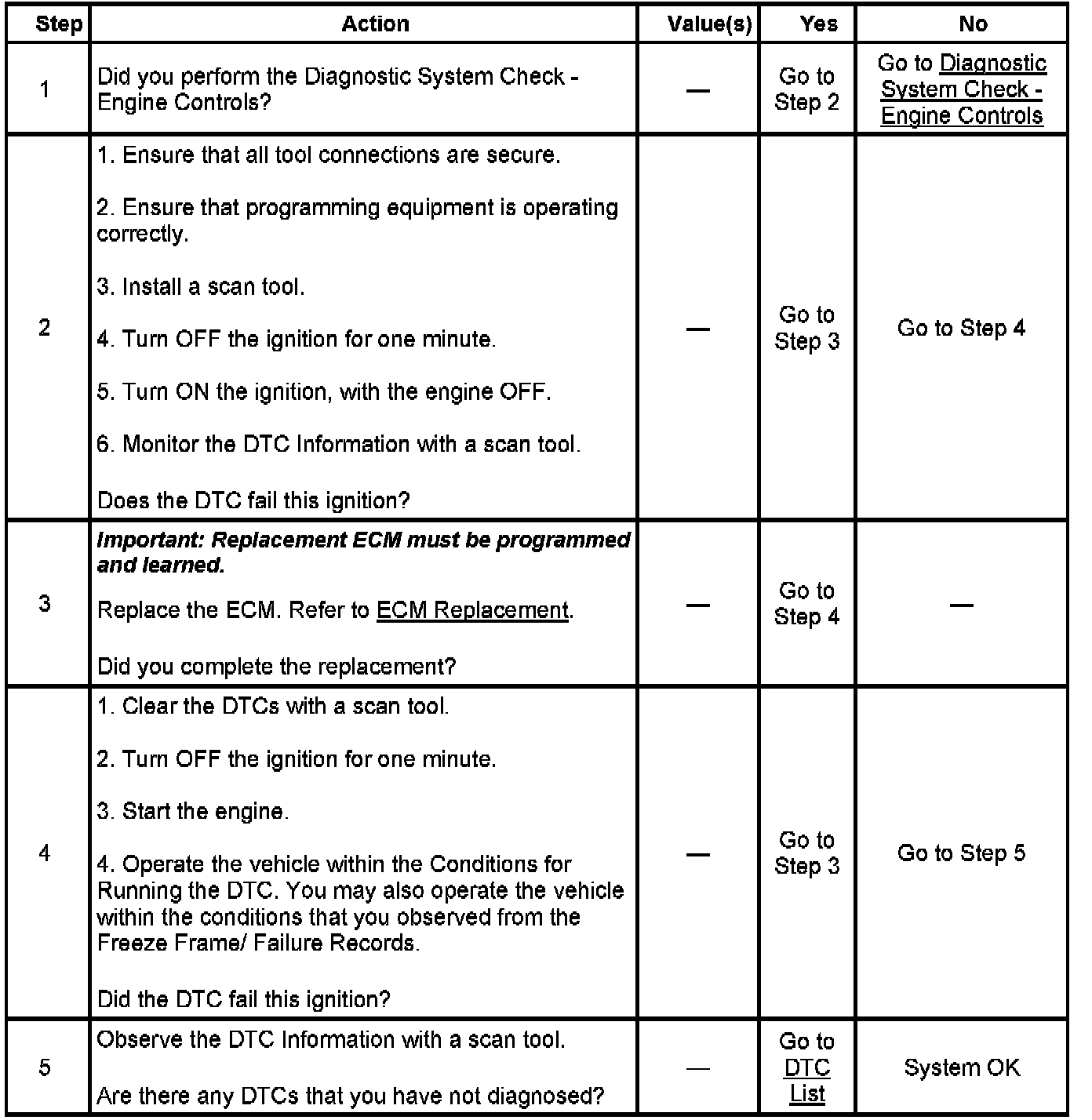

Circuit/System Testing DTC P062F
