Tailgate: Diagrams
Component Connector End Views

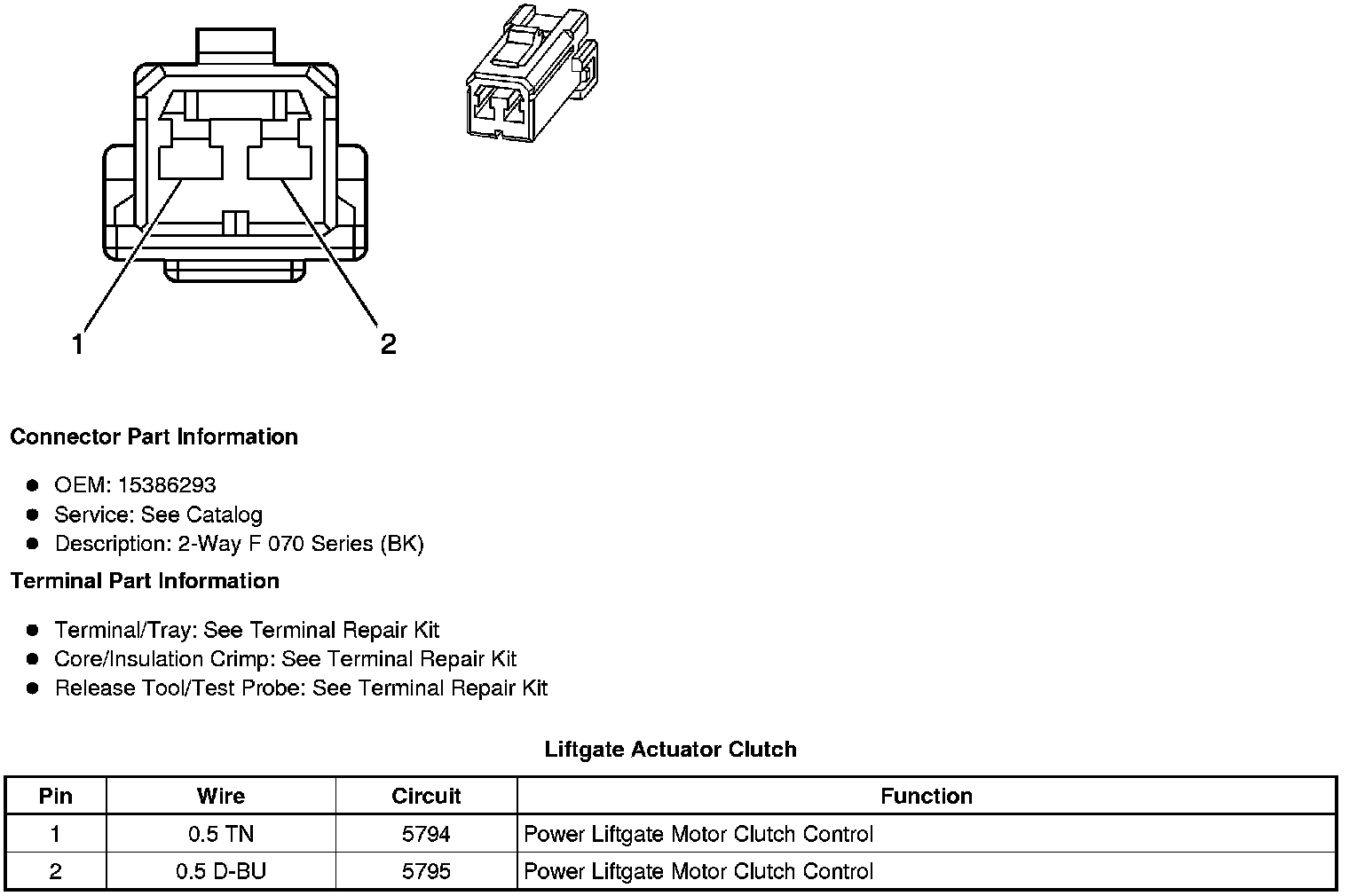

Liftgate Actuator Clutch
Liftgate Actuator Switch

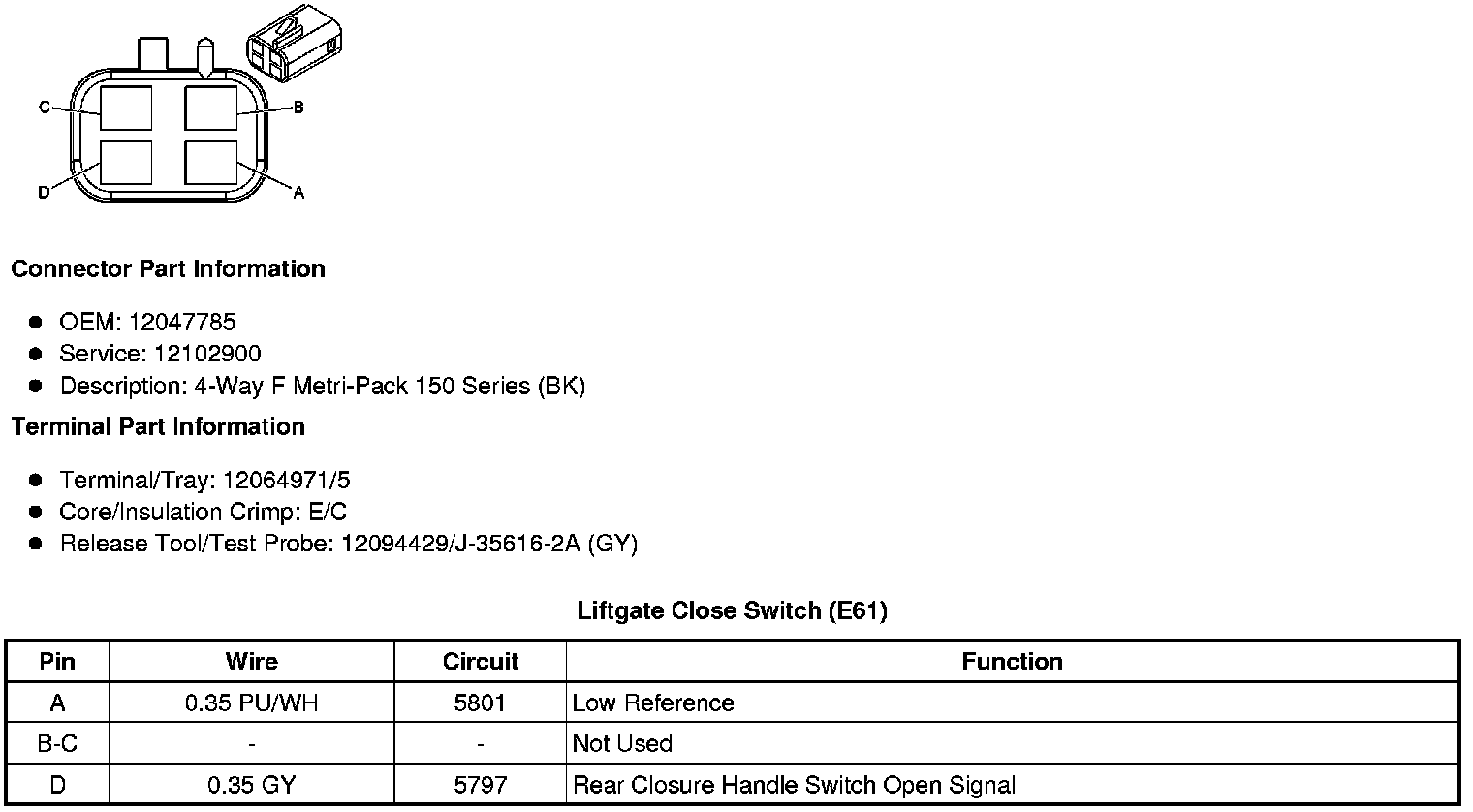

Liftgate Close Switch (E61)

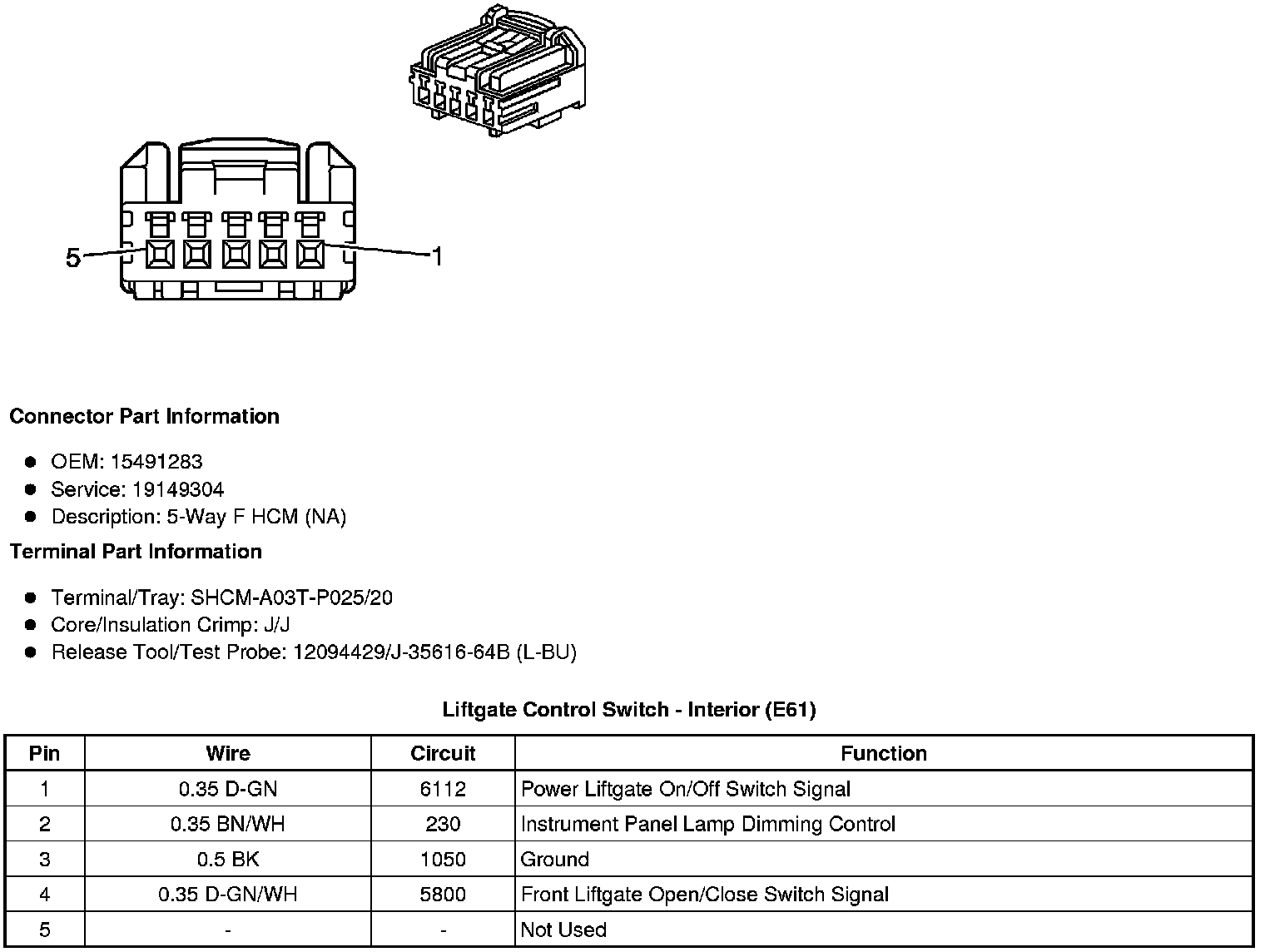

Liftgate Control Switch - Interior (E61)
Liftgate Handle Switch (E52)
Liftgate Latch Assembly (E52 with E61)

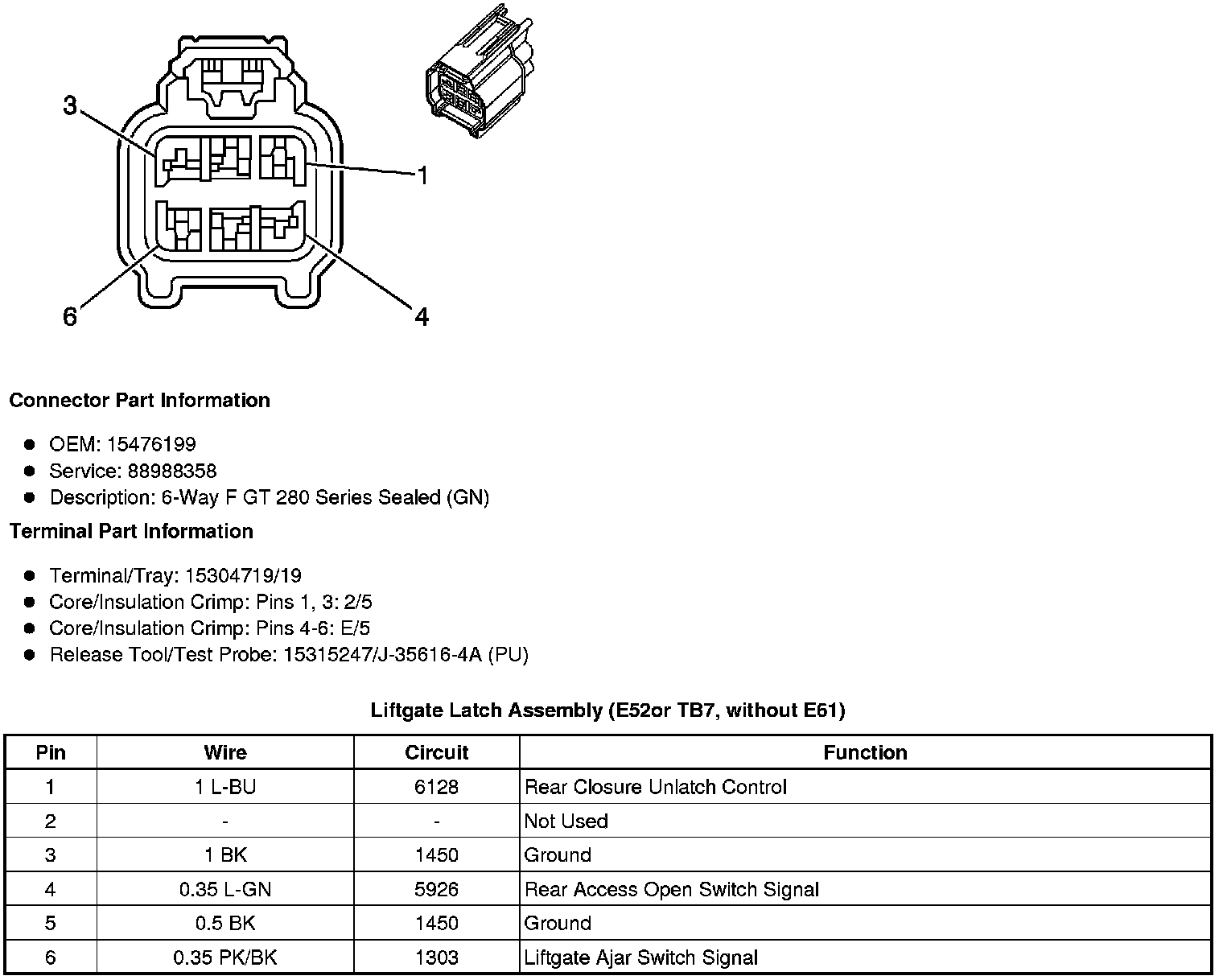

Liftgate Latch Assembly (E52 without E61)

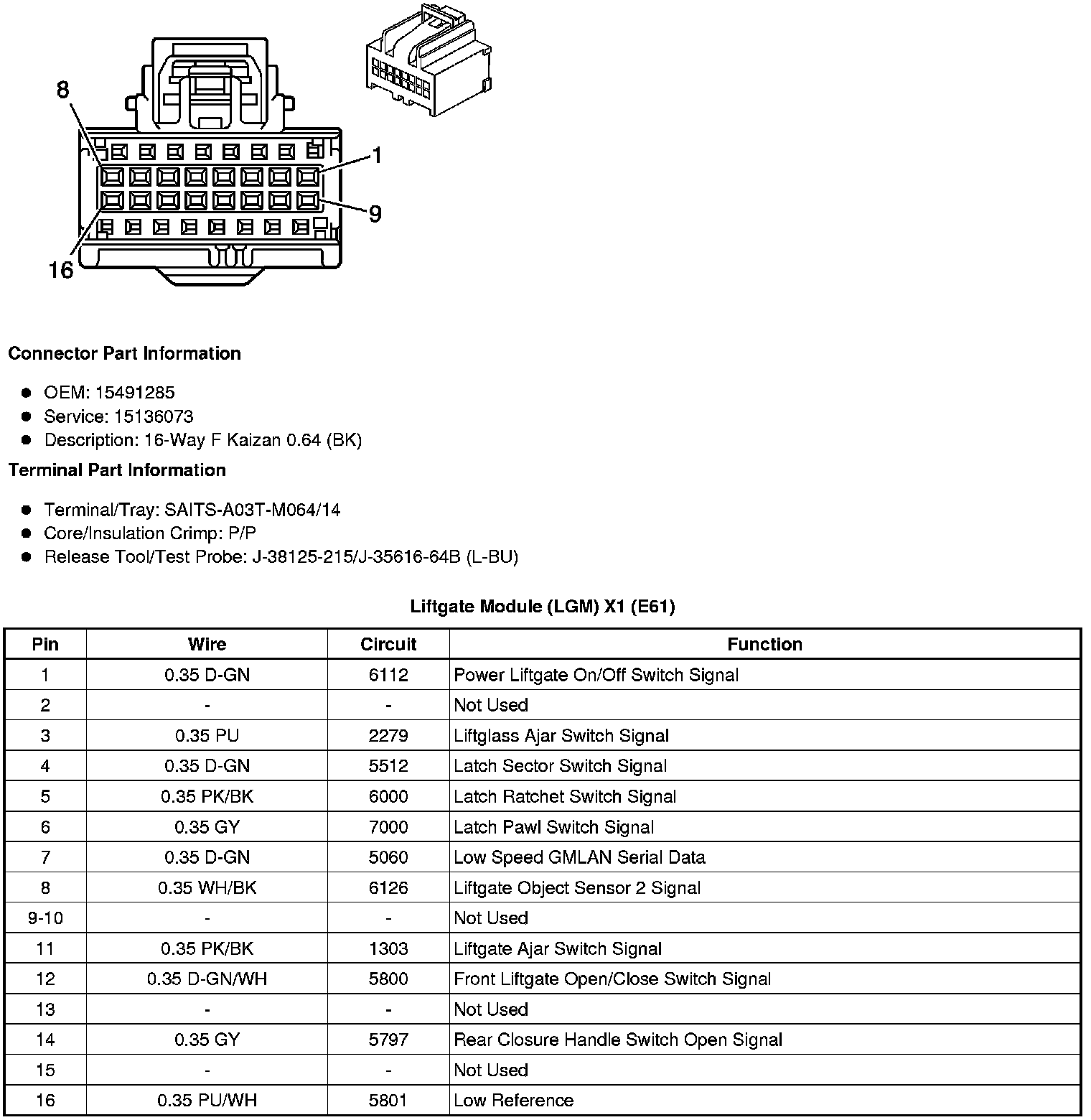

Liftgate Module (LGM) X1 (E61)
Liftgate Module (LGM) X2 (E61)
Liftgate Module (LGM) X3 (E61)

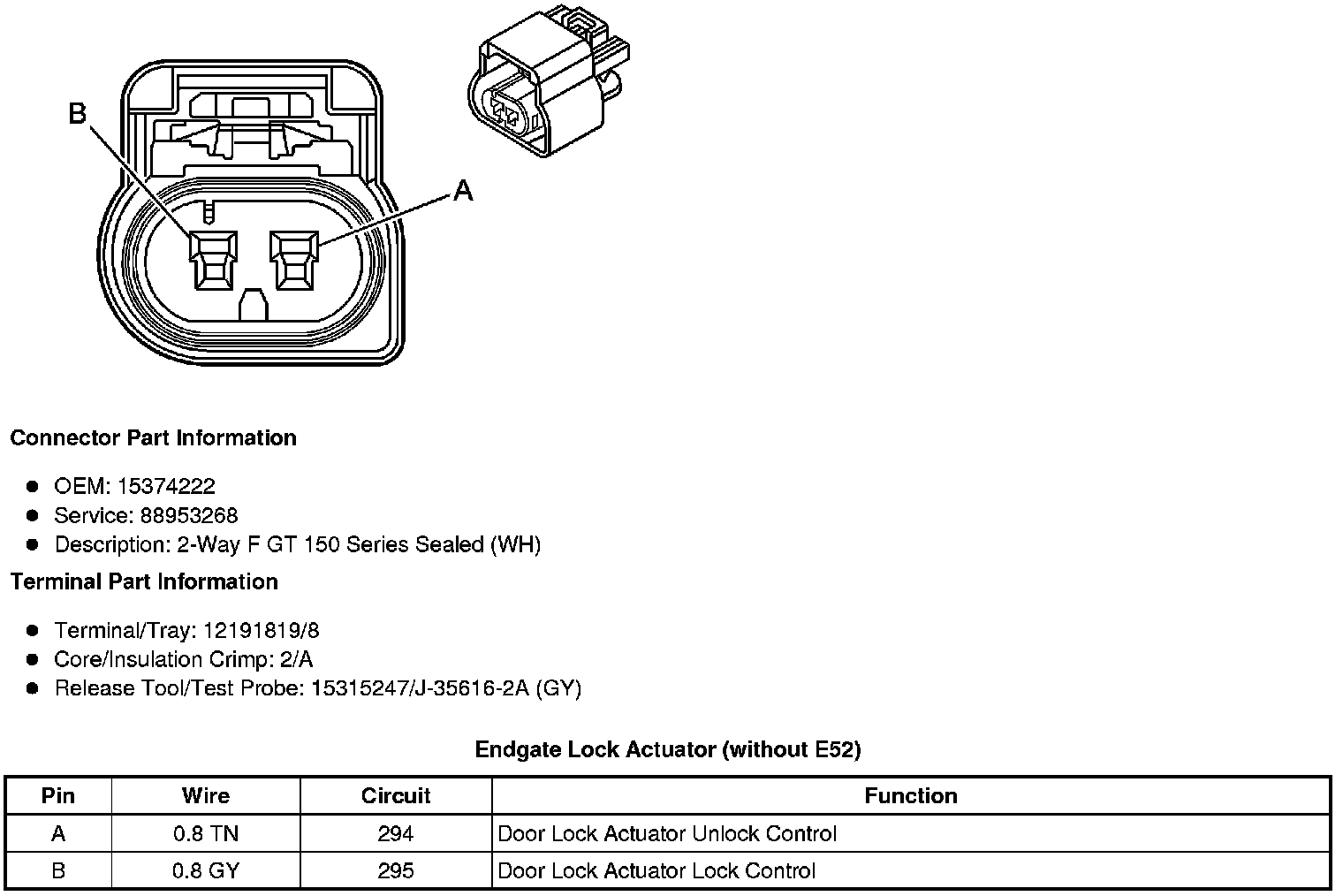

Endgate Lock Actuator (without E52)
