B2623
DTC B2622 or B2623
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.
DTC Descriptor
DTC B2622 00
- Dimming Display Pulse Width Modulation (PWM) Input Circuit Low
DTC B2623 00
- Dimming Display Pulse Width Modulation (PWM) Input Circuit High

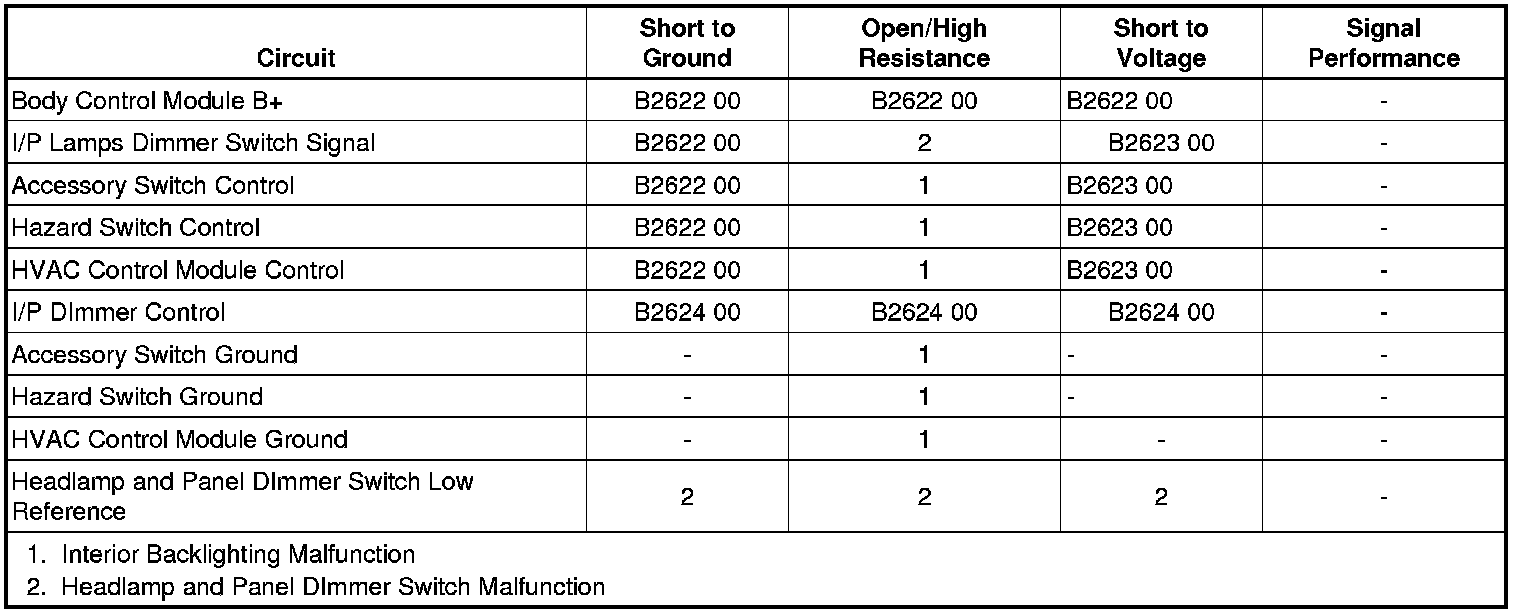

Diagnostic Fault Information
Circuit/System Description
The instrument panel (I/P) lamp dimmer switch is used to increase and decrease the brightness of the interior backlighting components. The I/P dimmer switch provides a voltage signal that will increase as the brightness of the lights are increased and decrease as the brightness of the lights are decreased. The body control module (BCM) provides a low reference signal and a B+ voltage reference to the I/P dimmer switch. When the I/P dimmer switch is placed in the desired position, the dimmed voltage setting is applied from the I/P dimmer switch through the I/P dimmer switch signal circuit to the BCM. The BCM interprets the signal and applies the dimmed voltage to the I/P lamps supply voltage circuit and the interior backlighting components dim to the requested level.
Conditions for Running the DTC
The battery voltage must be between 9-16 volts.
Conditions for Setting the DTC
B2622 00
When the BCM receives an I/P controls illumination lamp request signal and the I/P lamps supply voltage circuit is shorted to ground.
B2623 00
When the BCM is not receiving an I/P controls illumination lamp request signal and the I/P lamps supply voltage circuit is shorted to voltage.
Action Taken When the DTC Sets
The I/P controls illumination lamps will not operate or are always on.
Conditions for Clearing the DTC
* This DTC will clear on current status after the condition for setting the fault is corrected.
* A history DTC will clear after 100 consecutive ignition cycles without a fault present.
Reference Information
Schematic Reference
Interior Lights Dimming Schematics (Interior Lights Dimming Schematics)
Connector End View Reference
Component Connector End Views (Connector Views)
Description and Operation
Interior Lighting Systems Description and Operation (Interior Lighting Systems Description and Operation)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Testing
1. Ignition OFF, disconnect the BCM connector X2.
2. Ignition ON, verify that the following components backlighting is not illuminated.
* Hazard switch
* HVAC control module terminal
* Headlamp switch
• If any of the listed components backlighting is illuminated, test the associated control circuit for a short to voltage.
3. Connect a fused jumper wire from B+ to the following terminals and verify associated backlighting operation.
* Hazard switch A28
* HVAC control module terminal A29
* Headlamp switch A36
• If the jumper fuse opens while connected to any of the listed terminals, test the associated control circuit for a short to ground.
4. If all circuits test normal, replace the BCM.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
Control Module References (Programming and Relearning) for BCM replacement, programming, and setup.
