Condenser HVAC: Service and Repair




Air Conditioning Condenser Replacement

Special Tools

J 39400-A Halogen Leak Detector

Removal Procedure

1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (Refrigerant Recovery and Recharging).
2. Remove the front fascia. Refer to Front Bumper Fascia Replacement (SS) (Front Bumper Fascia Replacement (SS))Front Bumper Fascia Replacement (Torrent) (Front Bumper Fascia Replacement)Front Bumper Fascia Replacement (Equinox) (Front Bumper Fascia Replacement).
3. For Pontiac models, remove the hood latch. Refer to Hood Primary and Secondary Latch Replacement (Equinox) (Service and Repair)Hood Primary and Secondary Latch Replacement (Torrent) (Service and Repair).

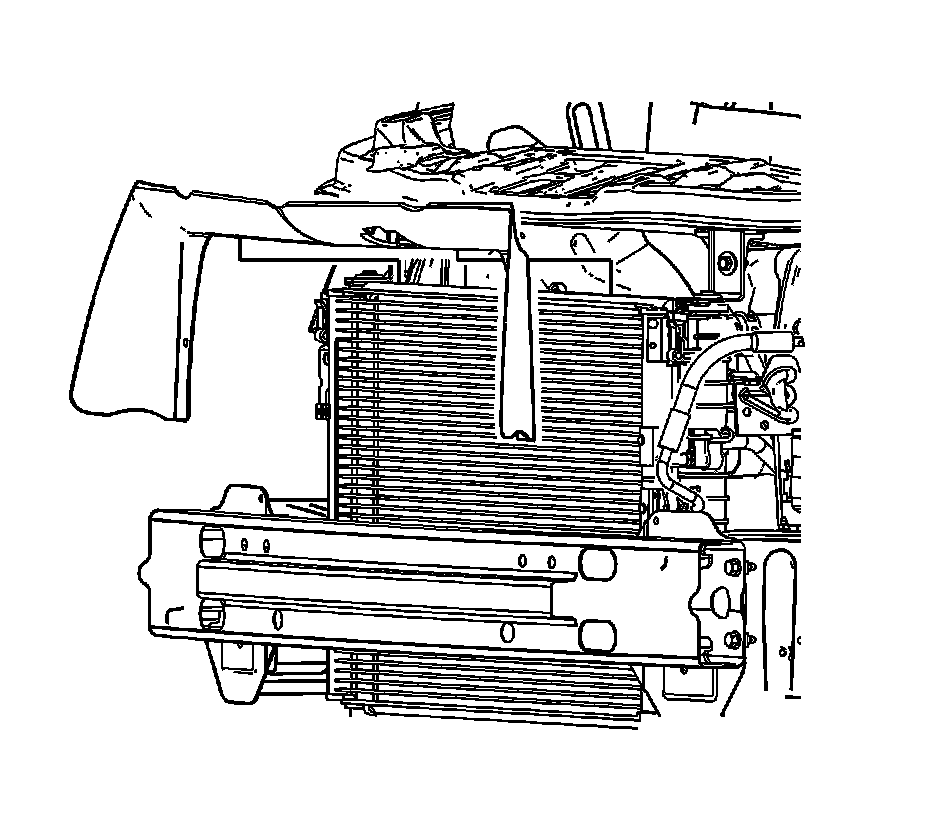

4. Remove the battery box air duct.




5. Remove the condenser radiator fan module (CRFM) closeout panel.

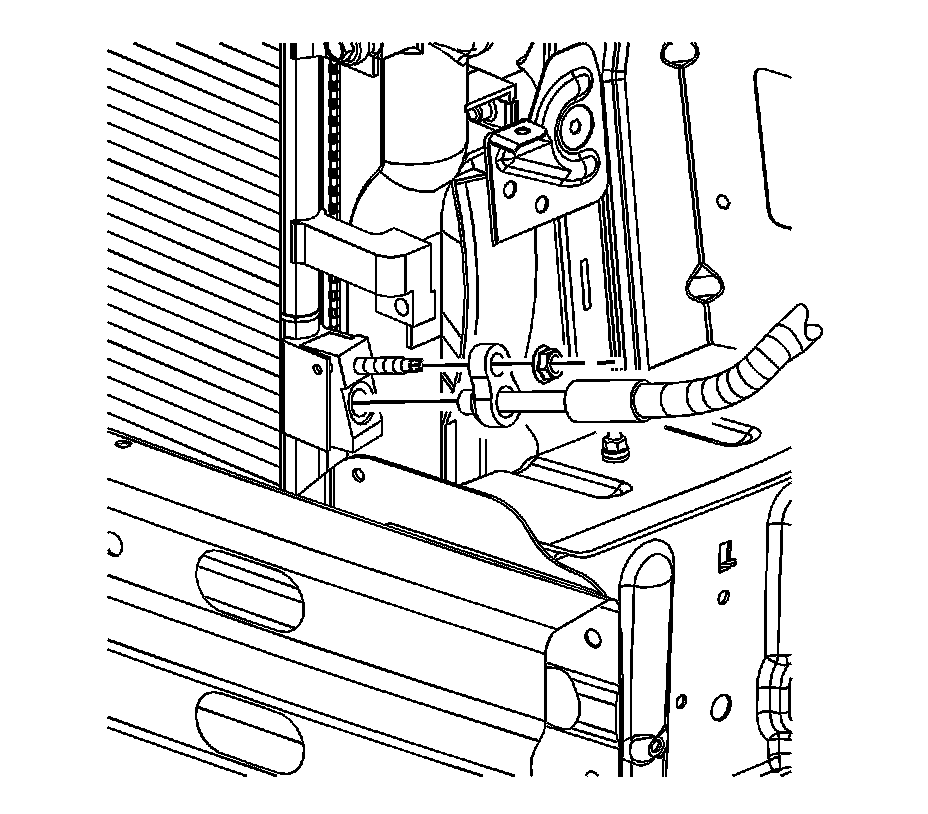

6. Remove the liquid line nut from the condenser.
7. Remove the liquid line from the condenser.
8. Install a protective cap to the liquid line to prevent contamination and desiccant saturation.




9. Remove the compressor hose nut from the condenser.
10. Remove the compressor hose from the condenser.
11. Install a protective cap to the compressor hose to prevent contamination and desiccant saturation.

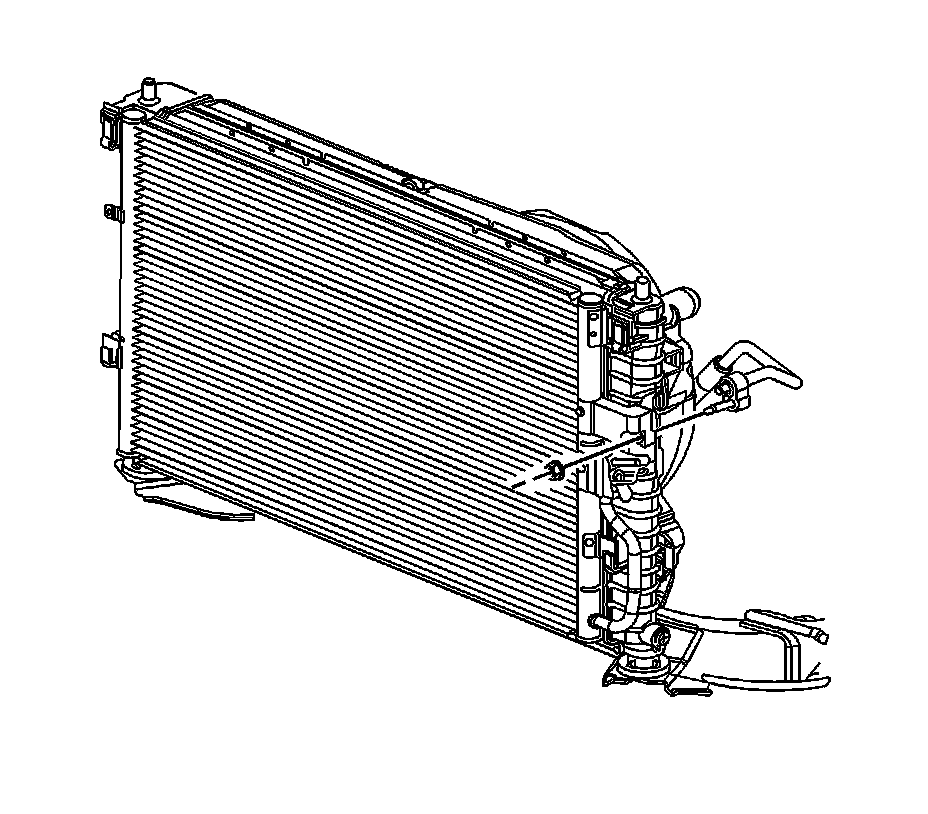

12. Remove the CRFM bracket bolts from the radiator support.
13. Remove the CRFM brackets from the vehicle.

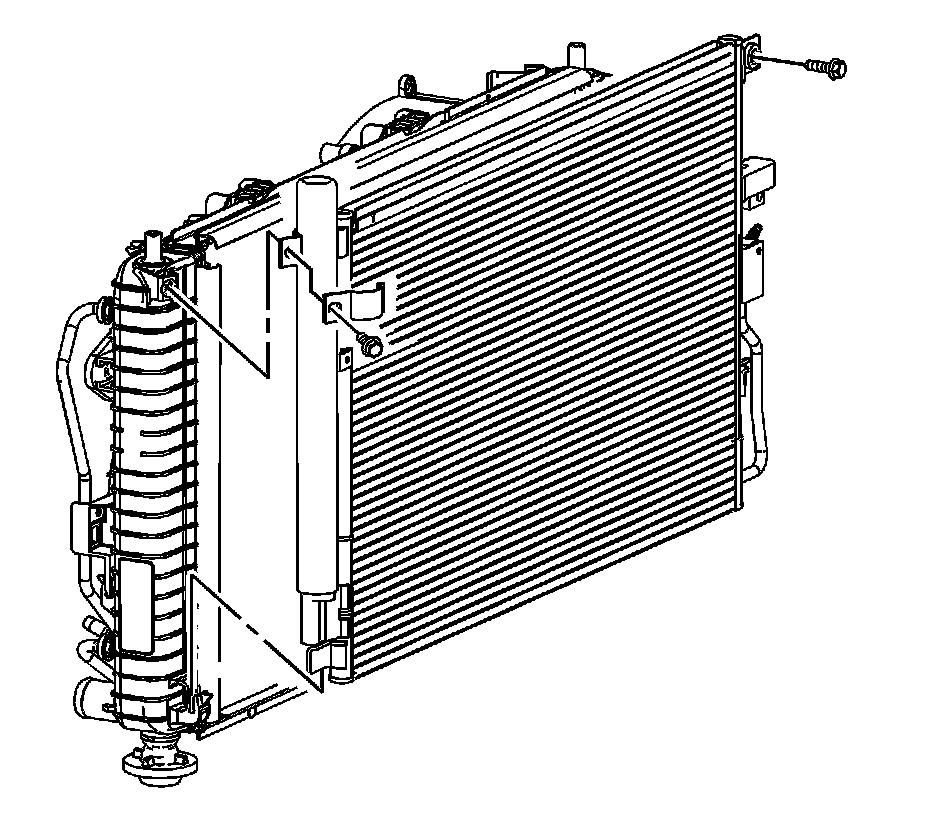

14. Remove the bolts retaining the top of the condenser to the radiator.
15. Remove the condenser from the vehicle.

Installation Procedure




1. Add the specified amount of PAG oil to the condenser. Refer to Refrigerant System Capacities ([1][2]Capacity Specifications).
2. Inspect the radiator to condenser seals for the proper position.
3. Install the condenser to the lower retention clips on the radiator.

Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the bolts to retain the top of the condenser to the radiator.

Tighten the bolts to 9 Nm (80 lb in).




5. Install the CRFM brackets to the vehicle.
6. Install the CRFM bracket bolts to the radiator support.

Tighten the bolts to 20 Nm (15 lb ft).




7. Remove the protective cap from the compressor hose.
8. Install a new sealing washer to the compressor hose. Refer to Sealing Washer Replacement (Sealing Washer Replacement).
9. Install the compressor hose to the condenser.
10. Install compressor hose nut to the condenser.

Tighten the nut to 20 Nm (15 lb ft).




11. Install a new seal washer to the liquid line. Refer to Sealing Washer Replacement (Sealing Washer Replacement).
12. Install the liquid line to the condenser.
13. Install the liquid line nut to the condenser.

Tighten the nut to 20 Nm (15 lb ft).




14. Install the CRFM closeout panel.




15. Install the battery box air duct.
16. For Pontiac models, install the hood latch assembly. Refer to Hood Primary and Secondary Latch Replacement (Equinox) (Service and Repair)Hood Primary and Secondary Latch Replacement (Torrent) (Service and Repair).
17. Install the front fascia. Refer to Front Bumper Fascia Replacement (SS) (Front Bumper Fascia Replacement (SS))Front Bumper Fascia Replacement (Torrent) (Front Bumper Fascia Replacement)Front Bumper Fascia Replacement (Equinox) (Front Bumper Fascia Replacement).
18. Evacuate and charge the A/C system. Refer to Refrigerant Recovery and Recharging (Refrigerant Recovery and Recharging).
19. Test the affected A/C joints leaks using J 39400-A .
