Backup Lamp: Diagrams




Component Connector End Views

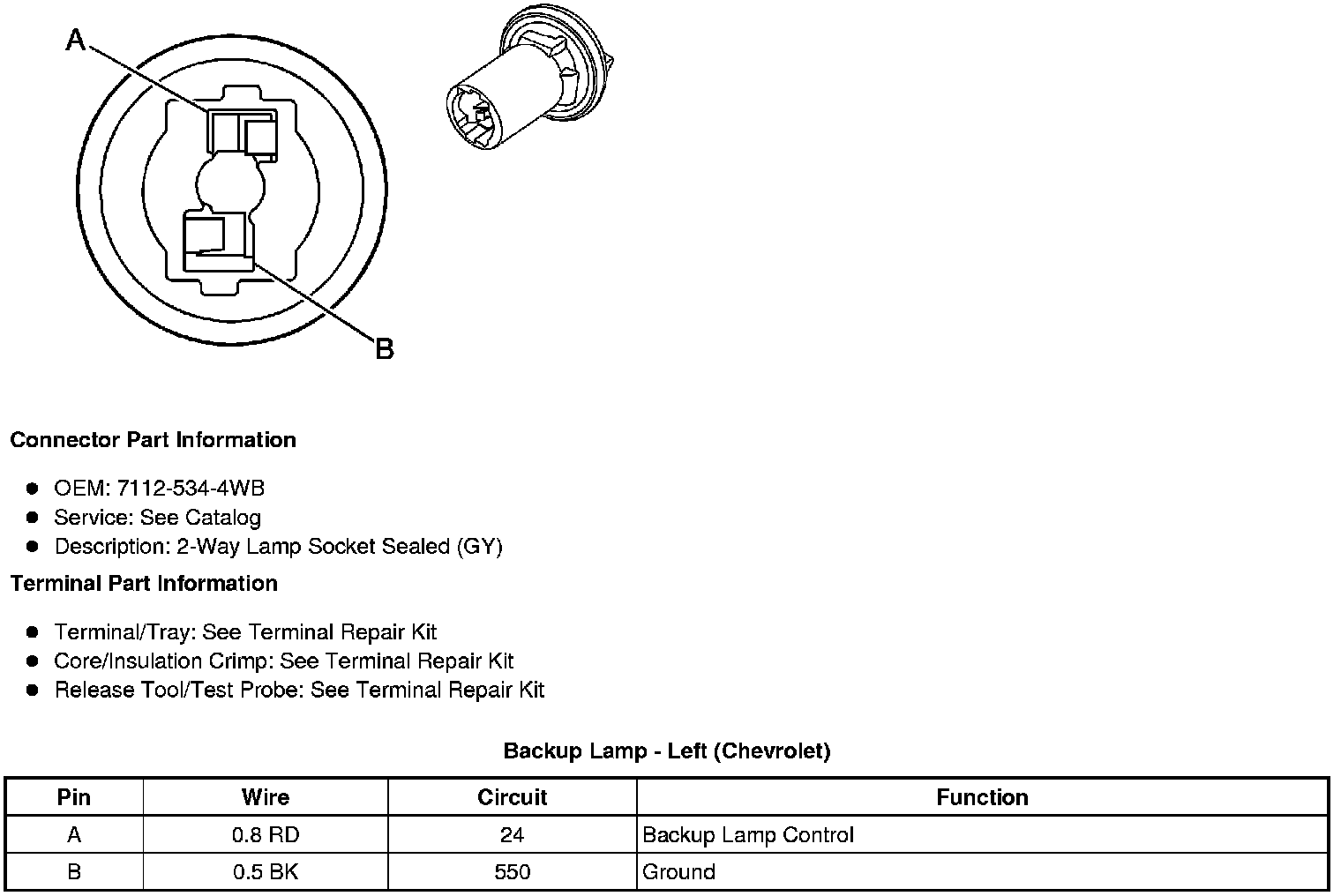

Backup Lamp - Left (Chevrolet)






Backup Lamp - Right (Chevrolet)
