Headlamp
>>
System Diagram
System Diagram
Component Connector End Views

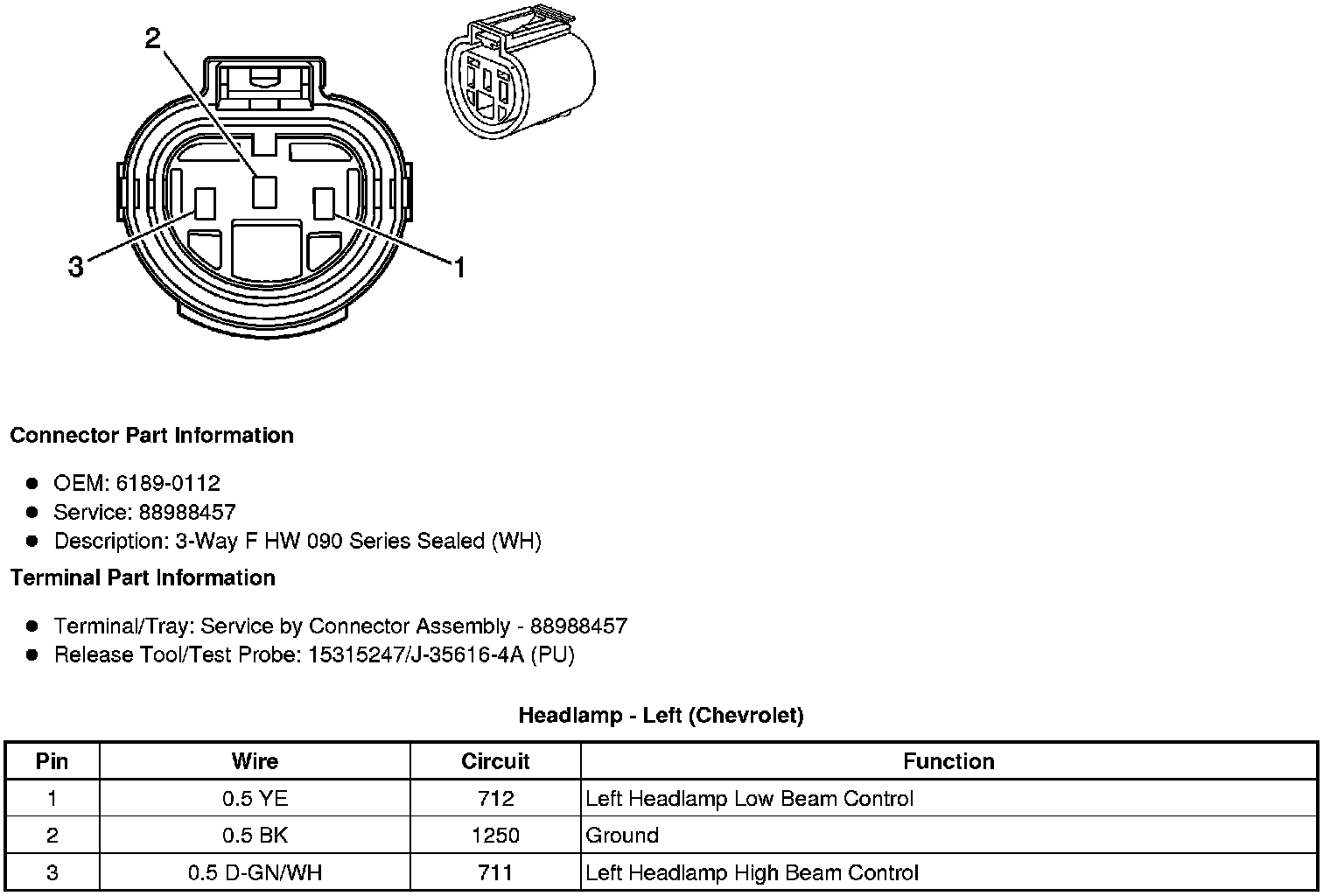

Headlamp
- Left (Chevrolet)

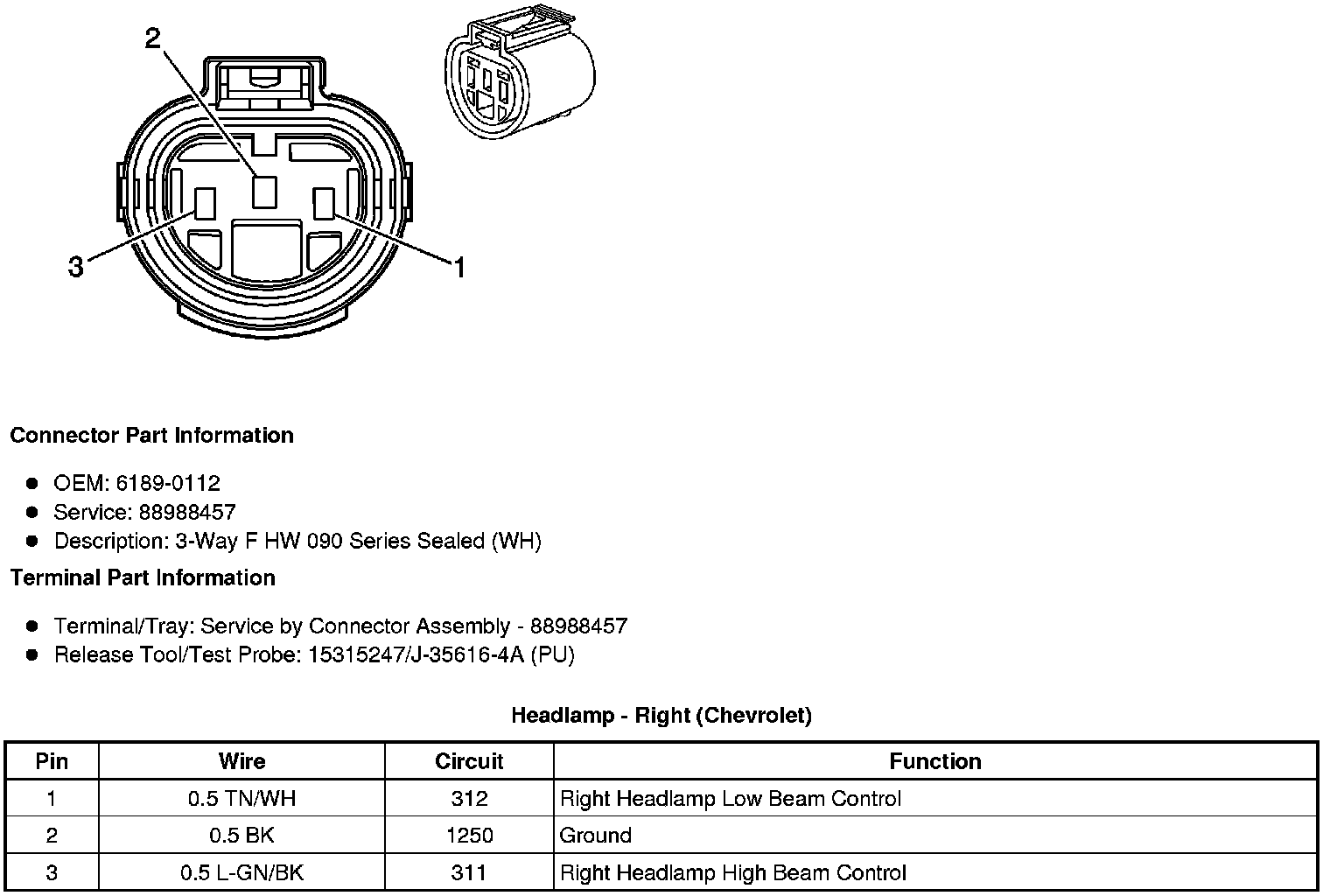

Headlamp
- Right (Chevrolet)
