Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2009
>>
HHR L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Parking Brake System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

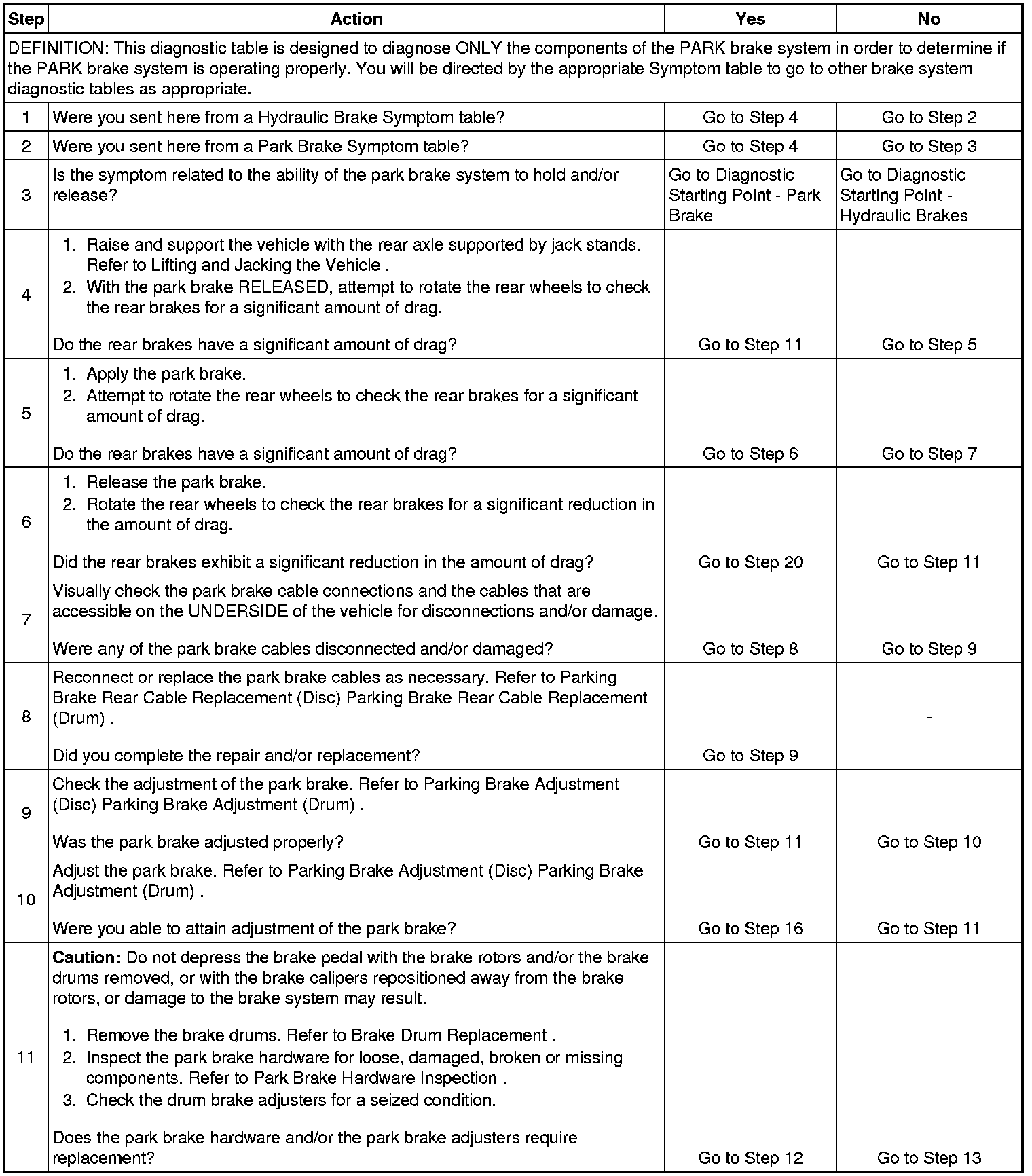

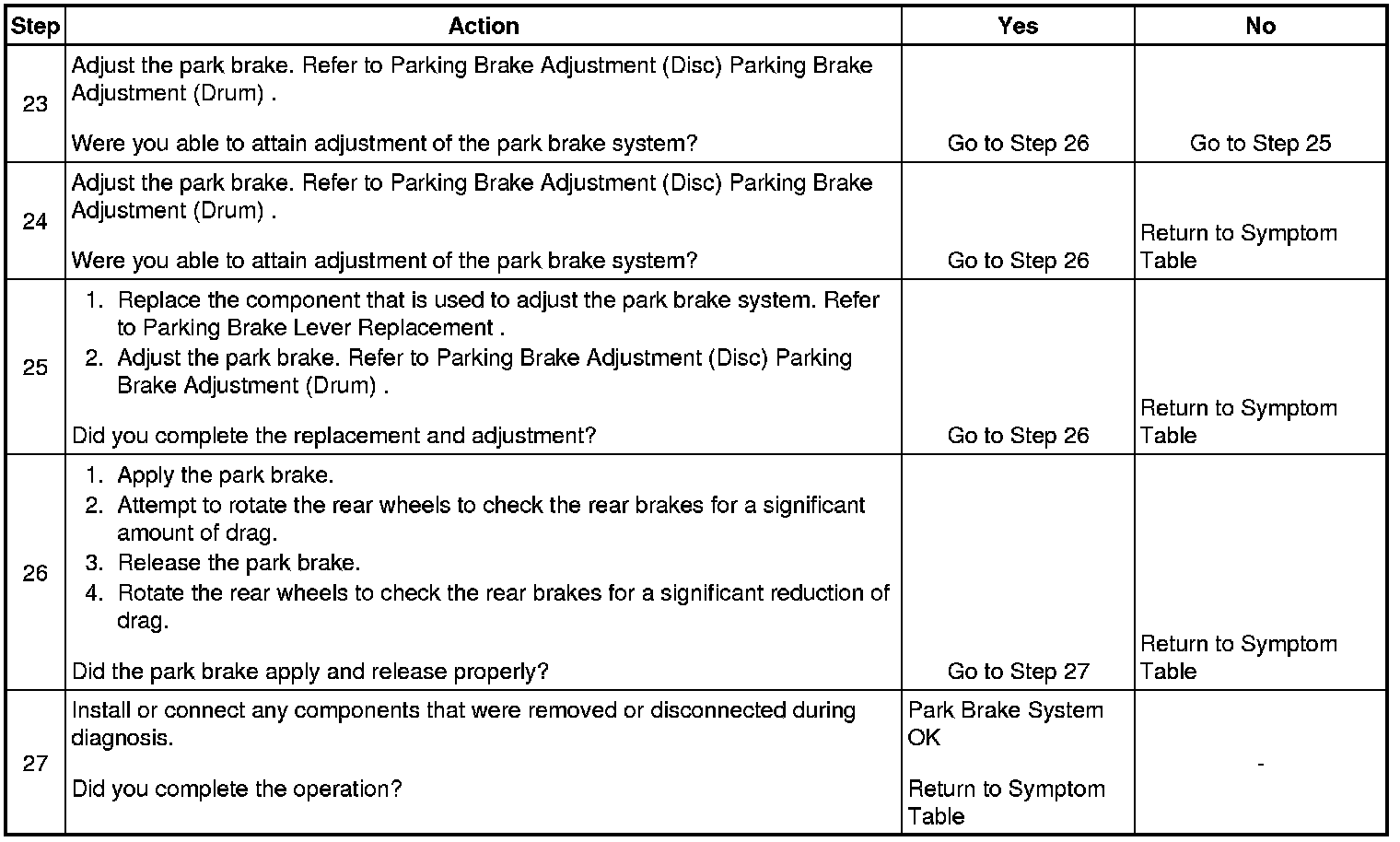

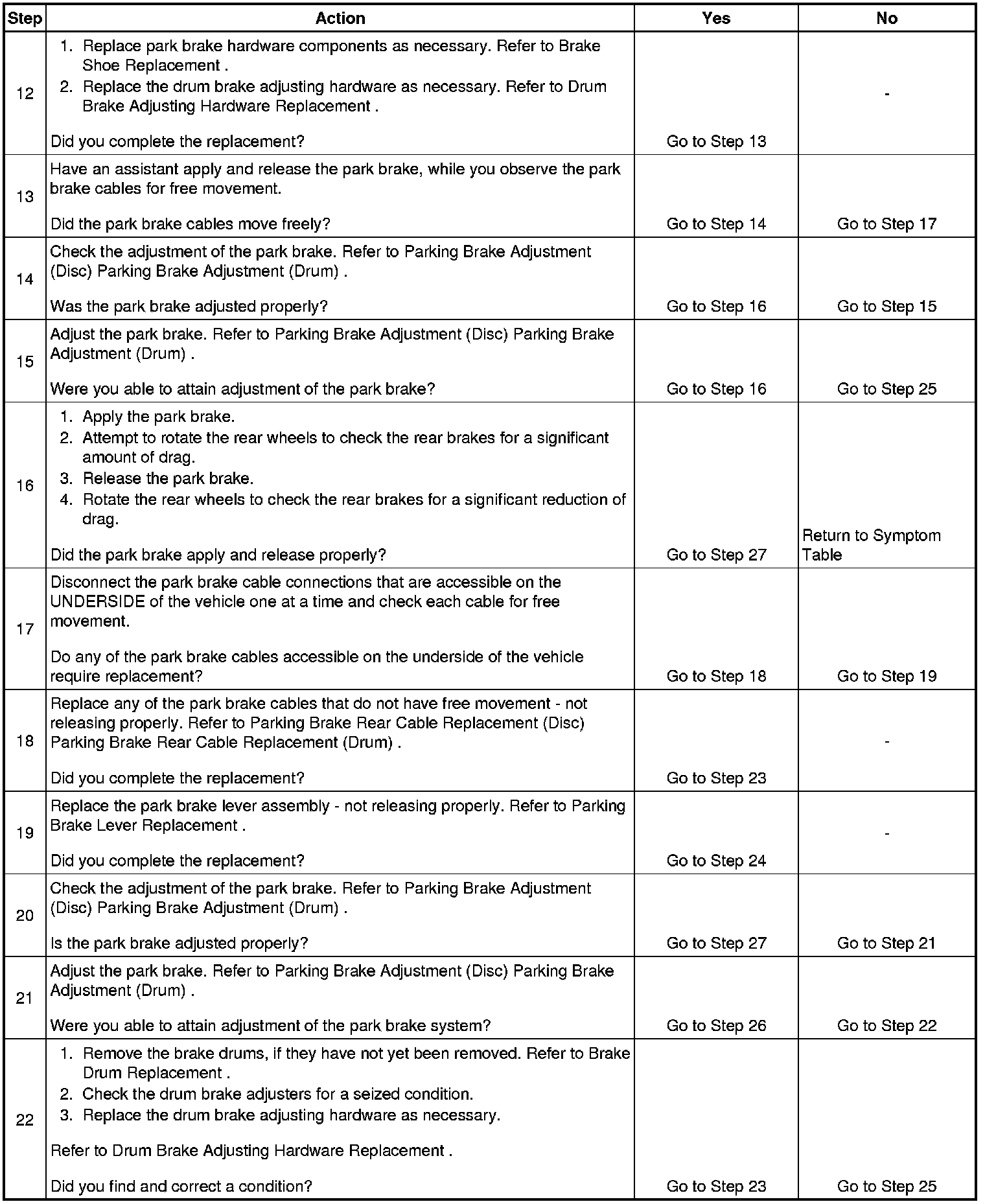

Park Brake System Diagnosis (Drum)
Park Brake System Diagnosis (Drum)
Park Brake System Diagnosis (Drum)
