Connector Views




Component Connector End Views

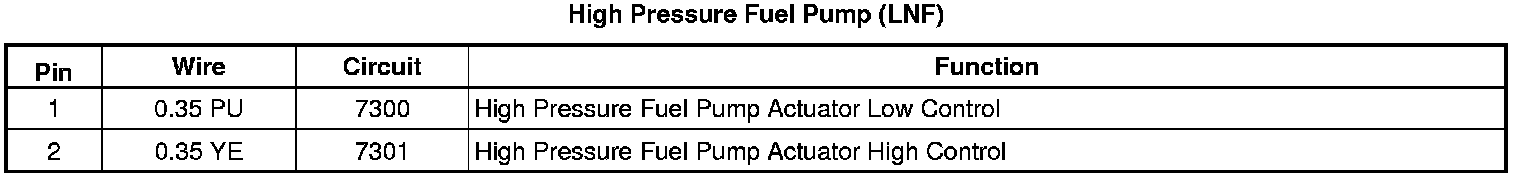

High Pressure Fuel Pump (LNF)

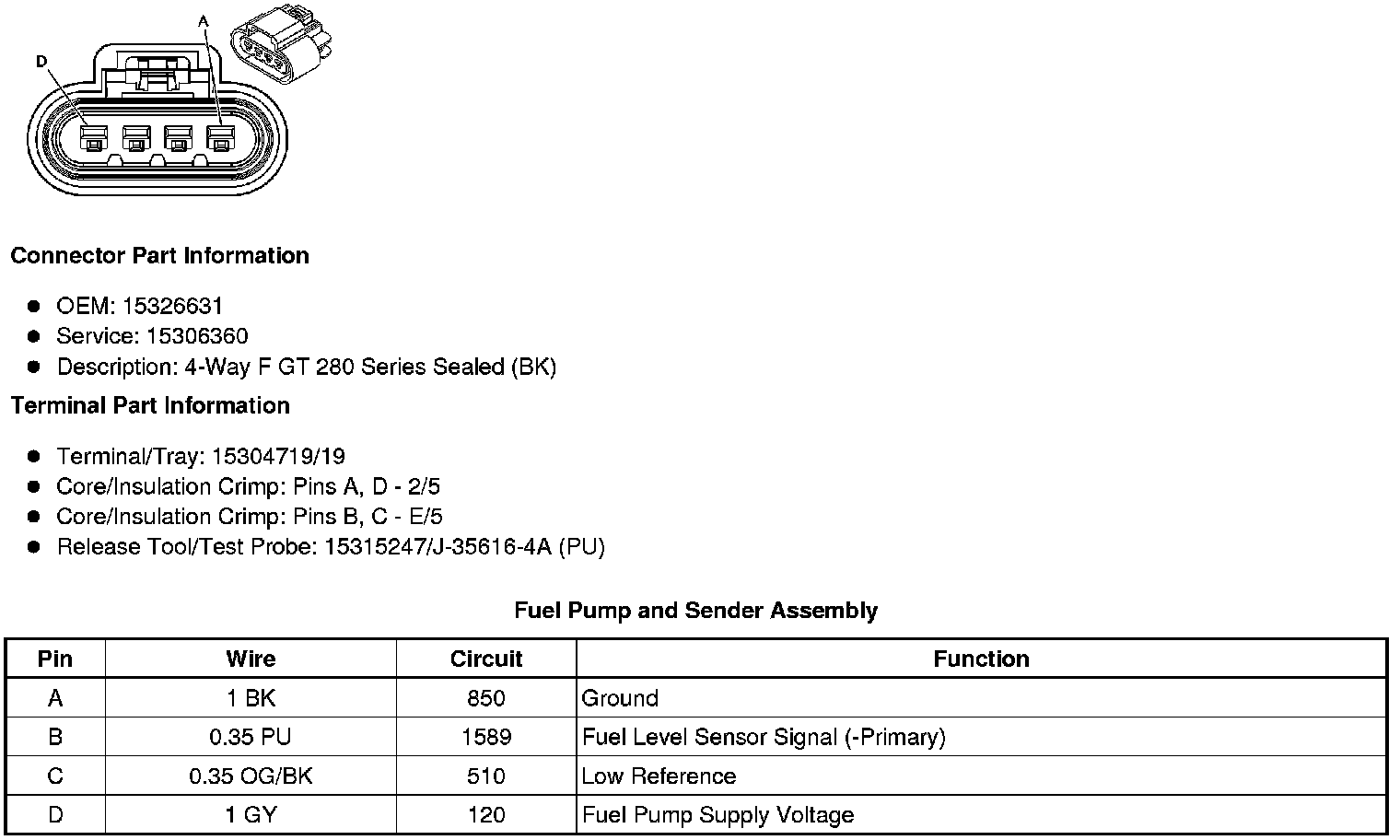

Fuel Pump and Sender Assembly
