Pressure Regulating Solenoid: Diagrams




Component Connector End Views

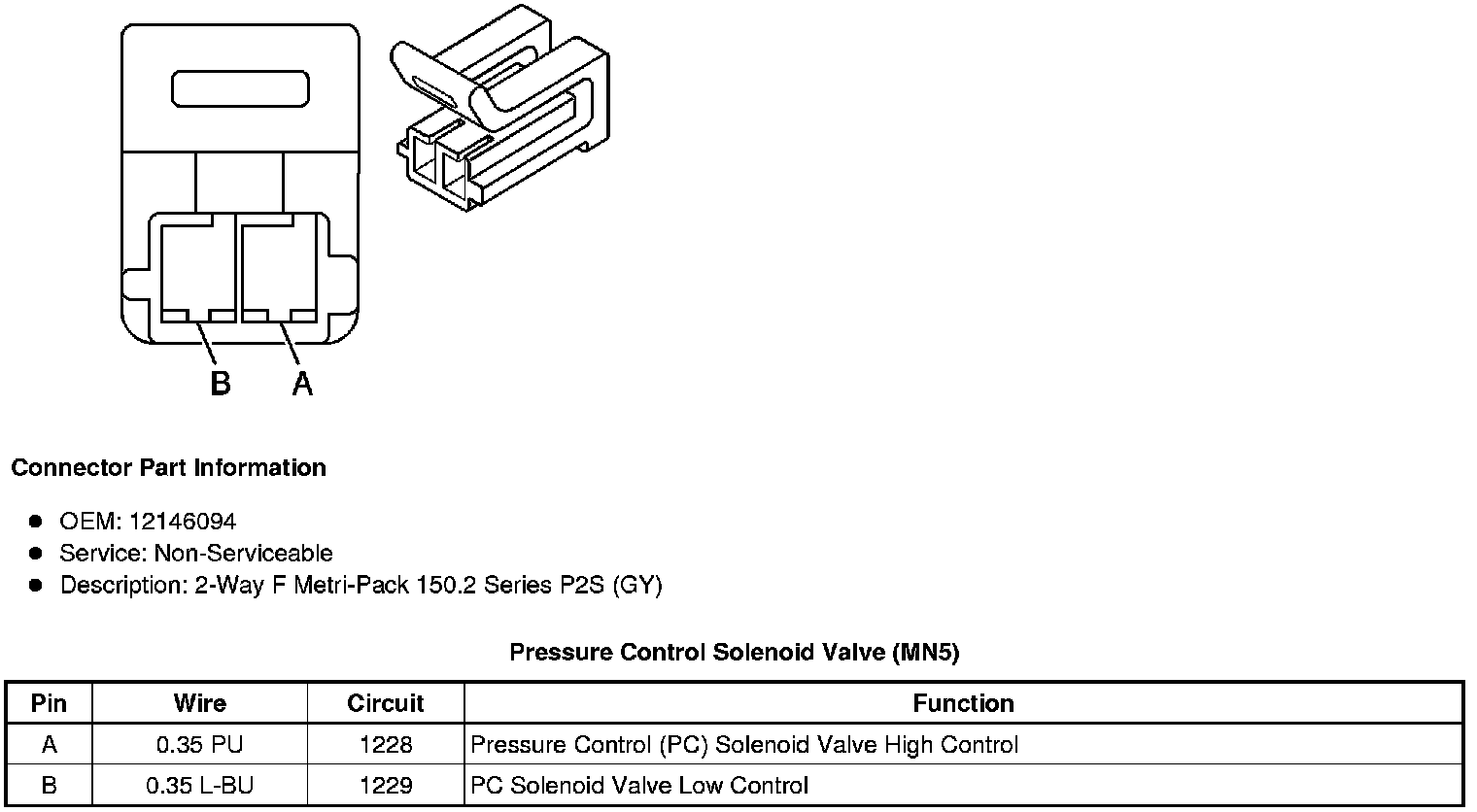

Pressure Control Solenoid Valve (MN5)

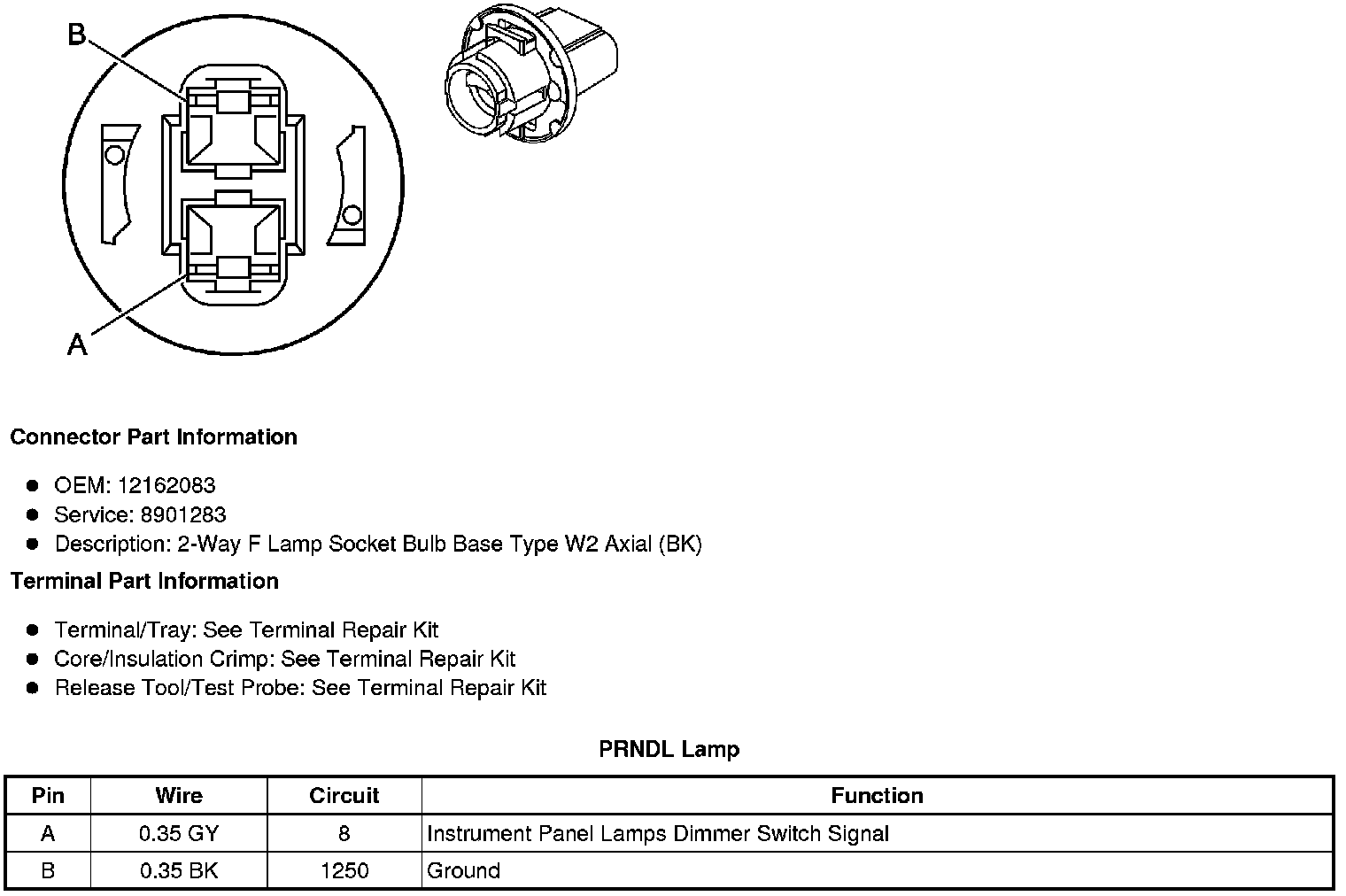

PRNDL Lamp
