Cabin Ventilation Grille: Service and Repair

Pressure Relief Valve Replacement

Removal Procedure

1. Remove the rear window lower garnish molding. Refer to Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/A48) (Service and Repair)Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/o A48) (Service and Repair)Rear Window Lower Garnish Molding Replacement (Regular Cab) (Service and Repair)
2. Remove the body lock pillar trim. Refer to Body Lock Pillar Trim Replacement (Crew Cab) (Service and Repair)Body Lock Pillar Trim Replacement (Extended Cab) (Service and Repair)Body Lock Pillar Trim Replacement (Regular Cab) (Service and Repair)

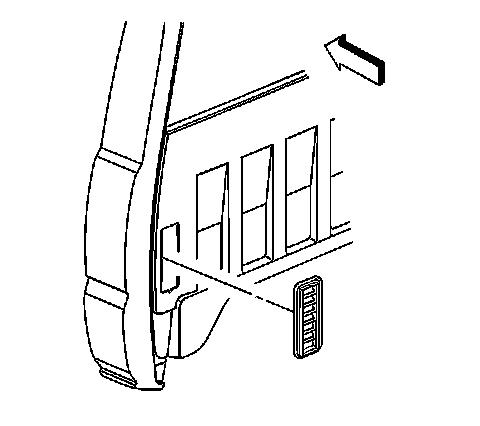

3. Pull back carpeting on the rear wall of the cab exposing the pressure relief valve.




4. Press on the retaining tab on the top downward to release the valve from the cab back panel.
5. Remove the pressure relief valve from the vehicle.



Installation Procedure





1. Align the pressure relief valve into the opening of the rear cab.
2. Press the pressure relief valve into the cab back panel until the locking tabs are fully seated.
3. Realign carpeting on the rear wall of the cab to lay flat.
4. Install the body lock pillar trim. Refer to Body Lock Pillar Trim Replacement (Crew Cab) (Service and Repair)Body Lock Pillar Trim Replacement (Extended Cab) (Service and Repair)Body Lock Pillar Trim Replacement (Regular Cab) (Service and Repair)
5. Install the rear window lower garnish molding. Refer to Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/A48) (Service and Repair)Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/o A48) (Service and Repair)Rear Window Lower Garnish Molding Replacement (Regular Cab) (Service and Repair)
