Transmission End Play Check

Transmission End Play Check


Special Tools
* J 8001 - Dial Indicator Set
* J 24773-A - Oil Pump Remover
* J 25022 - End Play Fixture Adapter
* J 25025-7A - Dial Indicator Post
* J 34725 - End Play Checking Adapter
* J 43205 - End Play Fixture Adapter (300 mm)








Note

Torque converter size is model dependent.

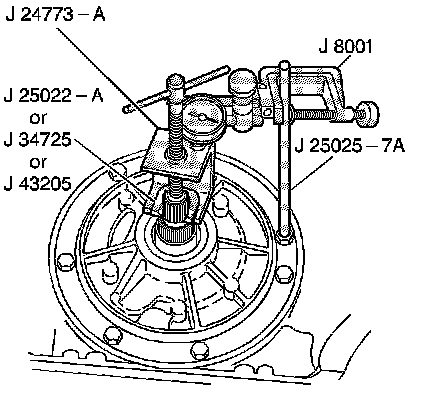

1. Install an end play fixture adapter.

* UseJ 25022 - adapter for a 245 mm and 258 mm turbine shaft (1).
* UseJ 34725 - checking adapter for a 298 mm turbine shaft (2).
* UseJ 43205 - fixture adapter (300 mm) for a 300 mm turbine shaft (3).





2. Install the J 24773-A - pump remover .




3. Remove an oil pump bolt.
4. InstallJ 25025-7A - dial indicator post (or a 278 mm or 11 in bolt) and lock nut.
5. InstallJ 8001 - dial indicator set .




6. Set the J 8001 - dial indicator set to zero.
7. Pull up onJ 24773-A - pump remover .
Proper end play should be 0.13-0.92 mm (0.005-0.036 in).
8. The selective washer (616), which controls the end play, is located between the input housing (621) and the thrust bearing (615) on the oil pump hub.
If the end play measurement is incorrect, refer to the tableEnd Play Specifications (End Play Specifications) . Choose a new selective washer (616) based on the original selective washer and the information contained in the table.
If the dial indicator shows no end play, the selective washer (616) and thrust bearing (615) may have been misassembled.
9. Correct the end play by changing the selective washer (616).
