Control Valve Body Locating Pin Replacement

Control Valve Body Locating Pin Replacement

Special Tools

J 43779 - Locating Pin Installer

For equivalent regional tools, refer toSpecial Tools (Tools and Equipment) .






Caution: DO NOT mar the main valve body surface when installing the locating pin(s). Tap gently on the locating pin installer tool. Heavy or continued hammering will damage the transmission case surface.





Note

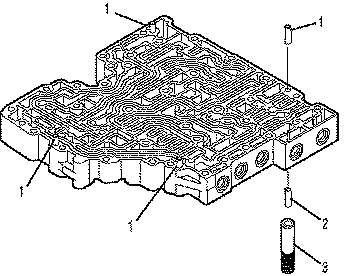

The main valve body has 5 locating pins that can be replaced. Do not replace a locating pin unless the pin is damaged.

1. Remove the locating pin from the main valve body.
2. Place a new locating pin intoJ 43779 - installer (3).
3. InstallJ 43779 - installer with the locating pin into the locating pin hole.
4. Gently tapJ 43779 - installer untilJ 43779 - installer touches the main housing surface.

The locating pin installed height is 10.7-11.3 mm (0.42-0.44 in) above the main valve body surface.
