Exhaust Temperature Sensor
Exhaust Temperature Sensor
Component Connector End Views
Exhaust Temperature Sensor
1 (Diesel)

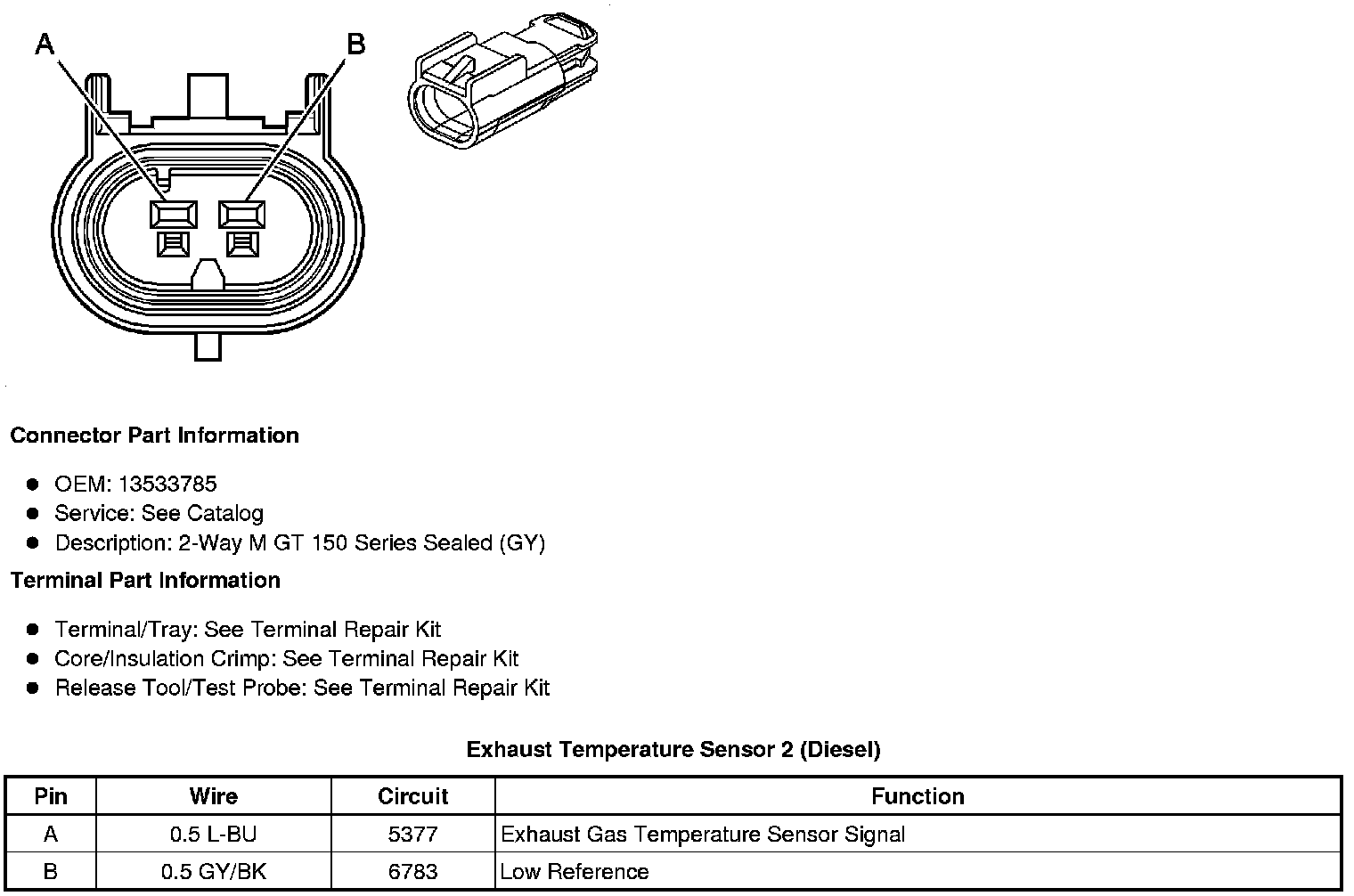

Exhaust Temperature Sensor
2 (Diesel)
