Blower Motor: Diagrams



Component Connector End Views

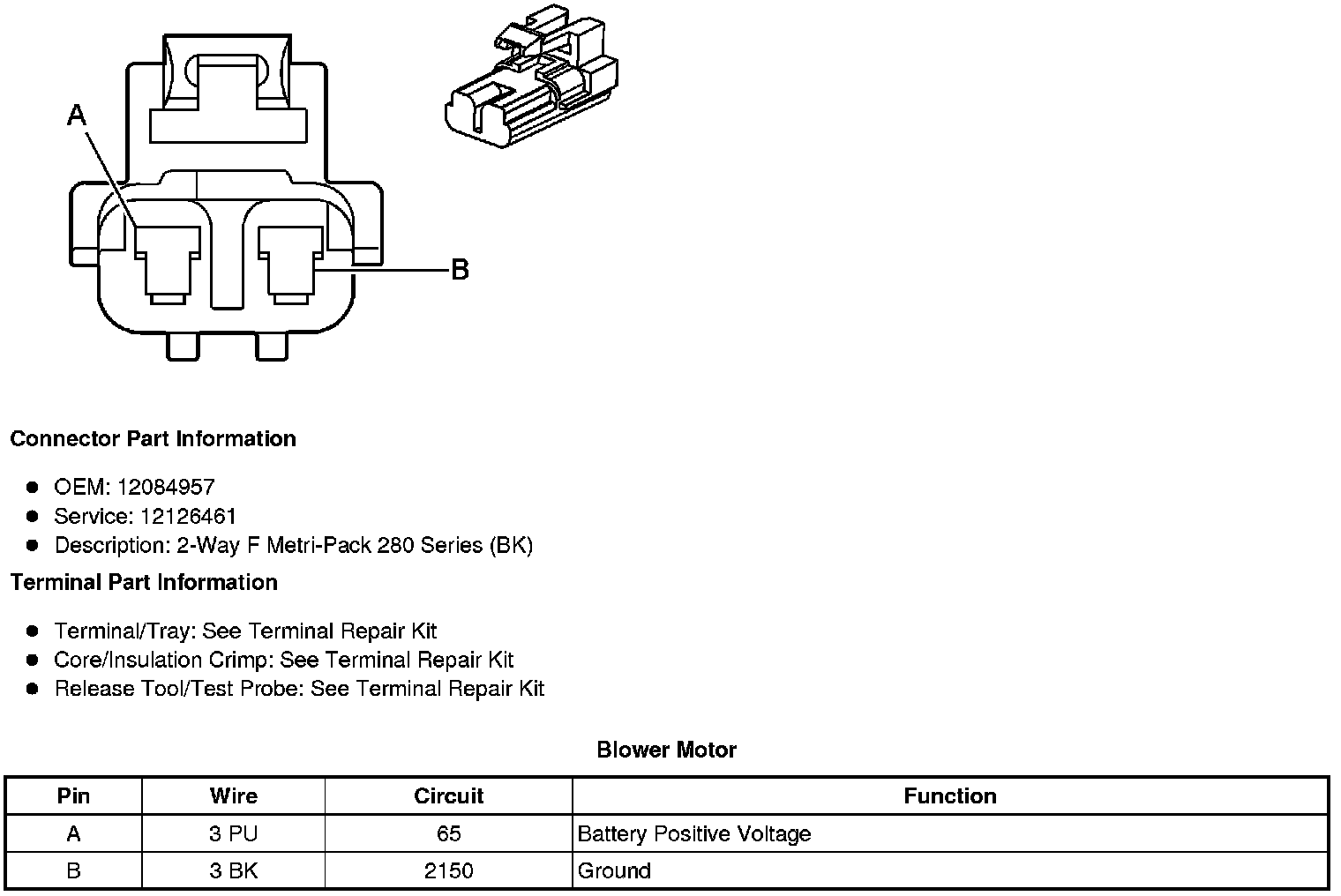

Blower Motor

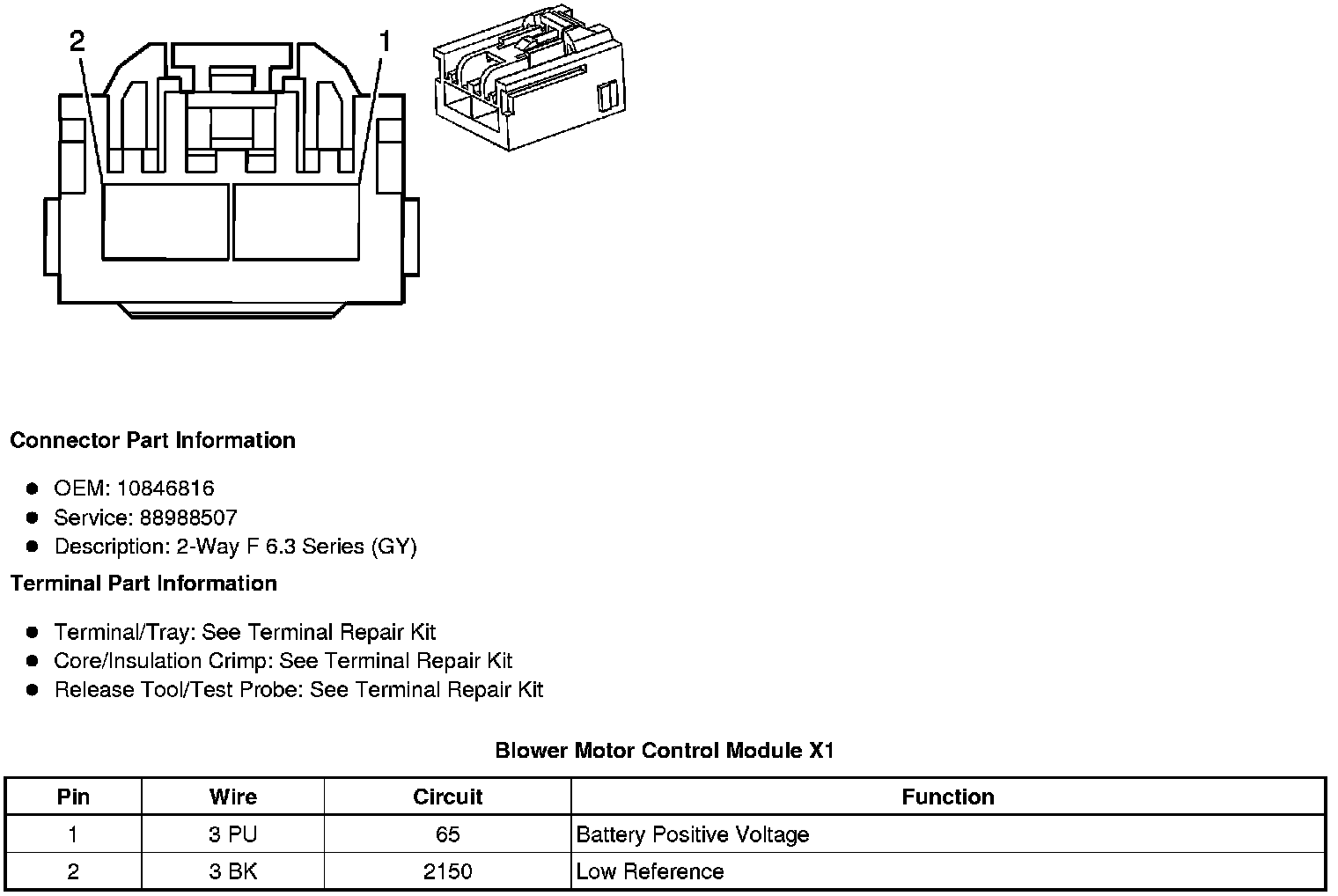

Blower Motor Control Module X1






Blower Motor Control Module X2
