Antilock Brake System
DTC C0880, C12E5, or C120F
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (with HP2) (Initial Inspection and Diagnostic Overview)Diagnostic System Check - Vehicle (without HP2) (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.
DTC Descriptors
DTC C0880 00
- Device Voltage Reference Output Circuit
DTC C12E5
- Device Voltage Reference Output Circuit
DTC C0880 02
- Device Voltage Reference Output Circuit Short to Ground
DTC C120F
- Device Voltage Reference Output Circuit Short to Ground

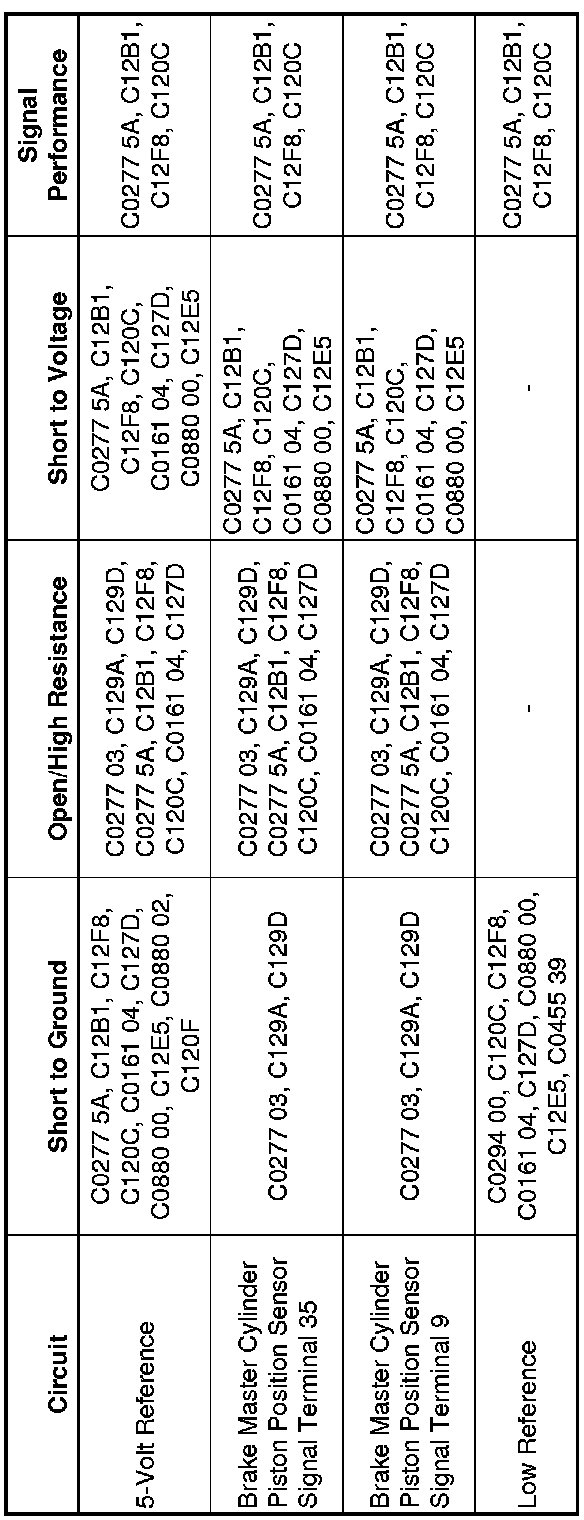

Diagnostic Fault Information
Circuit/System Description
The electronic brake control module (EBCM) supplies a shared 5 volt reference to the brake master cylinder piston position sensor, steering angle sensor and brake master cylinder piston position sensor.
Conditions for Running the DTC
* Ignition ON.
* The ignition voltage is greater than 10 volts.
Conditions for Setting the DTC
The EBCM detects the voltage on the 5 volt reference circuit to the brake master cylinder piston position sensor, steering angle sensor and brake master cylinder piston position sensor is less than 4.8 volts or greater than 5.2 volts.
Action Taken When the DTC Sets
* The EBCM disables the antilock brake system (ABS), traction control and the vehicle stability enhancement system (VSES) for the duration of the ignition cycle.
* A DIC message and/or a warning indicator may be displayed.
Conditions for Clearing the DTC
* The condition for the DTC is no longer present.
* The EBCM clears the history DTC when a current DTC is not detected in 40 consecutive drive cycles.
Reference Information
Schematic Reference
Antilock Brake System Schematics (Electrical Diagrams)
Connector End View Reference
Component Connector End Views (Connector Views)
Description and Operation
ABS Description and Operation (Description and Operation)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Testing
1. Verify DTC C0455 is not set.
• If DTC is set, refer to DTC C0455 (C0455).
2. Verify DTC C0277 is not set.
• If DTC is set, refer to DTC C0277, C120C, C129A, C129B, C129D, C129E, C12B1, or C12F8 (C0277).
3. Ignition OFF, disconnect the harness connector at the electronic brake control position sensor.
4. Ignition ON, test for 4.8-5.2 volts between the 5-volt reference circuit terminal 1 and ground.
• If less than the specified range, test the 5-volt reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the EBCM.
• If greater than the specified range, test the 5-volt reference circuit for a short to voltage. If the circuit tests normal, replace the EBCM.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
Control Module References (Programming and Relearning) for EBCM replacement, setup, and programming
