B2625

DTC B2625

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

DTC Descriptor
DTC B2625 00

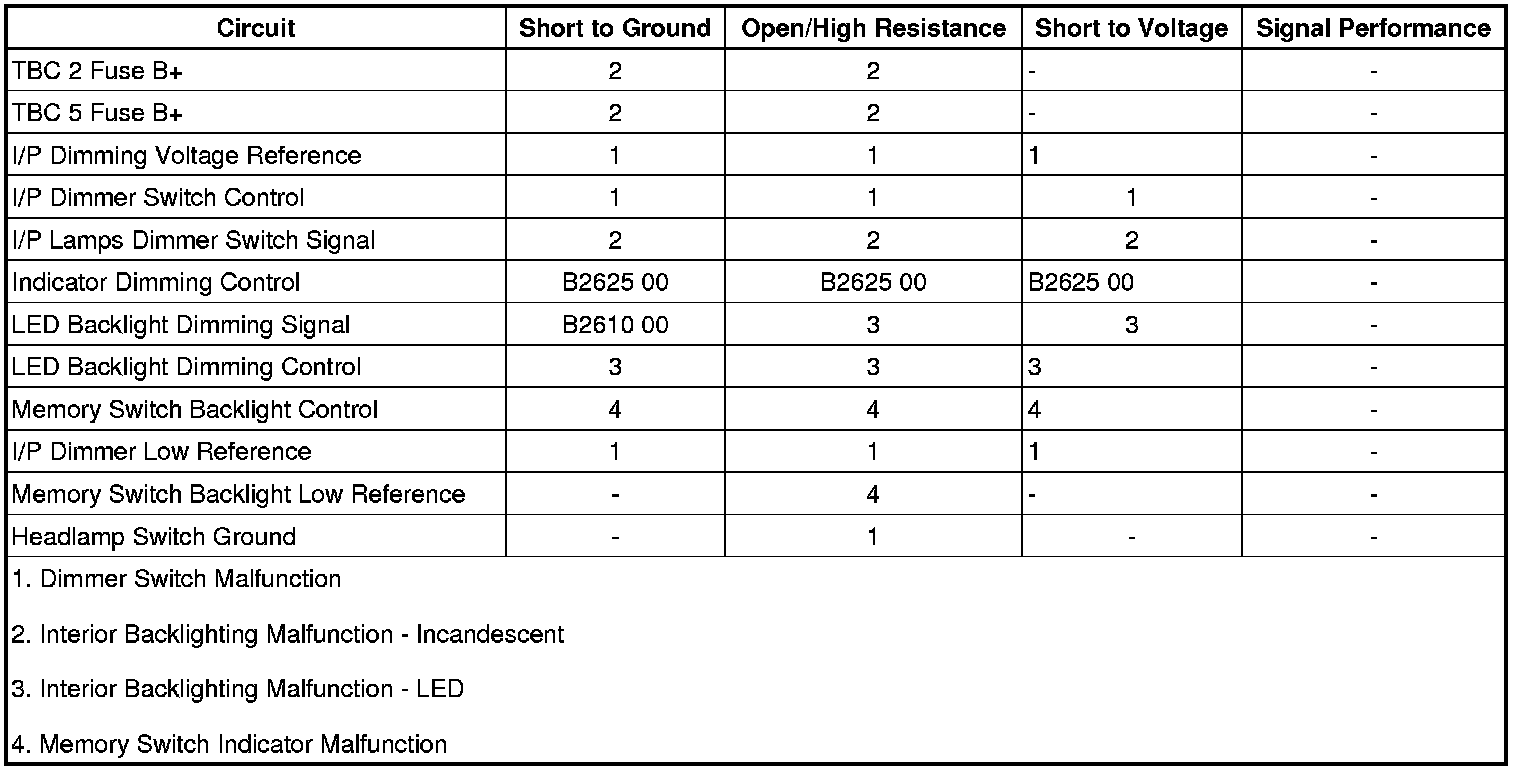

- Display Dimming Pulse Width Modulation (PWM) Output Circuit

Diagnostic Fault Information





Circuit/System Description

When the ignition switch is turned to the RUN position, the radio's VF displays turn ON at maximum brightness. When the park lamps are ON, all incandescent back lighting turn ON at the dimming level indicated by the instrument panel (I/P) dimmer switch. At the same time all VF displays dim to match the indicated dimming level. The panel dimmer switch potentiometer is an input to the body control module (BCM). When the driver selects a dimming setting by moving the I/P dimming switch potentiometer, all incandescent back lighting lamps are provided with a specific voltage. The incandescent back lighting lamps are then grounded at G201, G302, and G303. When the I/P dimmer switch is moved from MIN to MAX, all vacuum fluorescent (VF) displays, as well as all incandescent back lighting respond from minimum intensity to maximum brightness in response to the I/P dimmer switch.

Conditions for Running the DTC

The battery voltage must be between 9-16 volts.

Conditions for Setting the DTC

* The TBC 4 fuse battery supply circuit to the BCM is open or shorted to ground.
* The LED dimming supply voltage circuit is shorted to ground.

Action Taken When the DTC Sets

The switch LED indicators will be inoperative.

Conditions for Clearing the DTC

* This DTC will clear on current status after the condition for setting the fault is corrected.
* A history DTC will clear after 100 consecutive ignition cycles without a fault present.

Reference Information
Schematic Reference

Interior Lights Dimming Schematics (Interior Lights Dimming Schematics)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Interior Lighting Systems Description and Operation (Interior Lighting Systems Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the BCM connector X3.
2. Verify that a test lamp illuminates between the B+ circuit terminal B4 and ground.

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance. If the circuit tests normal, and the B+ circuit fuse is open, test the courtesy lamp supply circuit terminal B3 for a short to ground.

3. If the circuits test normal, replace the BCM.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

Control Module References (Programming and Relearning) for BCM replacement, programming, and setup
