Ignition Coil




Component Connector End Views

Ignition Coil 1 (LL8)






Ignition Coil 2 (LL8)

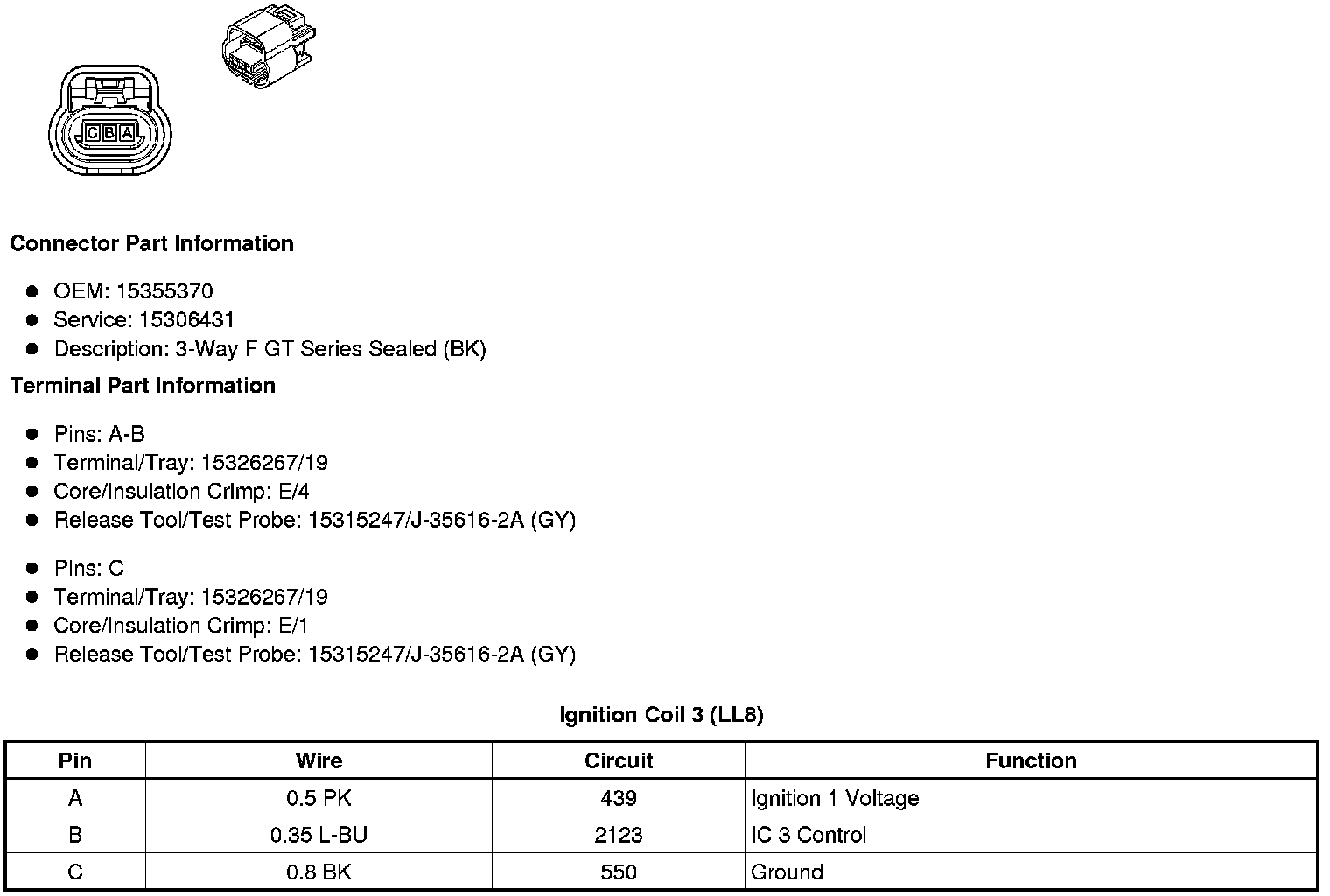

Ignition Coil 3 (LL8)






Ignition Coil 4 (LL8)






Ignition Coil 5 (LL8)






Ignition Coil 6 (LL8)
