Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement




Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement

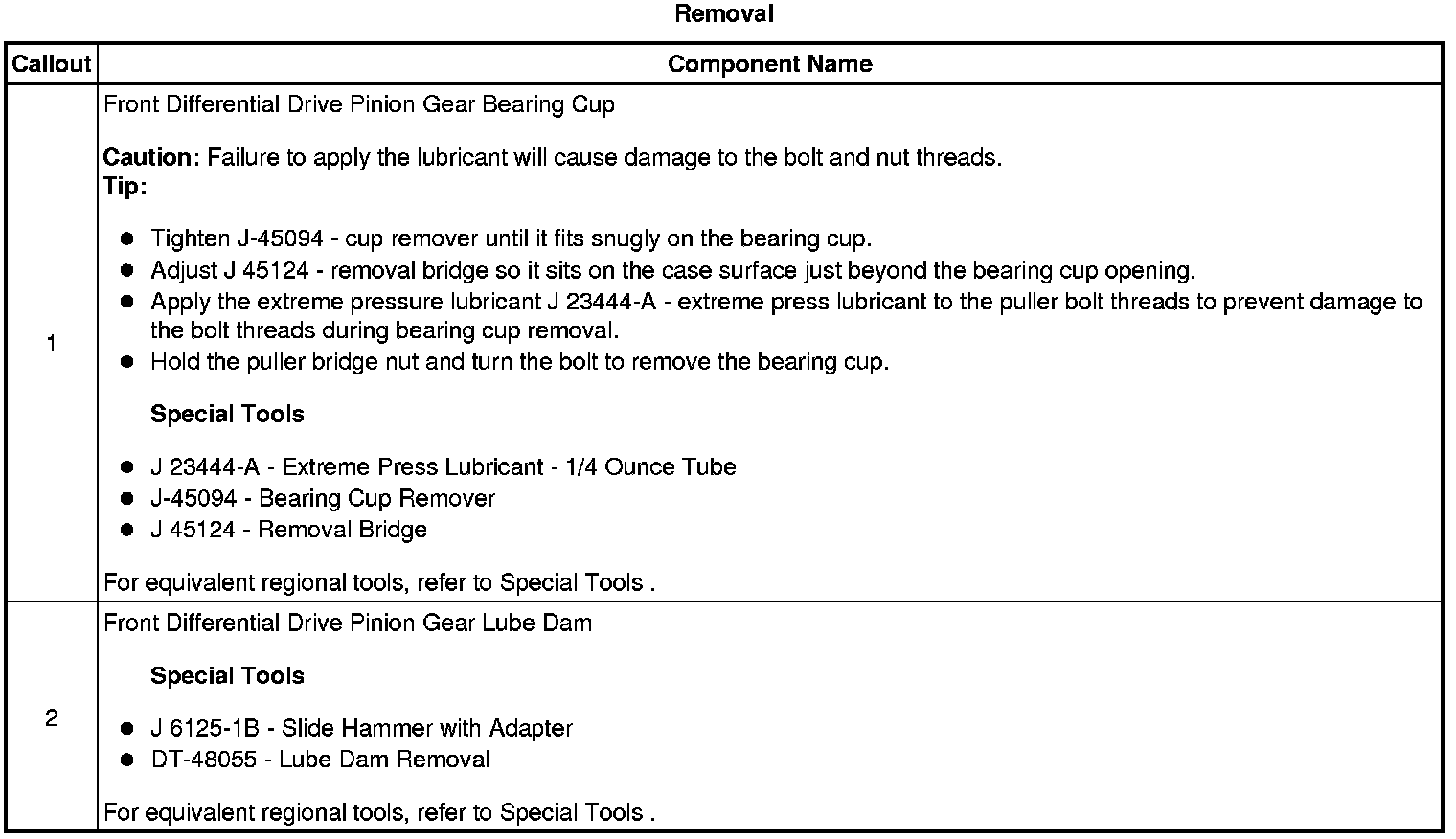

Removal

fig_refgc09routlC-1737815





Installation

fig_refgc09routlC-1737817
