Chevy Truck
>>
2009
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Seals and Gaskets
>>
Service and Repair
>>
Drive Pinion Flange/Yoke and/or Oil Seal Replacement

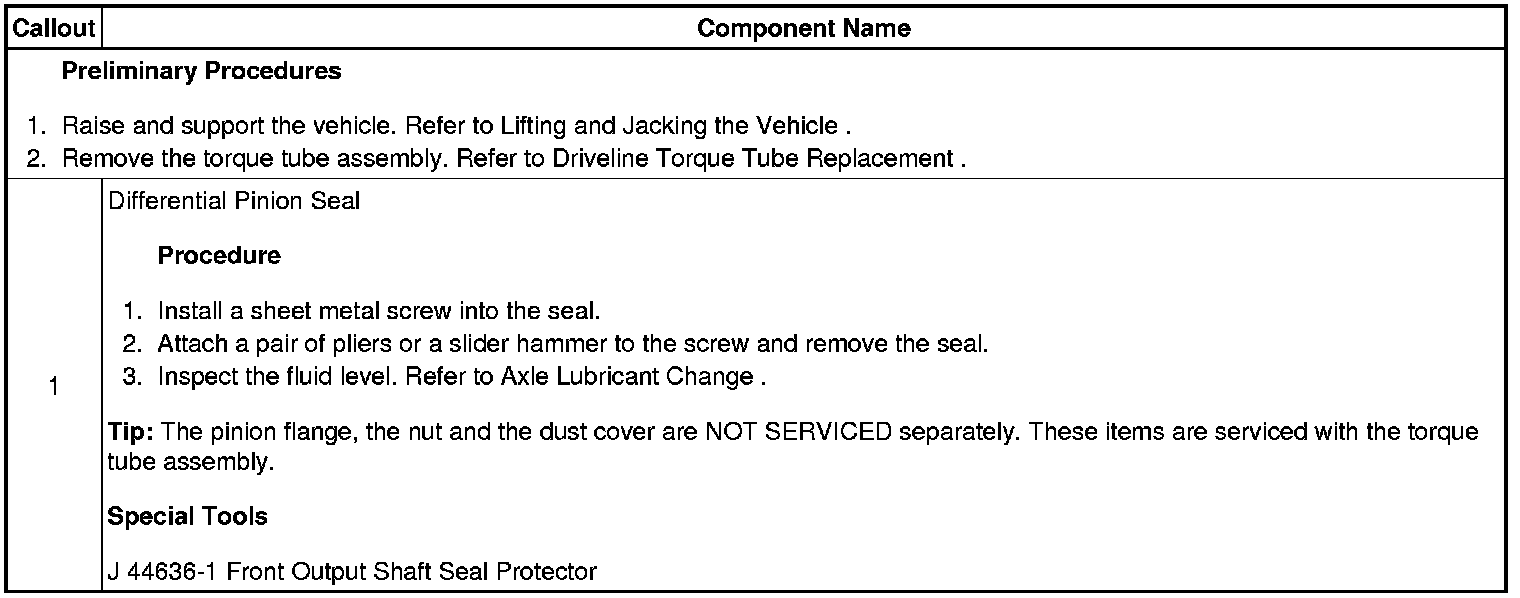

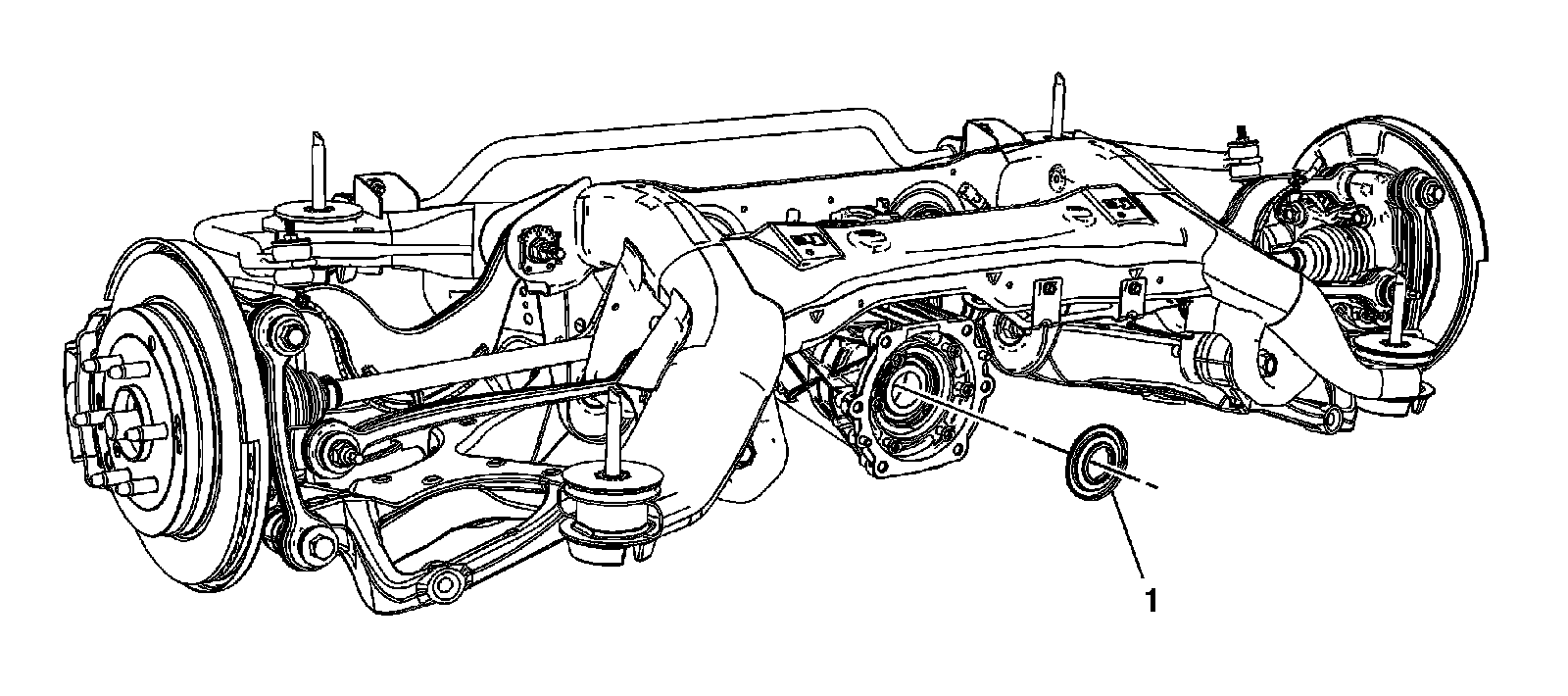

Drive Pinion Flange/Yoke and/or Oil Seal Replacement
Drive Pinion Flange/Yoke and/or Oil Seal Replacement
