P0462
DTC P0462
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC P0462
- Fuel Level Sensor Circuit Low Voltage

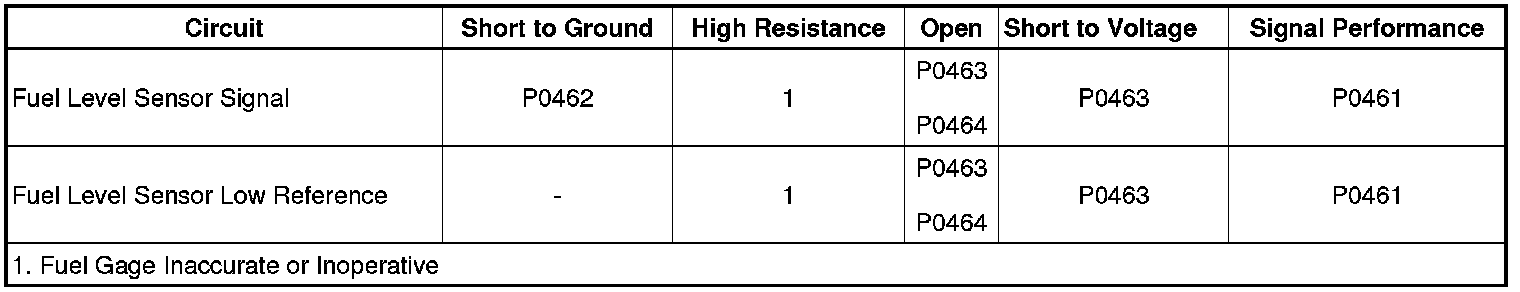

Diagnostic Fault Information
Circuit Description
The fuel level sensor changes resistance based on fuel level. The engine control module (ECM) monitors the signal circuit of the fuel level sensor in order to determine fuel level. When the fuel tank is full, the sensor resistance is low and the ECM senses a low signal voltage. When the fuel tank is empty, the sensor resistance is high and the ECM senses a high signal voltage. The ECM uses the signal circuit of the fuel level sensor in order to calculate the total remaining fuel (percent) in the tank. The ECM sends the fuel level percent via the serial data circuit to the instrument panel cluster (IPC) in order to control the fuel gage.
Conditions for Running the DTC
* The ignition is ON.
* The system voltage is between 11-16 volts.
Conditions for Setting the DTC
* The fuel level signal voltage is greater than 98 percent (less than 0.4 volt).
* The above condition is present for greater than 10 seconds.
Action Taken When the DTC Sets
* The fuel gage defaults to empty.
* The check gages indicator illuminates.
* The ECM records the operating conditions at the time the diagnostic fails. The ECM displays the failure information in the Failure Records on the scan tool.
Conditions for Clearing the DTC
* The DTC becomes history when the conditions for setting the DTC are no longer present.
* The history DTC clears after 40 malfunction-free warm-up cycles.
Reference Information
Schematic Reference
Instrument Cluster Schematics Instrument Cluster Schematics
Connector End View Reference
Component Connector End Views
Description and Operation
Instrument Cluster Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
Ignition ON, observe the scan tool Fuel Level Sensor parameter. The reading should be between 0.9-2.5 volts.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the fuel level sensor.
2. Ignition ON, verify that the scan tool Fuel Level Sensor parameter is greater than 4.5 volts.
• If less than the specified value, test the signal circuit terminal B for a short to ground. If the circuit tests normal, replace the ECM.
3. If all circuits test normal, perform the fuel level sensor component test before replacing the fuel level sensor.
Component Testing
1. Ignition OFF, remove the fuel level sender.
2. While sweeping the fuel level sensor through its full range of motion, test for a minimum value less than 41 ohms and a maximum value greater than 119 ohms between signal terminal B and the low reference terminal C.
• If not within the specified range, replace the fuel level sensor.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure
* Fuel Level Sensor Replacement Service and Repair
* Control Module References Control Module References for the ECM replacement, setup, and programming
