Rear Passenger Compartment Components

Passenger Compartment/Roof Component Views

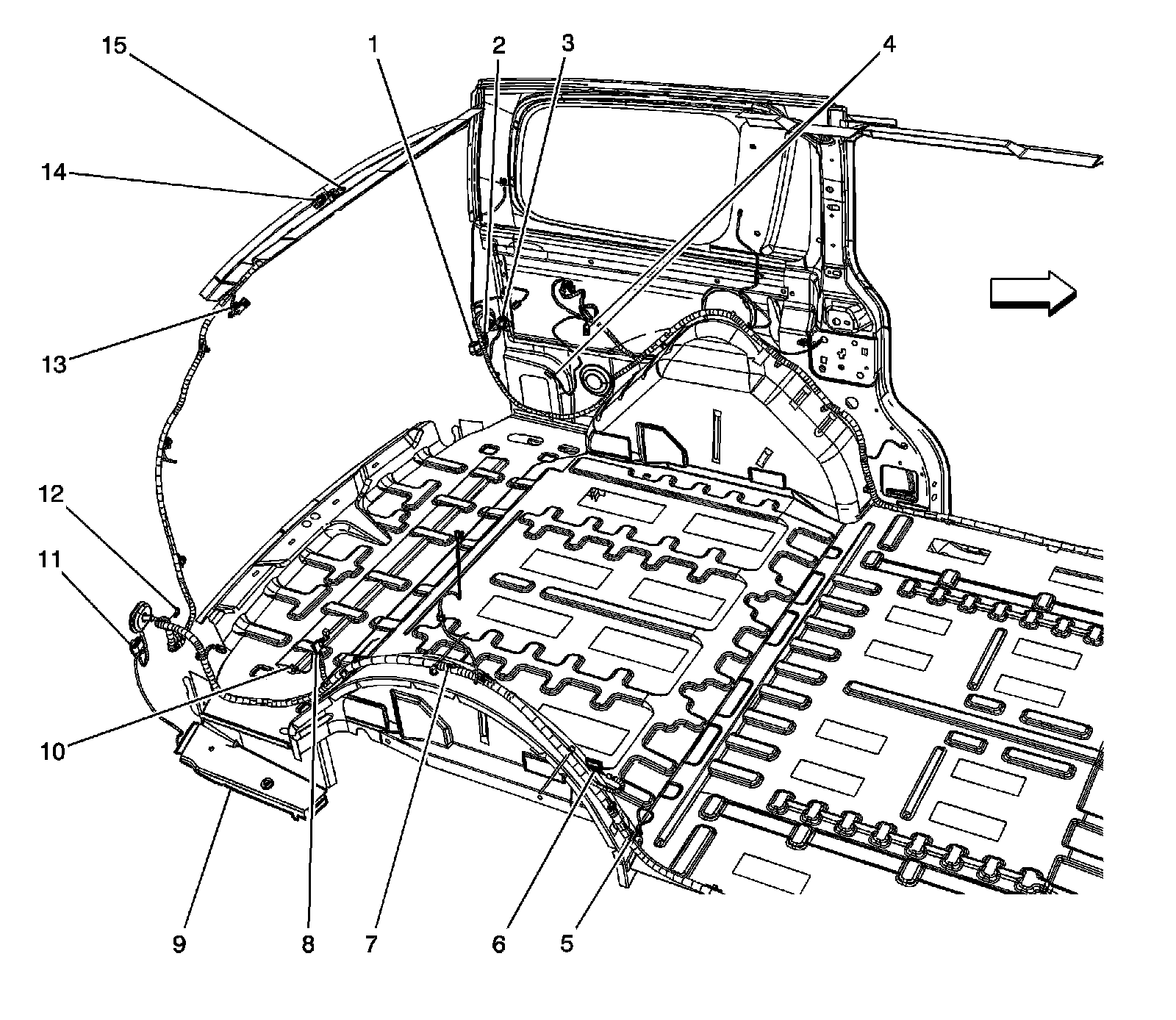

Rear Passenger Compartment Components




1 - X479
2 - G401
3 - X405 (G67)
4 - Auxiliary HVAC Connectors
5 - Door Jamb Switch - Right Rear
6 - Rear Object Sensor Control Module (UD7)
7 - Rear Parking Assist (RPA) Diagnostic Connector (UD7)
8 - Sliding Door Actuator Control Module - Right (E58)
9 - X440 (UD7)
10 - X426 KC7)
11 - X480
12 - G400
13 - X420 (UD7)
14 - X400
15 - X402
