Parking Brake Warning Switch: Service and Repair




Parking Brake Indicator Switch Replacement

Removal Procedure

1. Remove the left cowl side panel. Refer to Cowl Side Trim Panel Replacement Cowl Side Trim Panel Replacement.

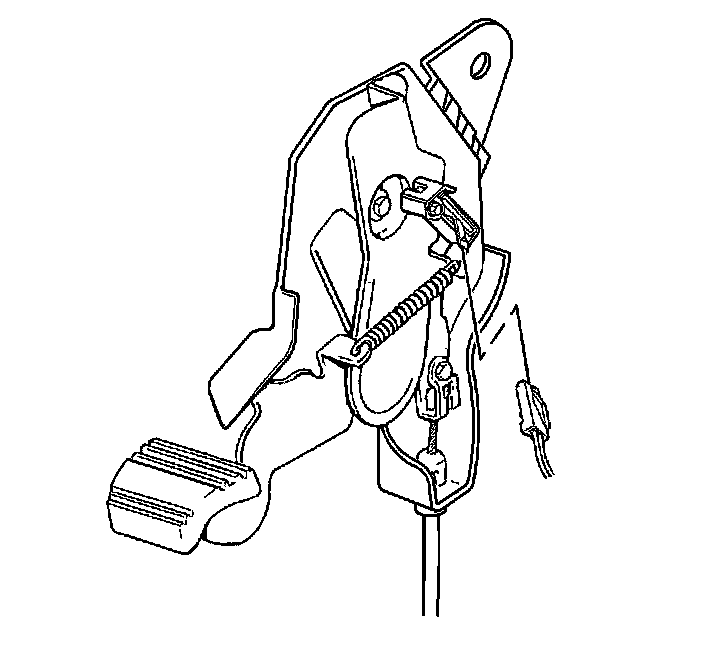

2. Remove the park brake indicator switch electrical connector.
3. Remove the park brake indicator switch screw.
4. Remove the parking brake indicator switch.

Installation Procedure

1. Install the park brake indicator switch.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the park brake indicator switch screw and tighten to 3 Nm (27 lb in).




3. Install the park brake indicator switch electrical connector.
4. Install the left cowl side panel. Refer to Cowl Side Trim Panel Replacement Cowl Side Trim Panel Replacement.
