Ignition Coil

Component Connector End Views

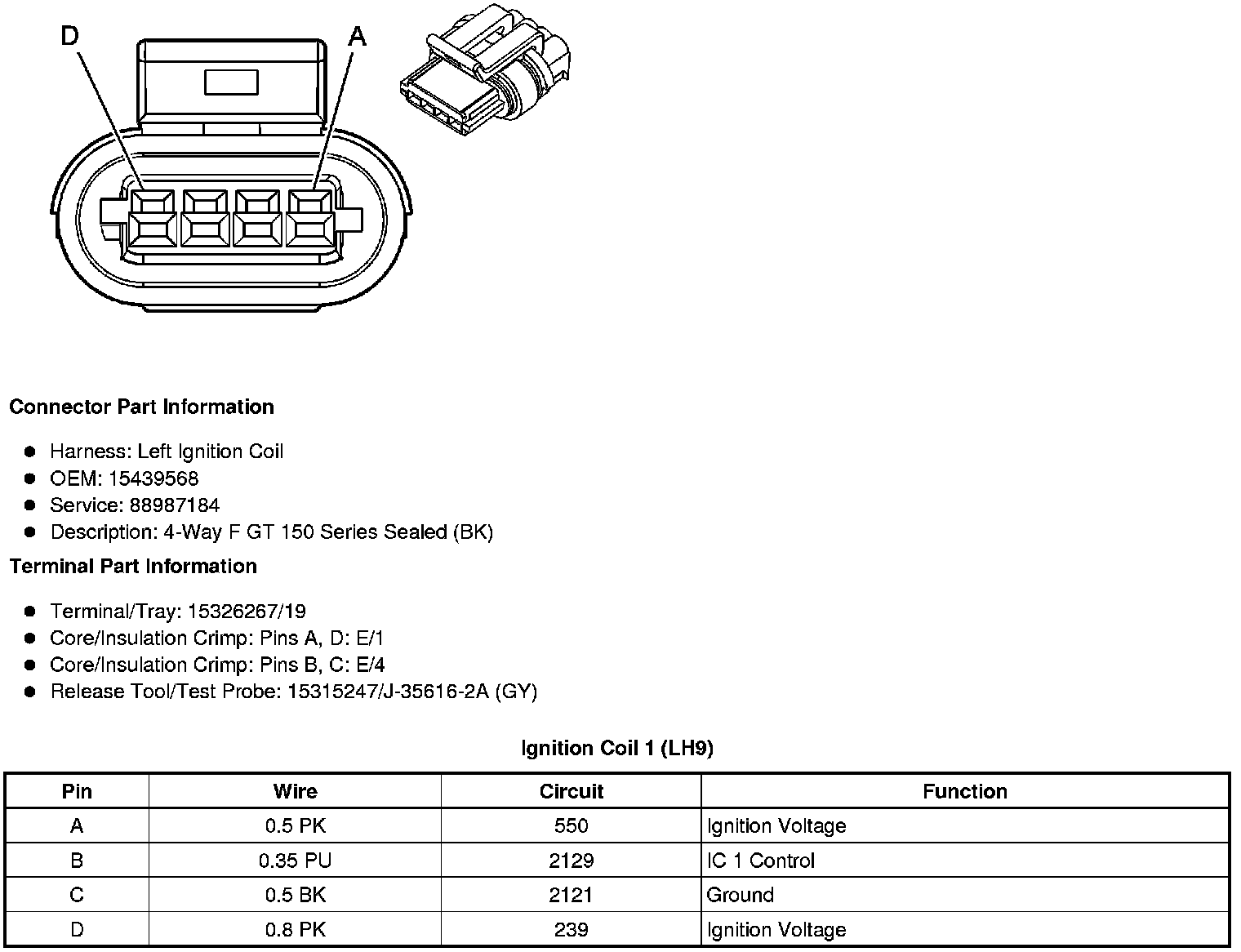

Ignition Coil 1 (LH9)

Ignition Coil 2 (LH9)

Ignition Coil 3 (LH9)

Ignition Coil 4 (LH9)

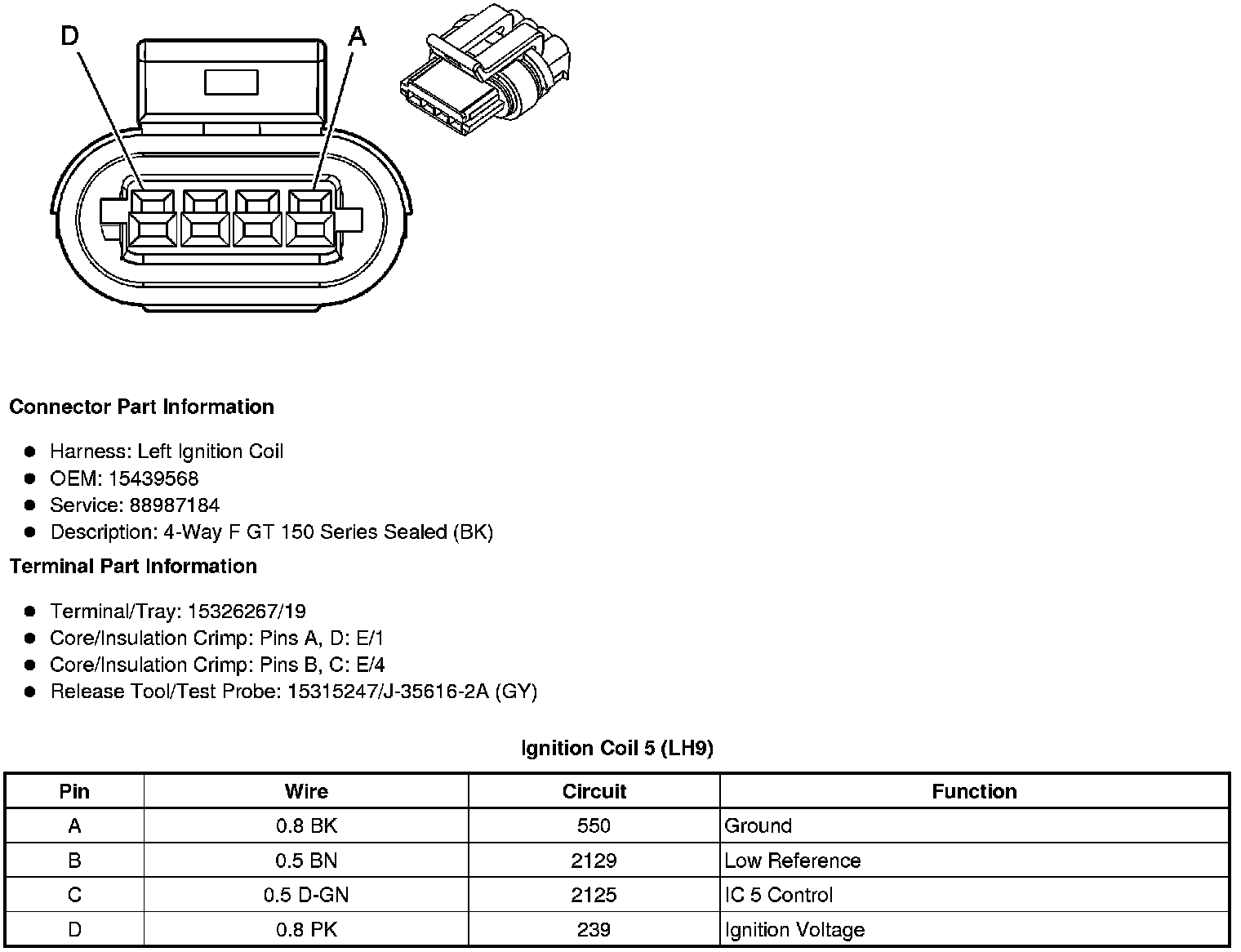

Ignition Coil 5 (LH9)

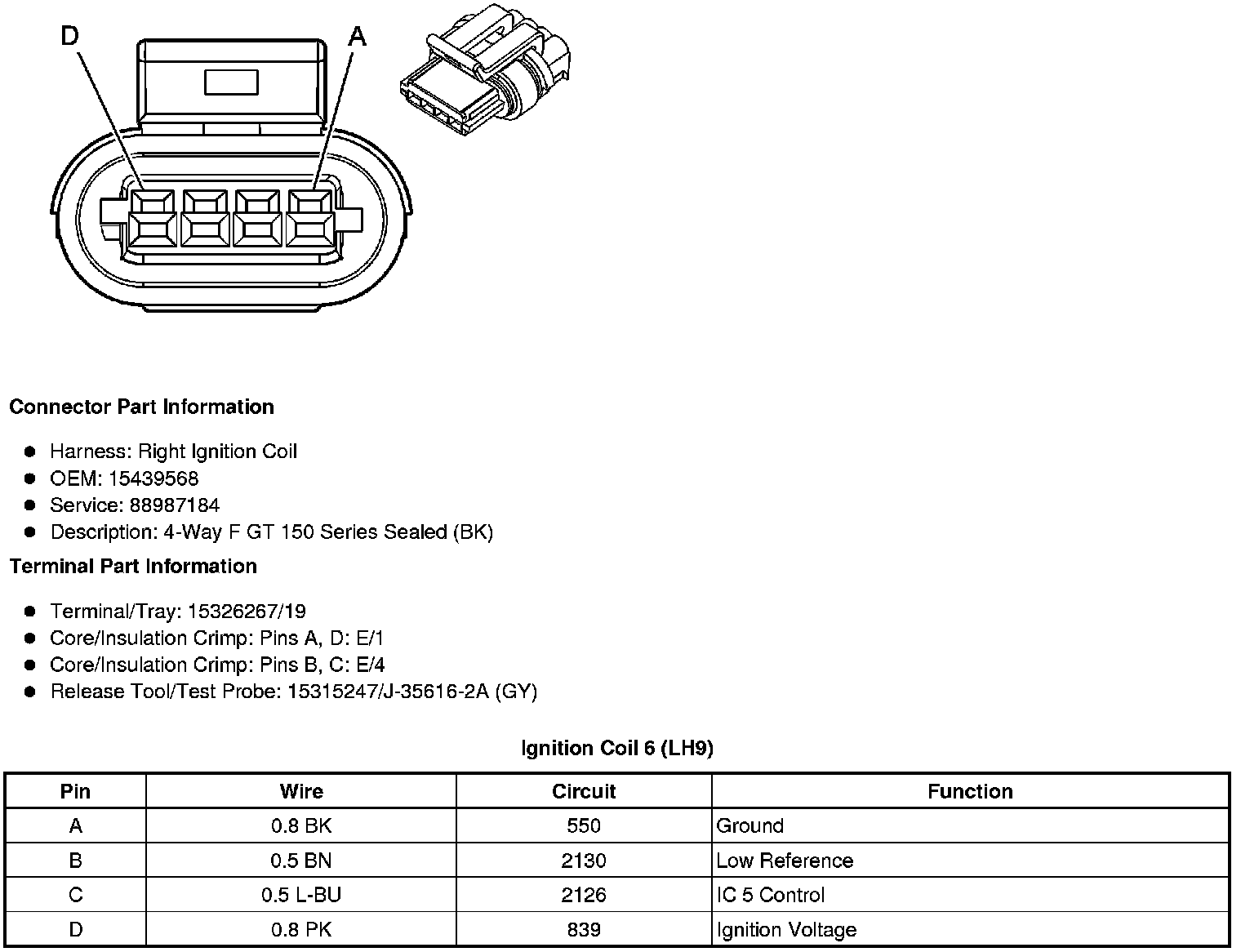

Ignition Coil 6 (LH9)

Ignition Coil 7 (LH9)

Ignition Coil 8 (LH9)
