Control Assembly, HVAC
Control Assembly, HVAC

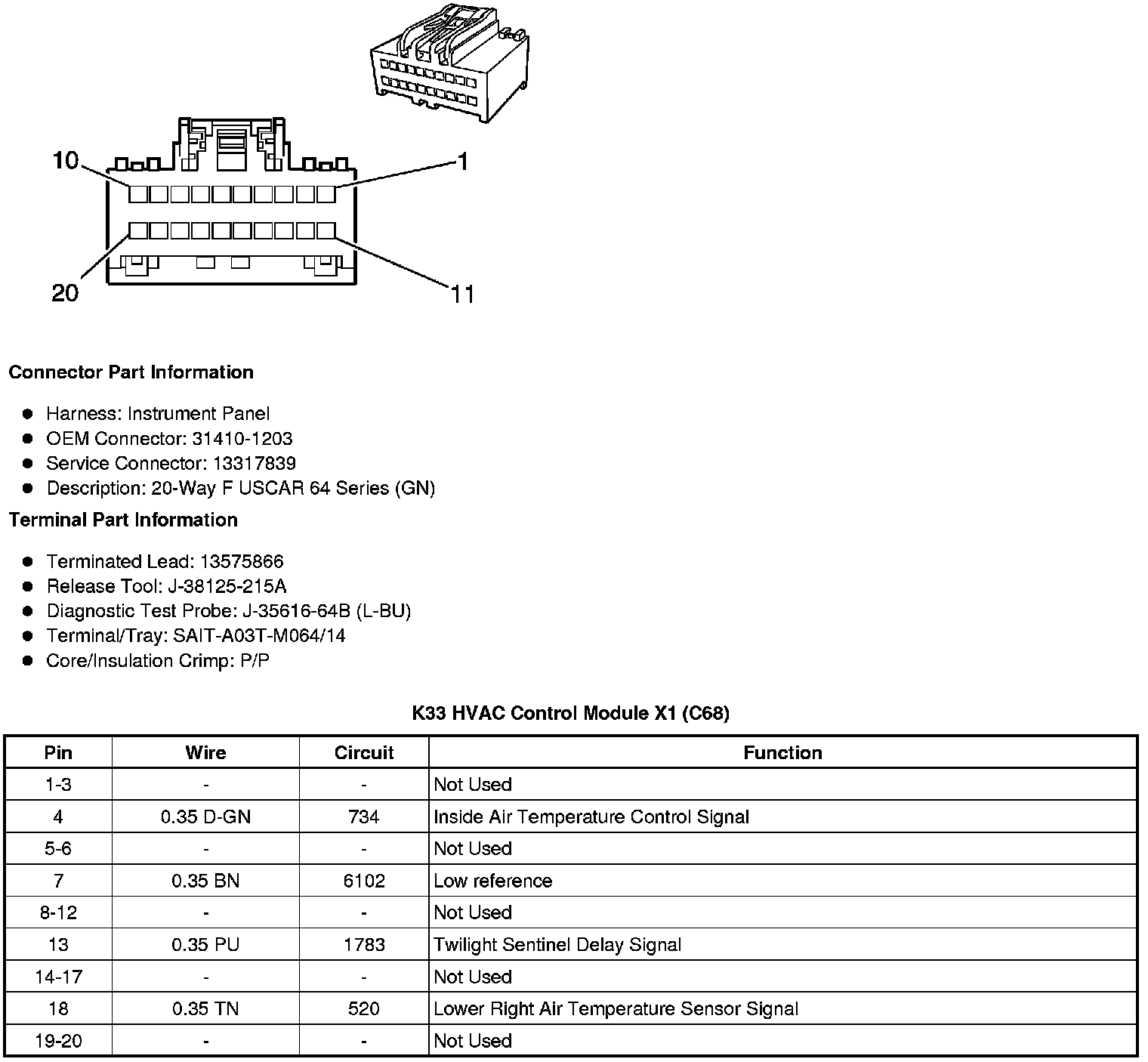

K33 HVAC Control Module X1 (C68)
K33 HVAC Control Module X2

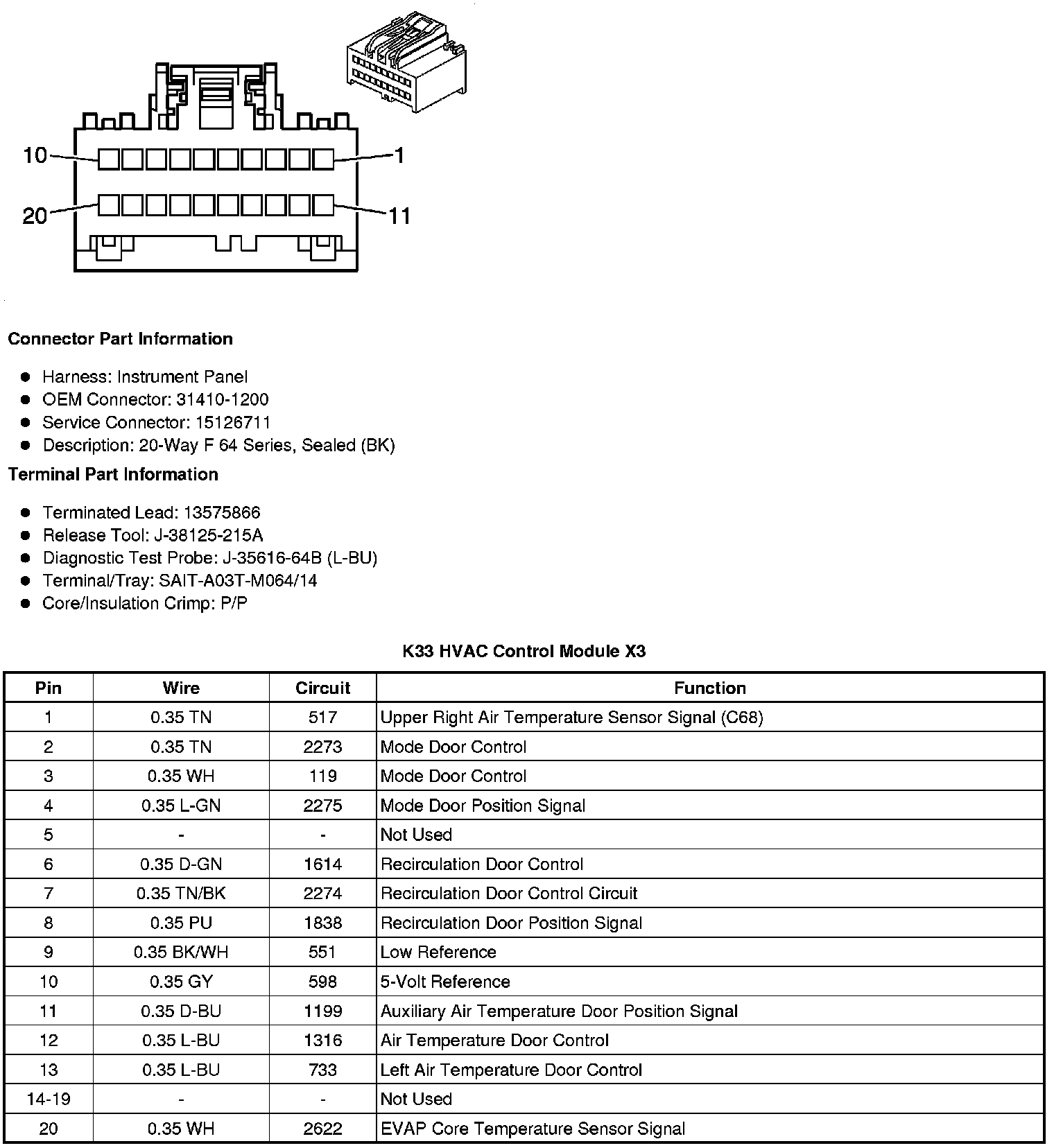

K33 HVAC Control Module X3
