Chevy Truck
>>
2010
>>
Equinox AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sun Shade
Sun Shade
Component Connector End Views

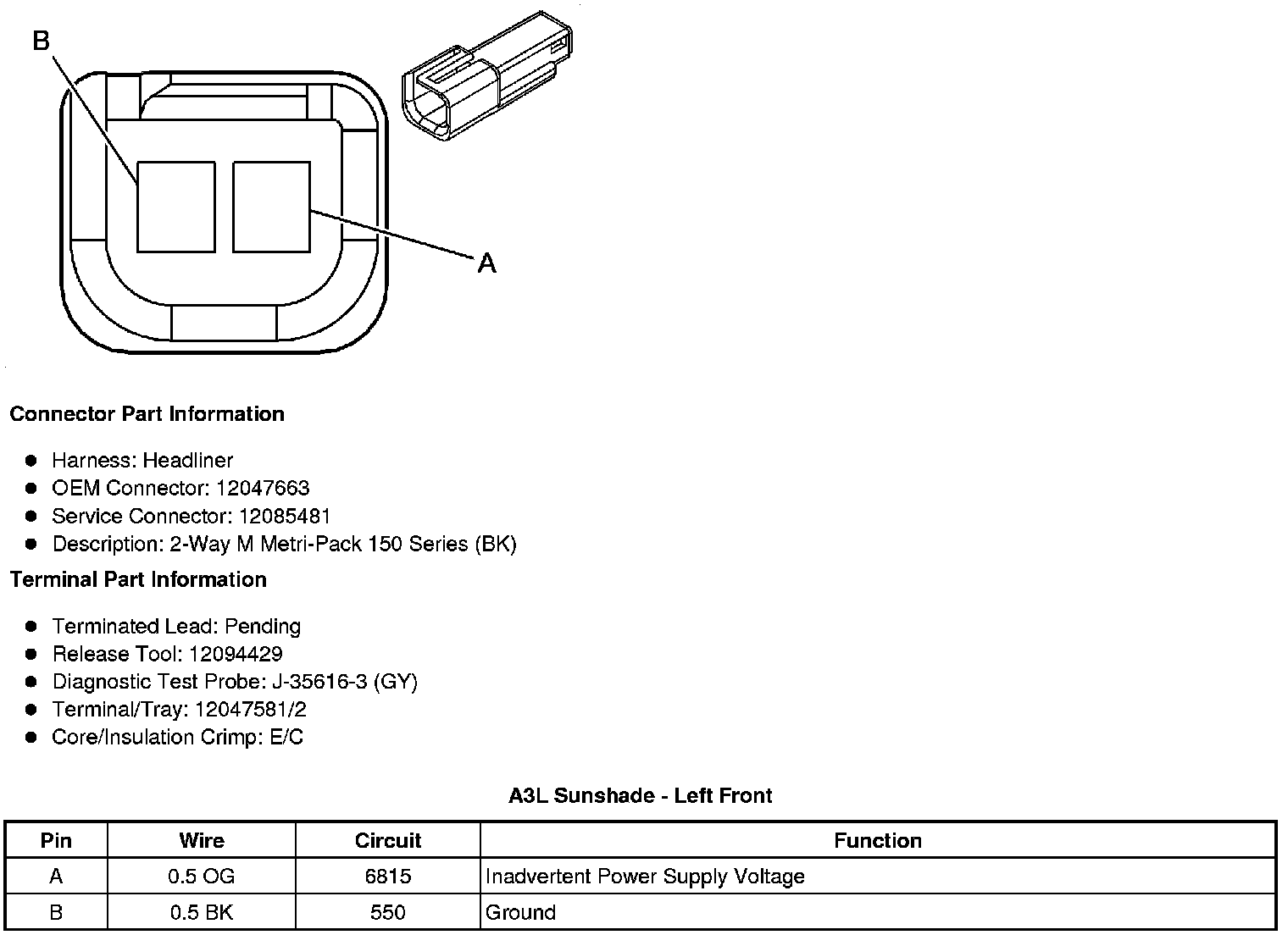

A3L Sunshade - Left Front
A3R Sunshade - Right Front
