Components

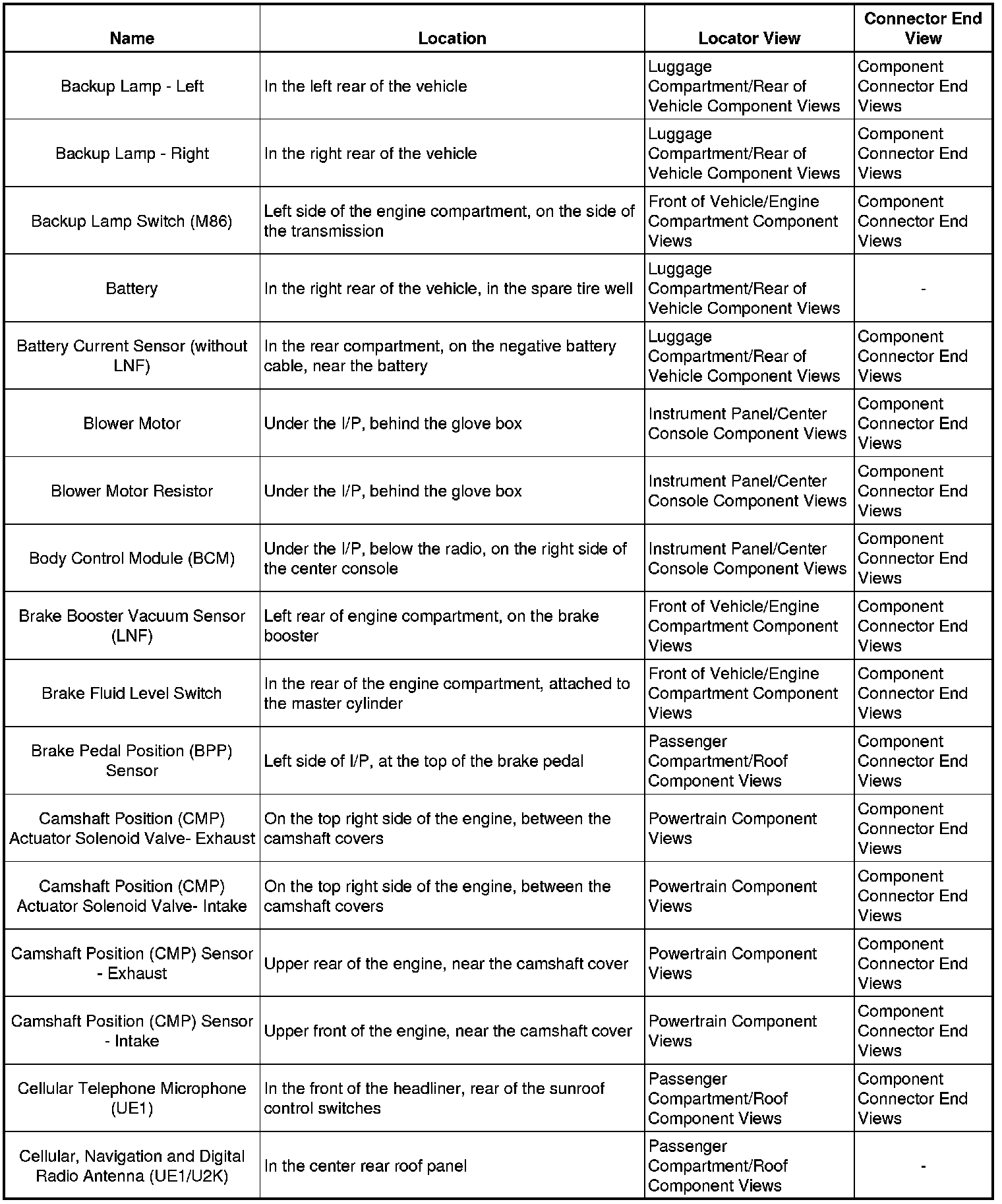

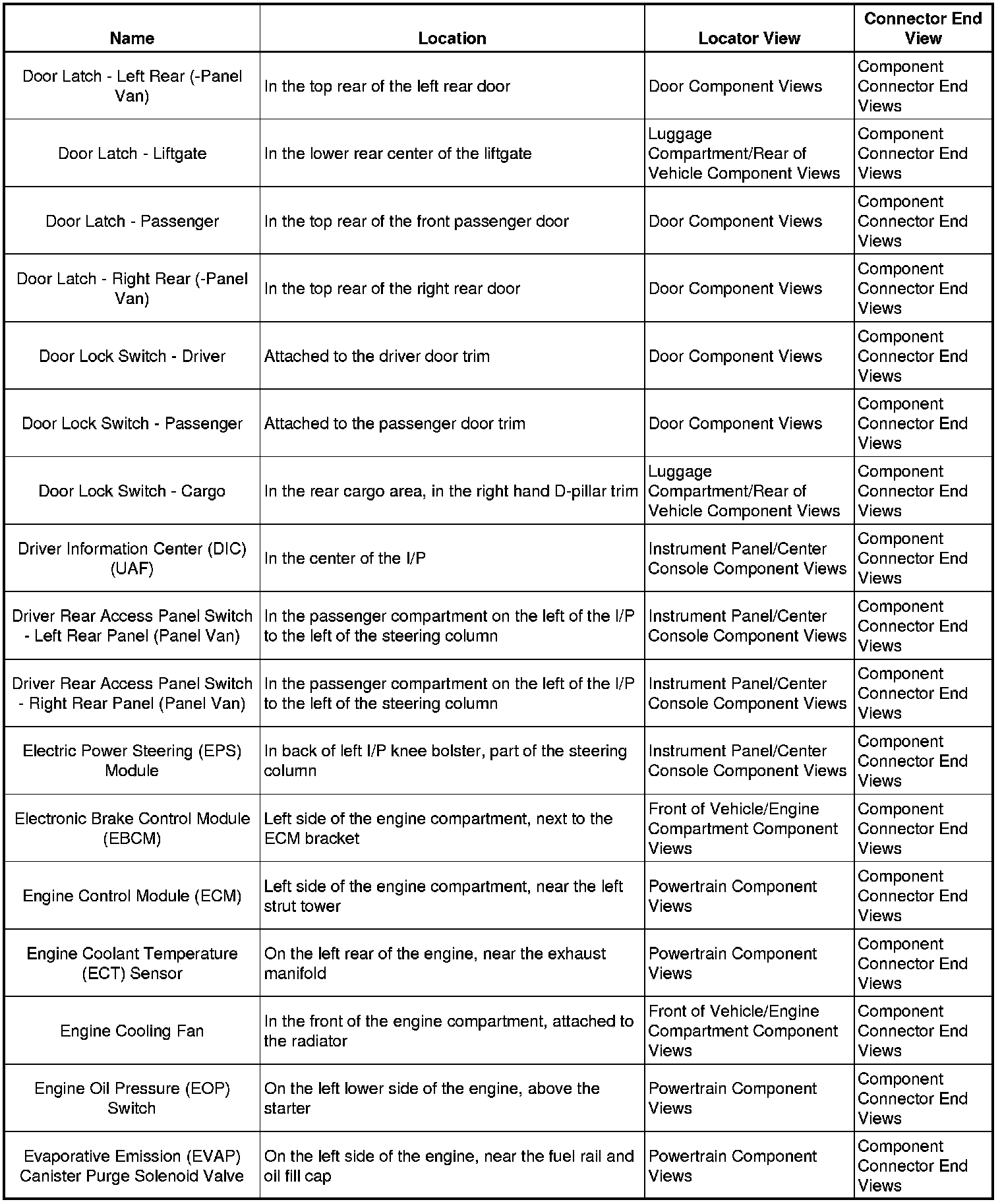

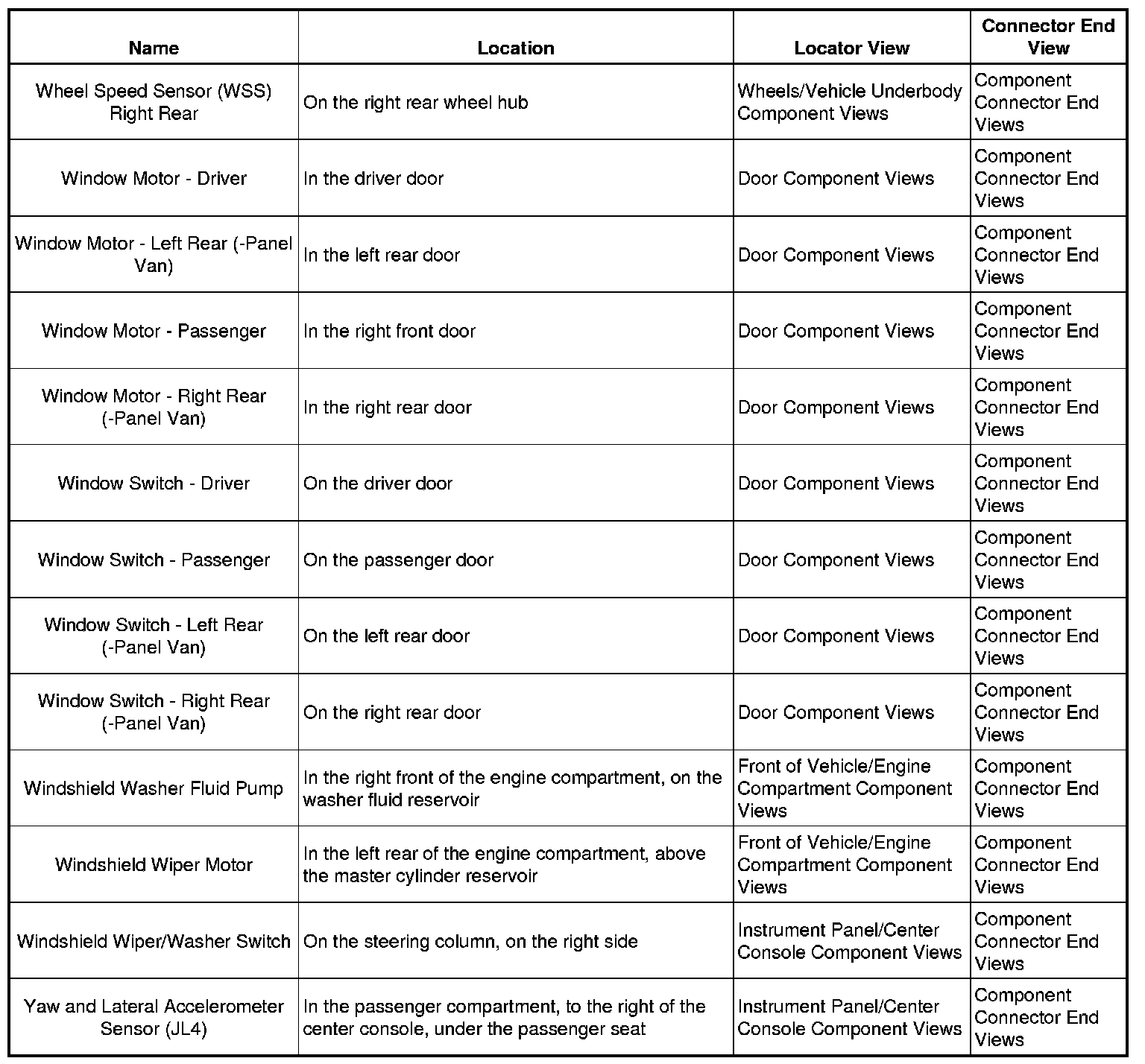

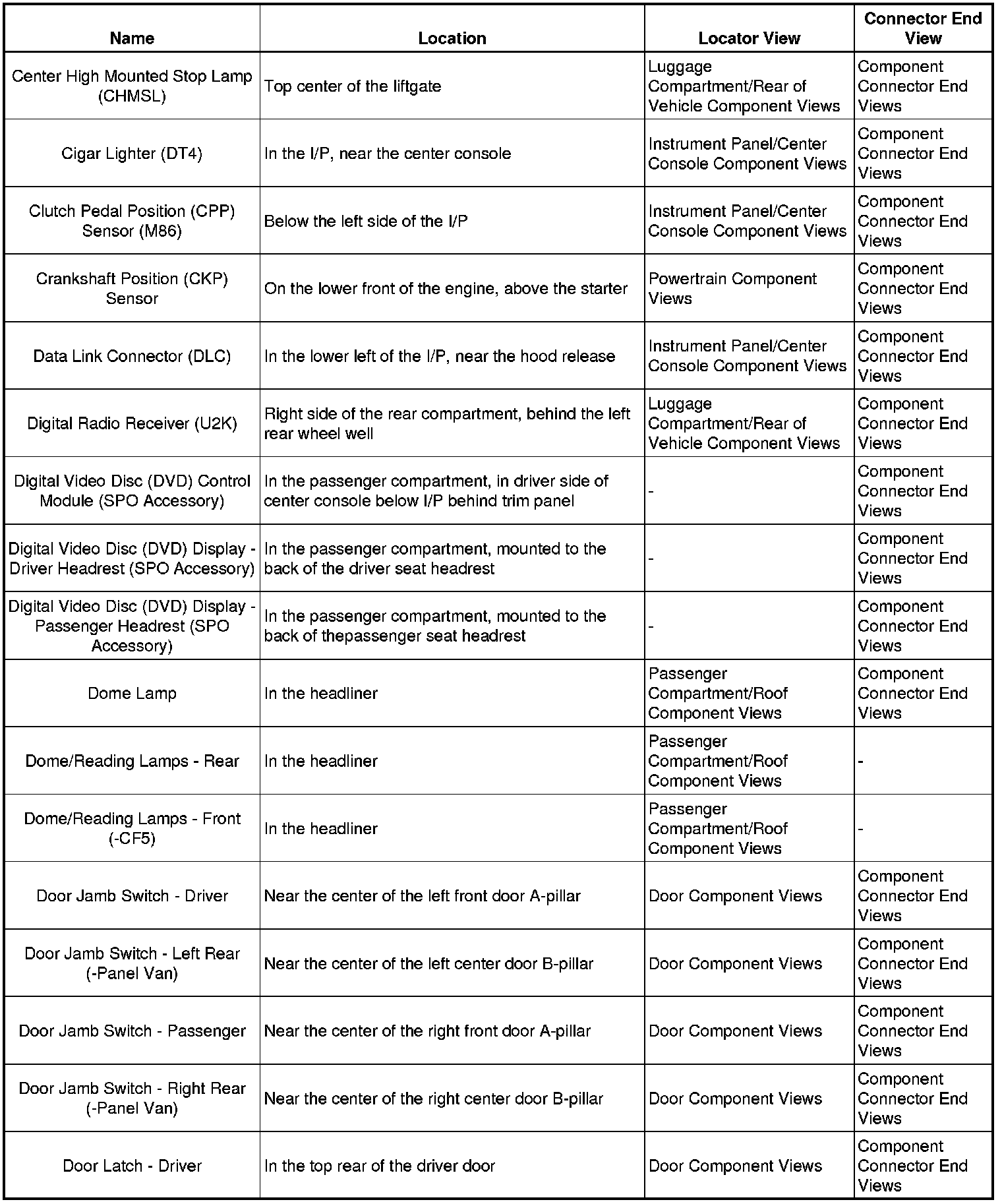

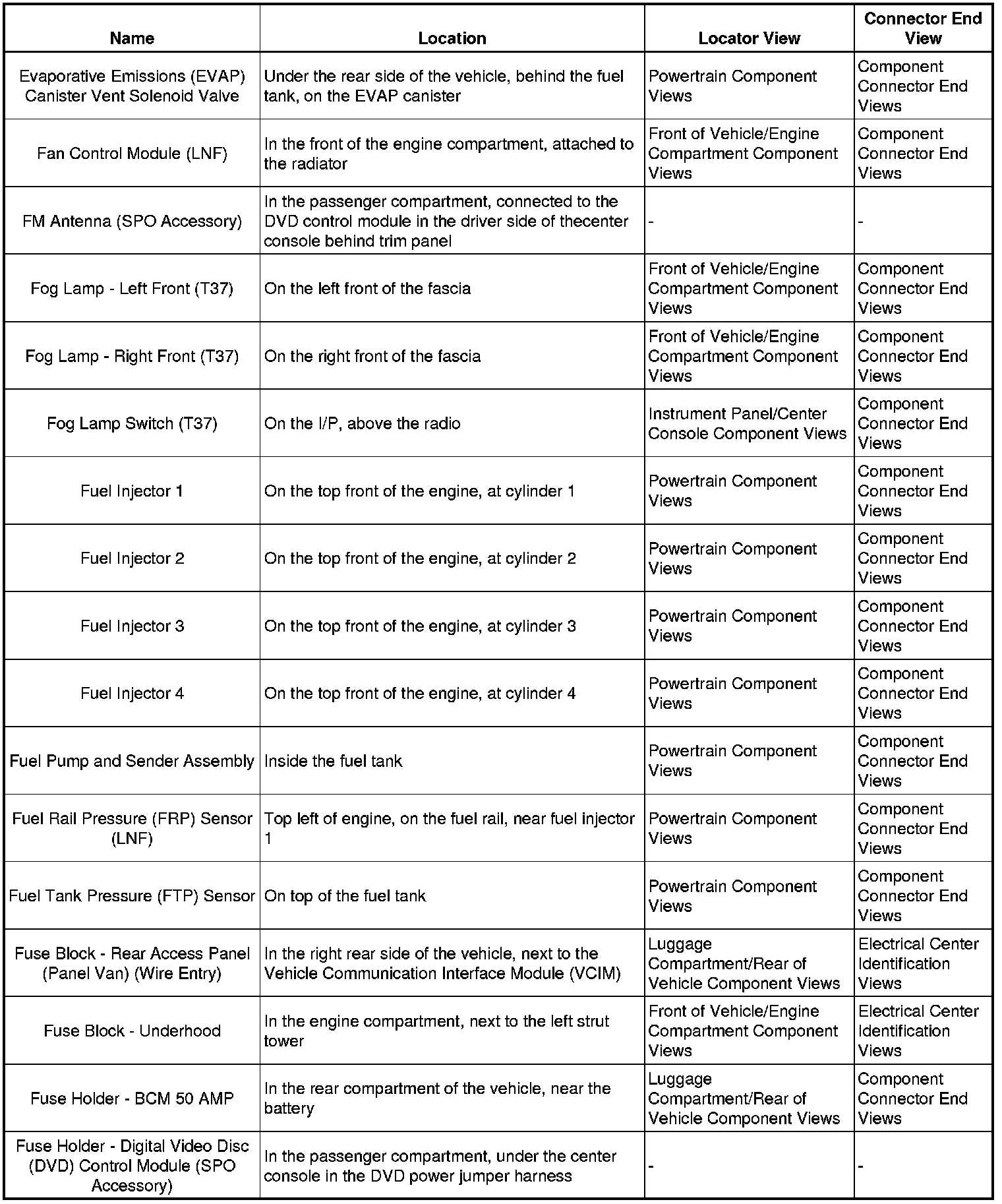

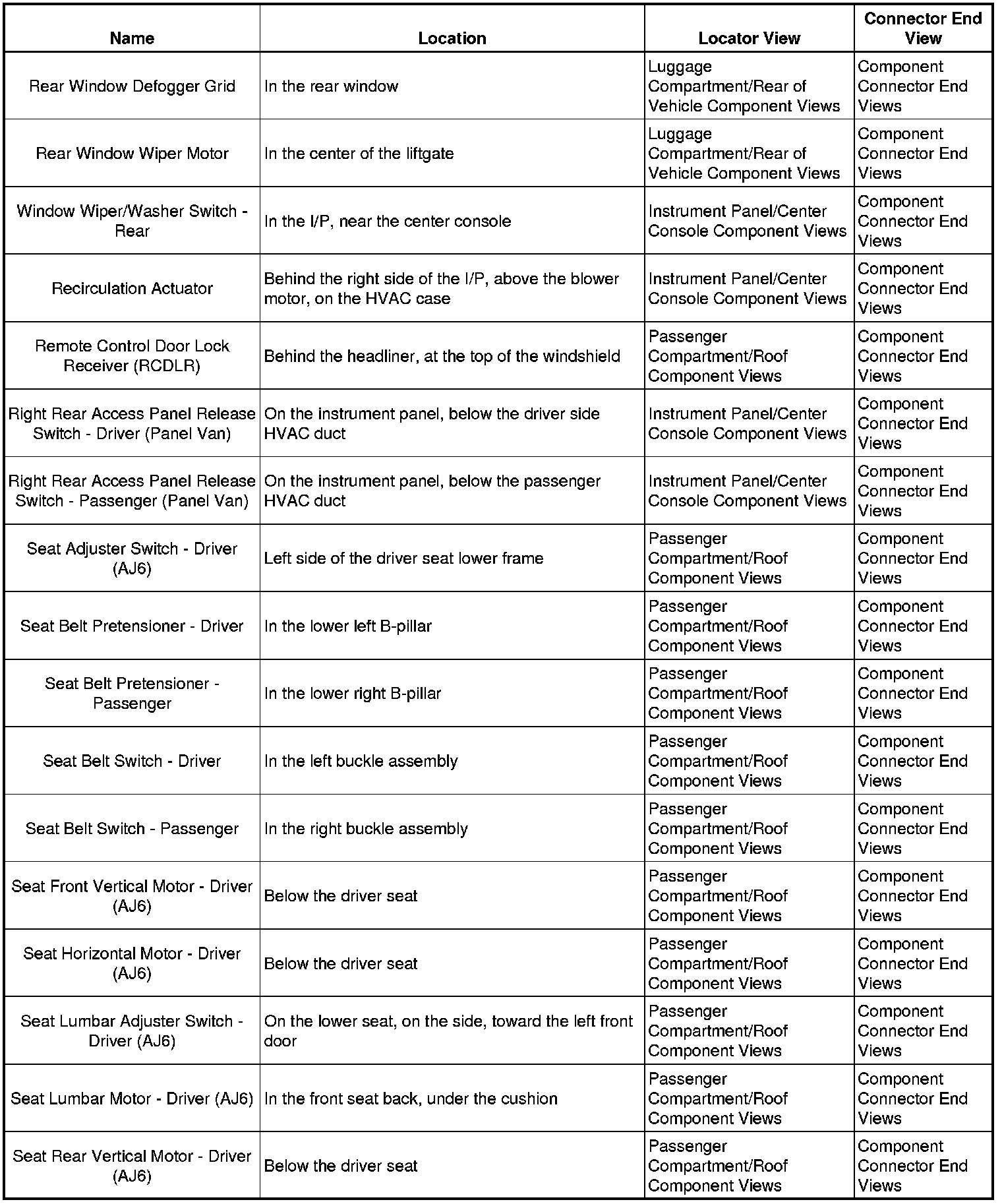

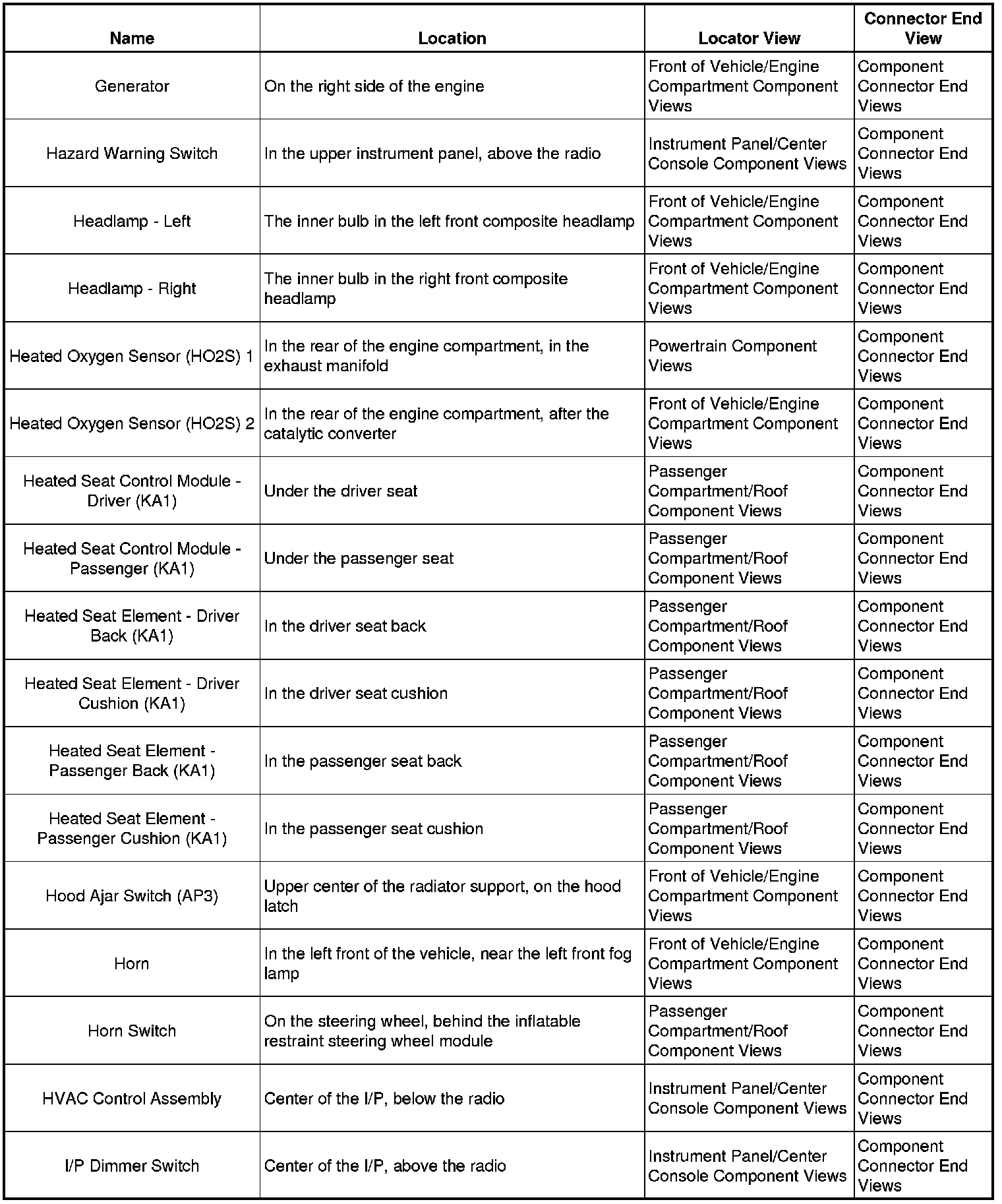

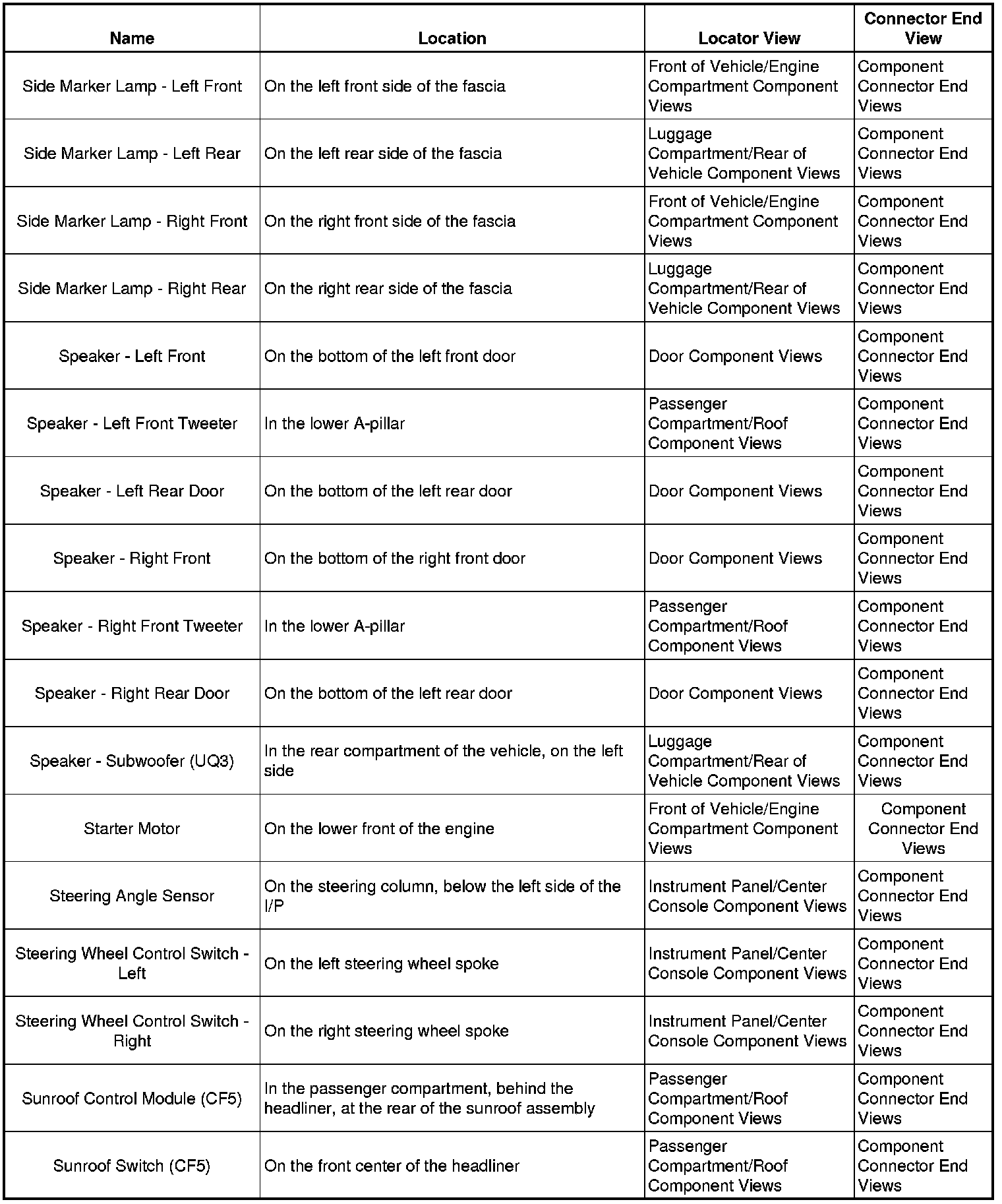

Master Electrical Component List

1-2 Sh - Au:





Ba - Ce:





Ce - Do:





Do - Ev:





Ev - Fu:





Ge - I/P:





Ig - In:





In - Mo:





Mo - Re:





Re - Se:





Si - Su:





Ta - Wh:





Wh - Ya:
