C0899
DTC C0899
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of this diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.
DTC Descriptor
DTC C0899 00
- Device Voltage Low - EBCM (JF3/JF7/JH6/JH7)
DTC C0899 03
- Device Voltage Low - EBCM (JL4)
Diagnostic Fault Information

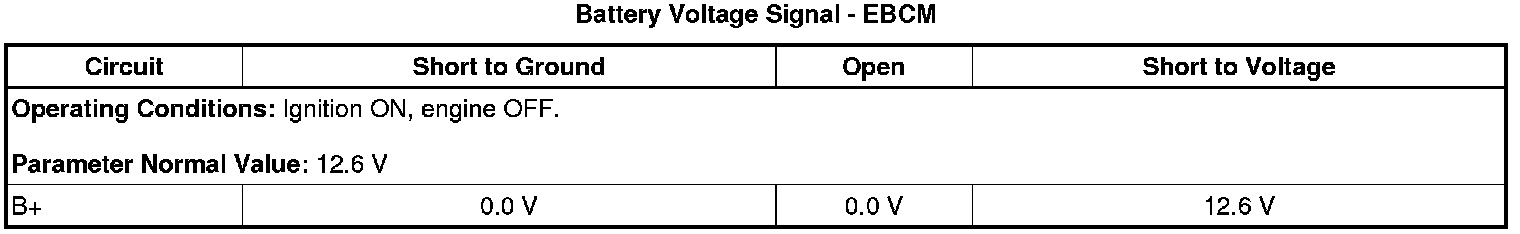

Typical Scan Tool Data
Circuit/System Description
The electronic brake control module (EBCM) monitors the battery positive (B+) voltage level available for system operation. A low voltage condition prevents the system from operating properly. If low voltage is detected by the EBCM, then DTC C0899 sets.
Conditions for Running the DTC
The ignition is ON.
Conditions for Setting the DTC
The ignition voltage available to the EBCM is less than 9 V for 100 msec.
Action Taken When the DTC Sets
* The traction control system (TCS) and vehicle stability enhancement system (VSES) are disabled for the duration of the ignition cycle.
* The vehicle dynamics caution (VDC) indicator turns ON.
Conditions for Clearing the DTC
* The condition for the DTC is no longer present.
* The EBCM automatically clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.
Diagnostic Aids
* A low voltage DTC in multiple modules indicates a concern in the charging system.
* Inspect the ground connection G300 to verify that it is clean and tight.
Reference Information
Schematic Reference
Starting and Charging Schematics (Electrical Diagrams)
Connector End View Reference
Component Connector End Views (Connector Views)
Description and Operation
* Antilock Brake System Schematics (Electrical Diagrams) ABS Description and Operation less than 8600 GVW
Antilock Brake System Schematics (Electrical Diagrams) ABS Description and Operation greater than 8600 GVW
* Charging System Description and Operation (Description and Operation)
Electrical Information Reference
* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing for Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Verification
1. Engine running, accessories OFF, measure and record the battery voltage at the battery terminals. The voltage should be between 12.6 and 15.0 V.
• If not within the specified range, refer to Charging System Test (Component Tests and General Diagnostics).
2. Observe the scan tool EBCM Battery Voltage Signal parameter. The reading should be between 12.6 and 15.0 V.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the module that set the DTC.
2. Ignition OFF and scan tool disconnected, open and close the drivers door, and wait 1 minute. Test for less than 5 Ohms between the ground circuit terminals listed below and ground.
* Terminal 11 (JH6/JH7 EBCM)
* Terminal 28 (JF3/JF7 EBCM)
* Terminal 38 (JL4 EBCM)
• If greater than the specified range, test the ground circuit for an open/high resistance.
3. Verify that a test lamp illuminates between the B+ circuit terminals listed below and ground.
* Terminal 1 (JH6/JH7 EBCM)
* Terminal 25 (JF3/JF7/JL4 EBCM)
• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.
4. If all circuits test normal, replace the EBCM.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
Control Module References (Programming and Relearning) for EBCM replacement, setup and programming.
