Windshield Washer Pump: Diagrams




Component Connector End Views

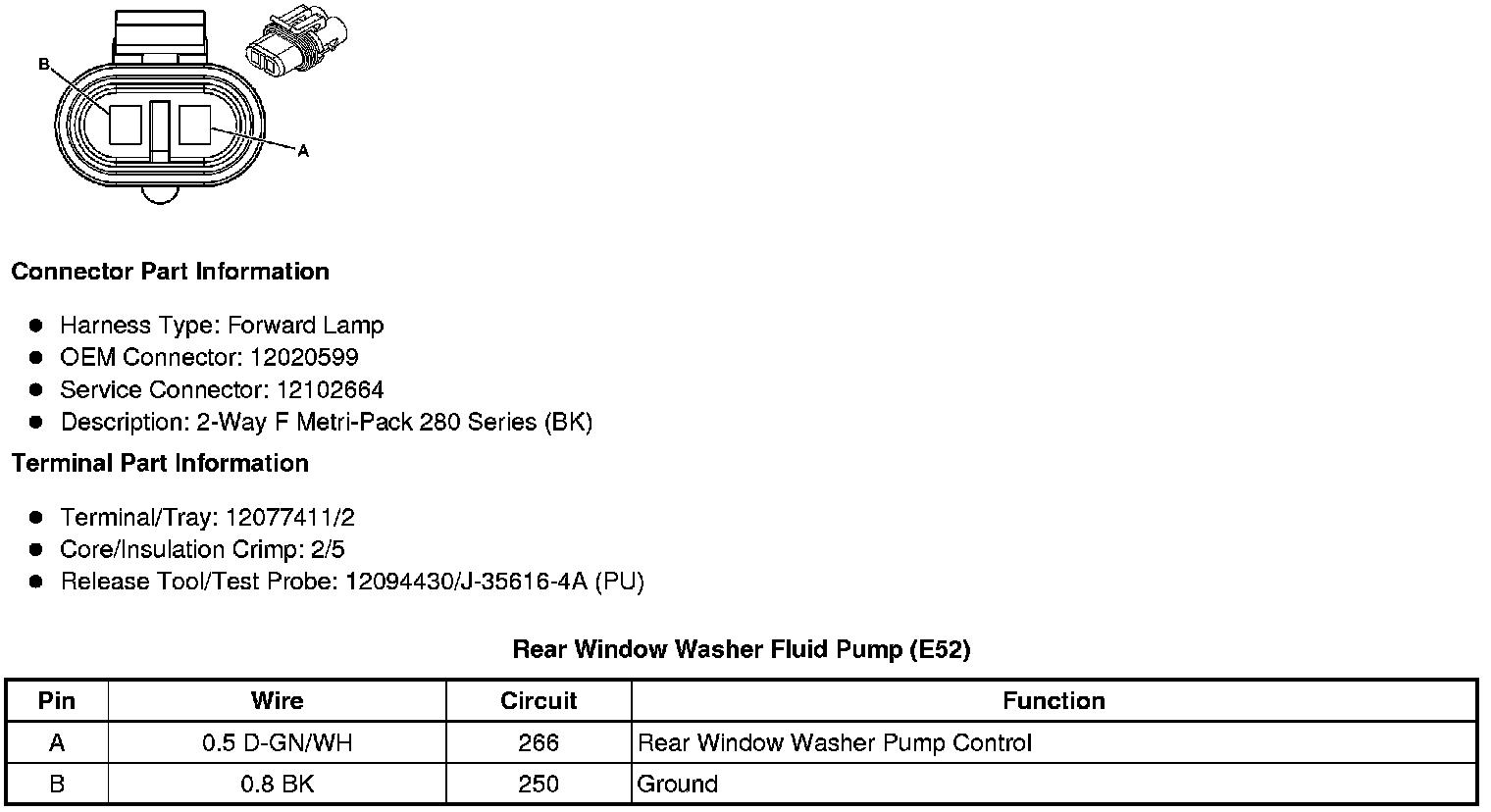

Rear Window Washer Fluid Pump (E52)

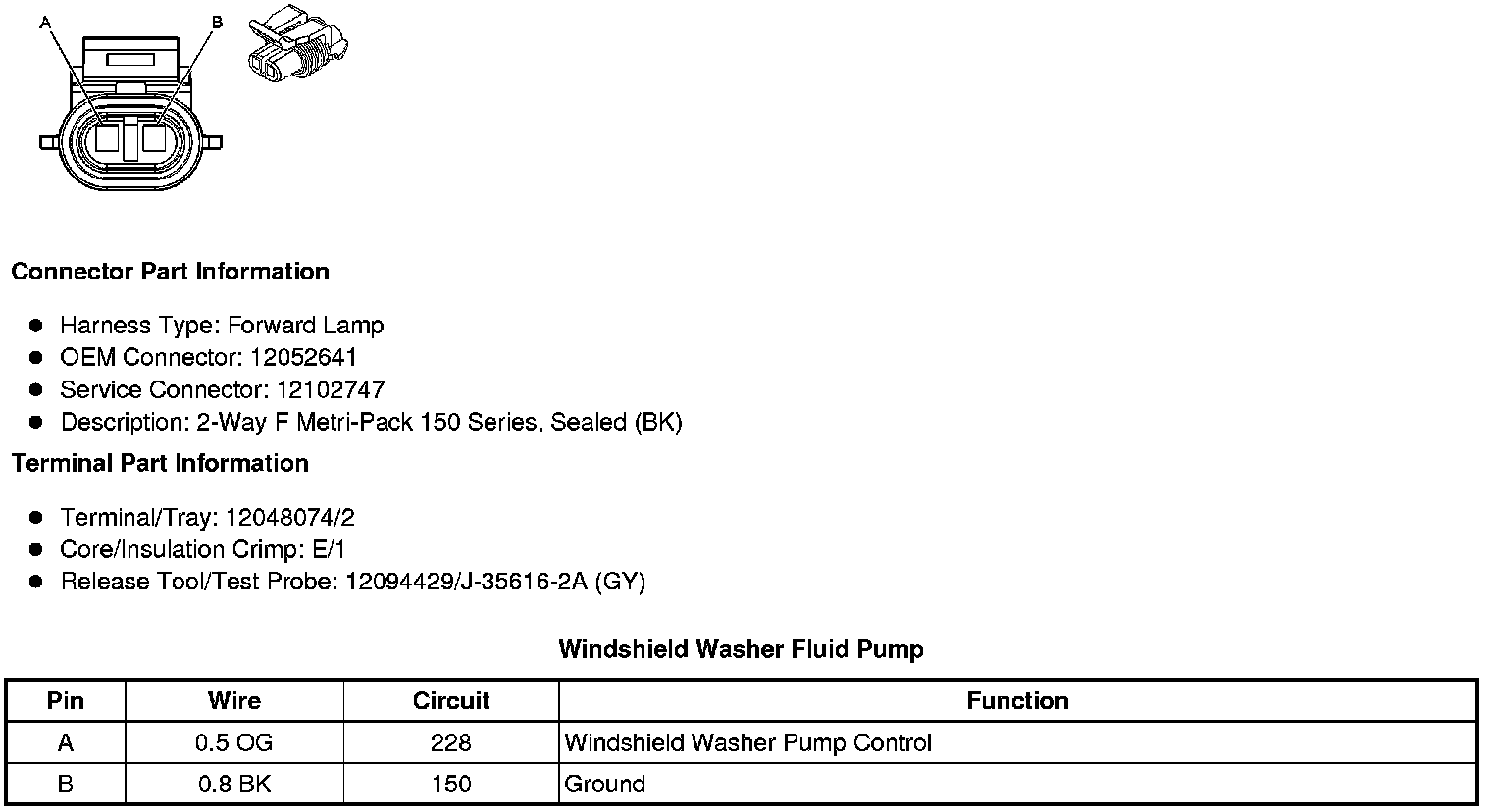

Windshield Washer Fluid Pump
