Headlights/Daytime Running Lights (DRL) Schematics




Ambient Light Sensor, Headlamp Controls and Switches

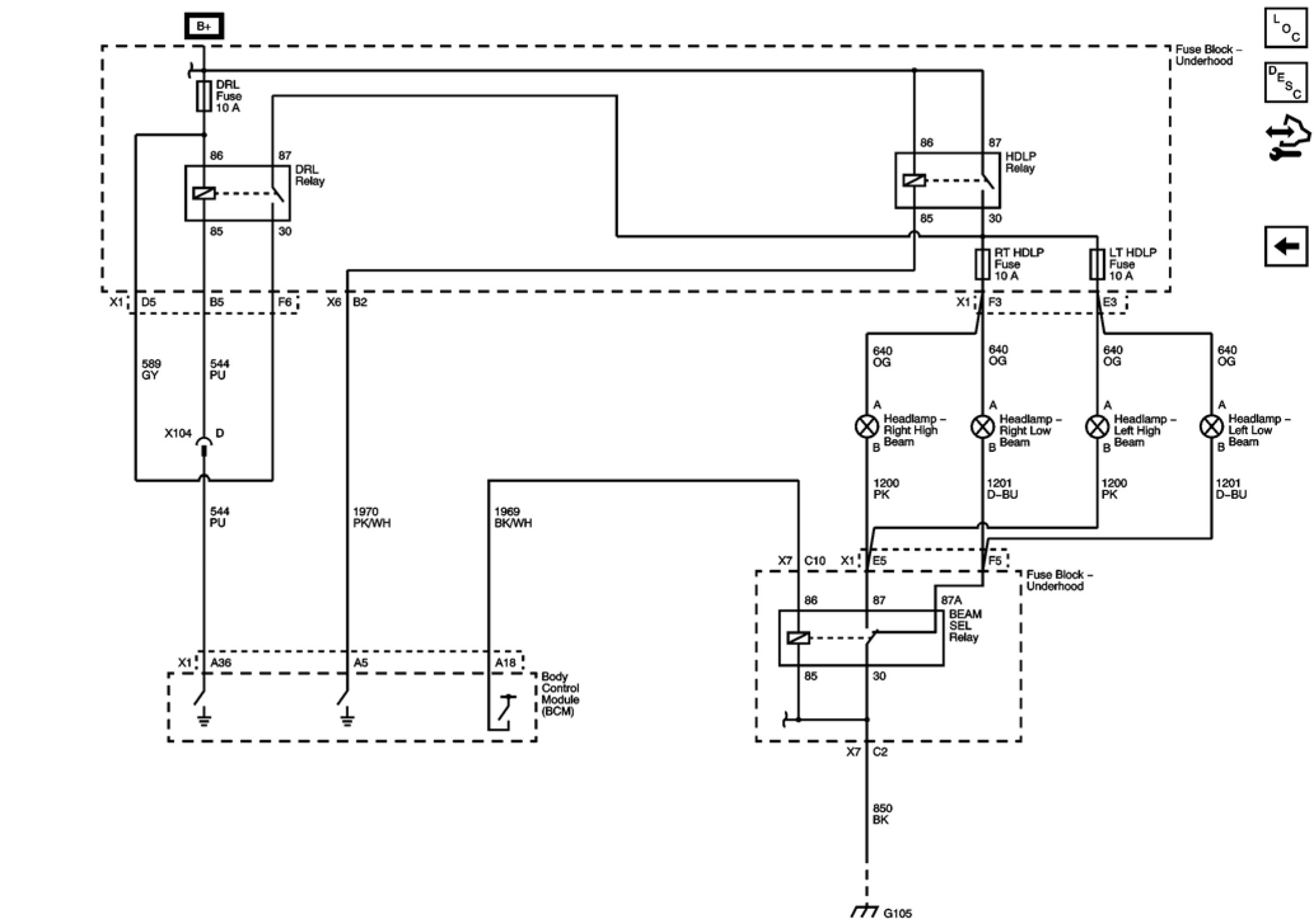

Headlamps
