Front Wheel Knuckle Components

Wheels/Vehicle Underbody Component Views

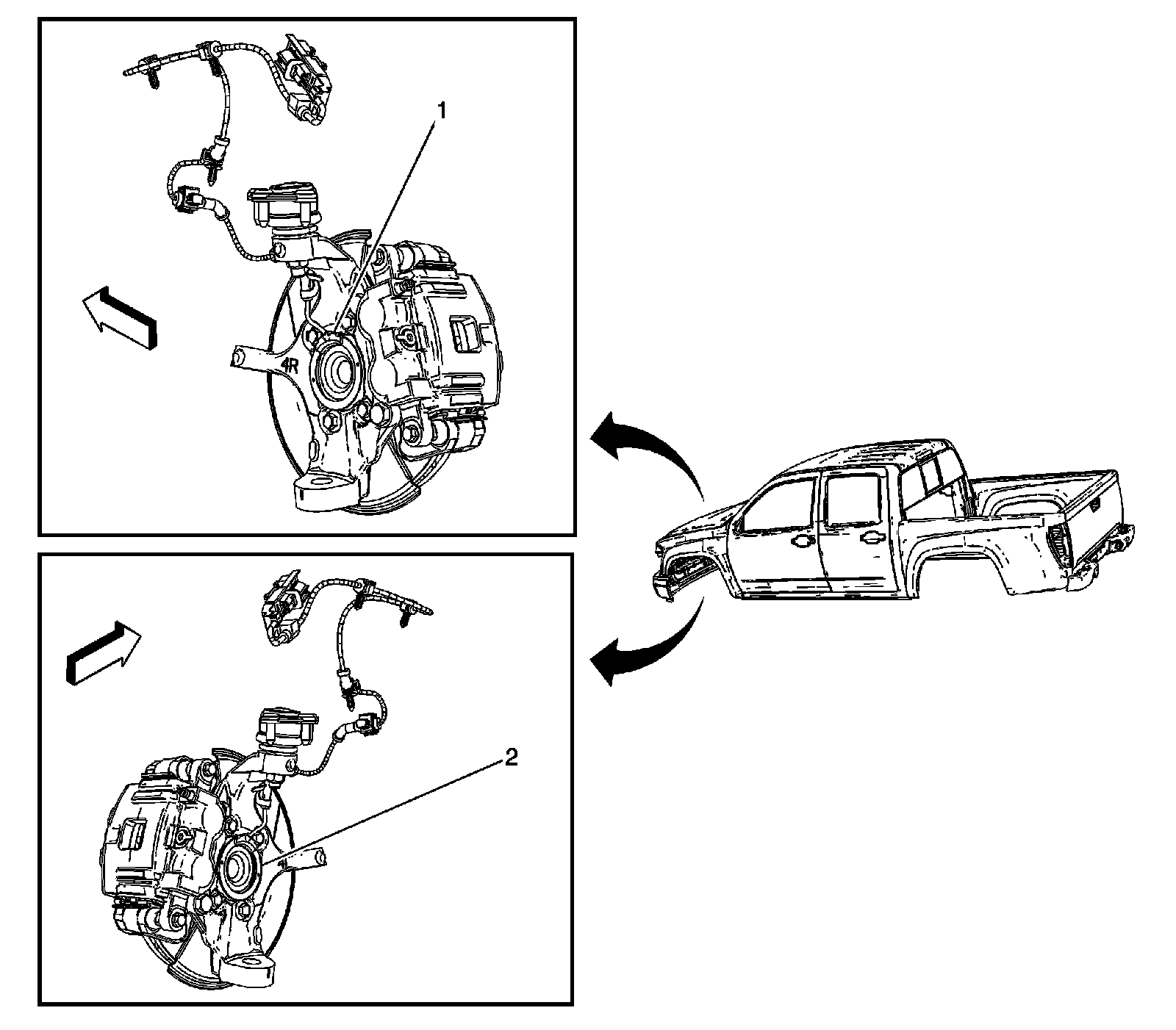

Front Wheel Knuckle Components

1 - Wheel Speed Sensor (WSS) - Right Front
2 - Wheel Speed Sensor (WSS) - Left Front
