Home
>>
Chevy Truck
>>
2011
>>
Equinox AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Fuel Economy Mode Switch S112
Fuel Economy Mode Switch S112

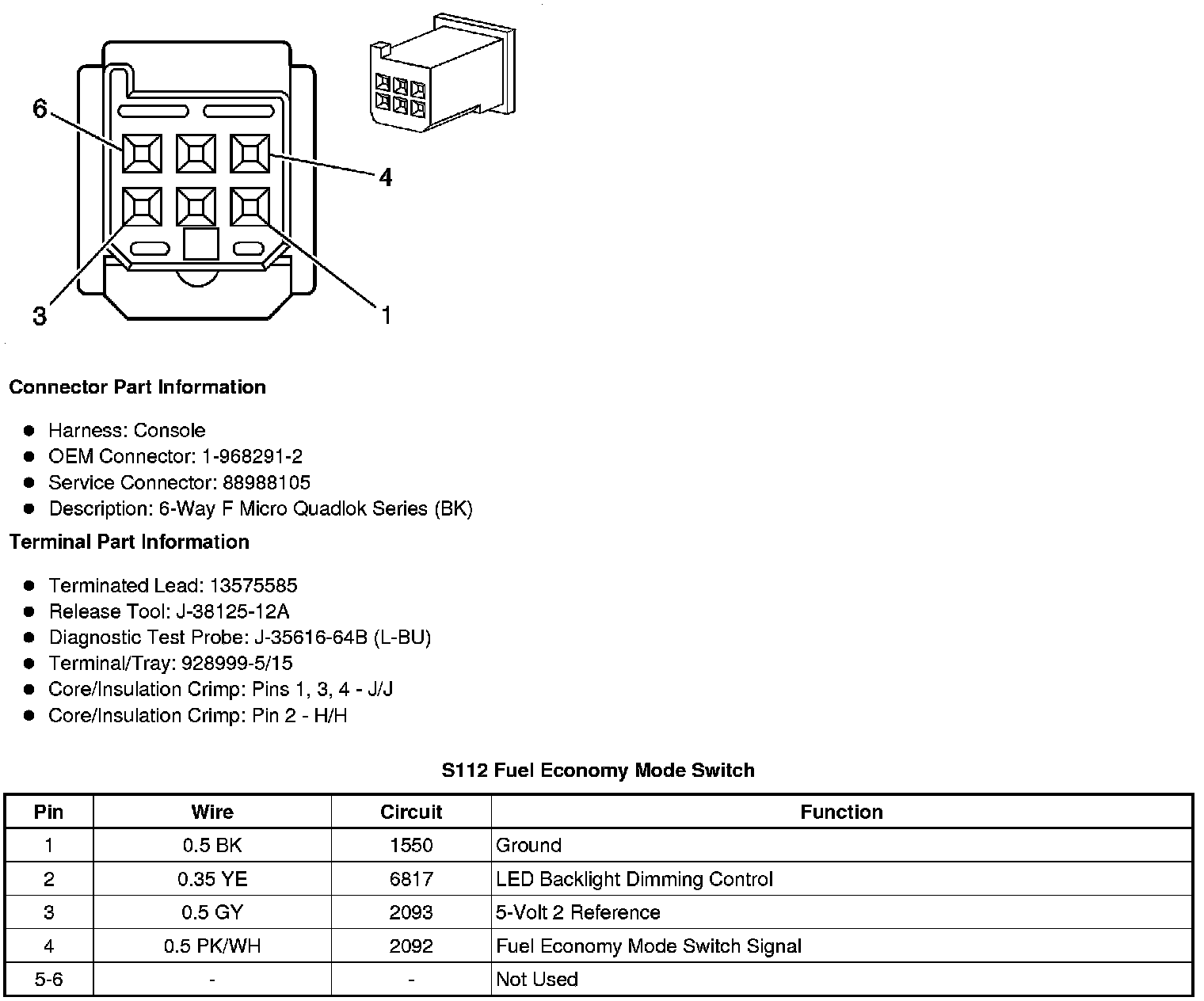

Component Connector End Views
S112 Fuel Economy Mode Switch
