Seat Lumbar Support Horizontal Motor - Driver M52D
Seat Lumbar Support Horizontal Motor - Driver M52D
Component Connector End Views

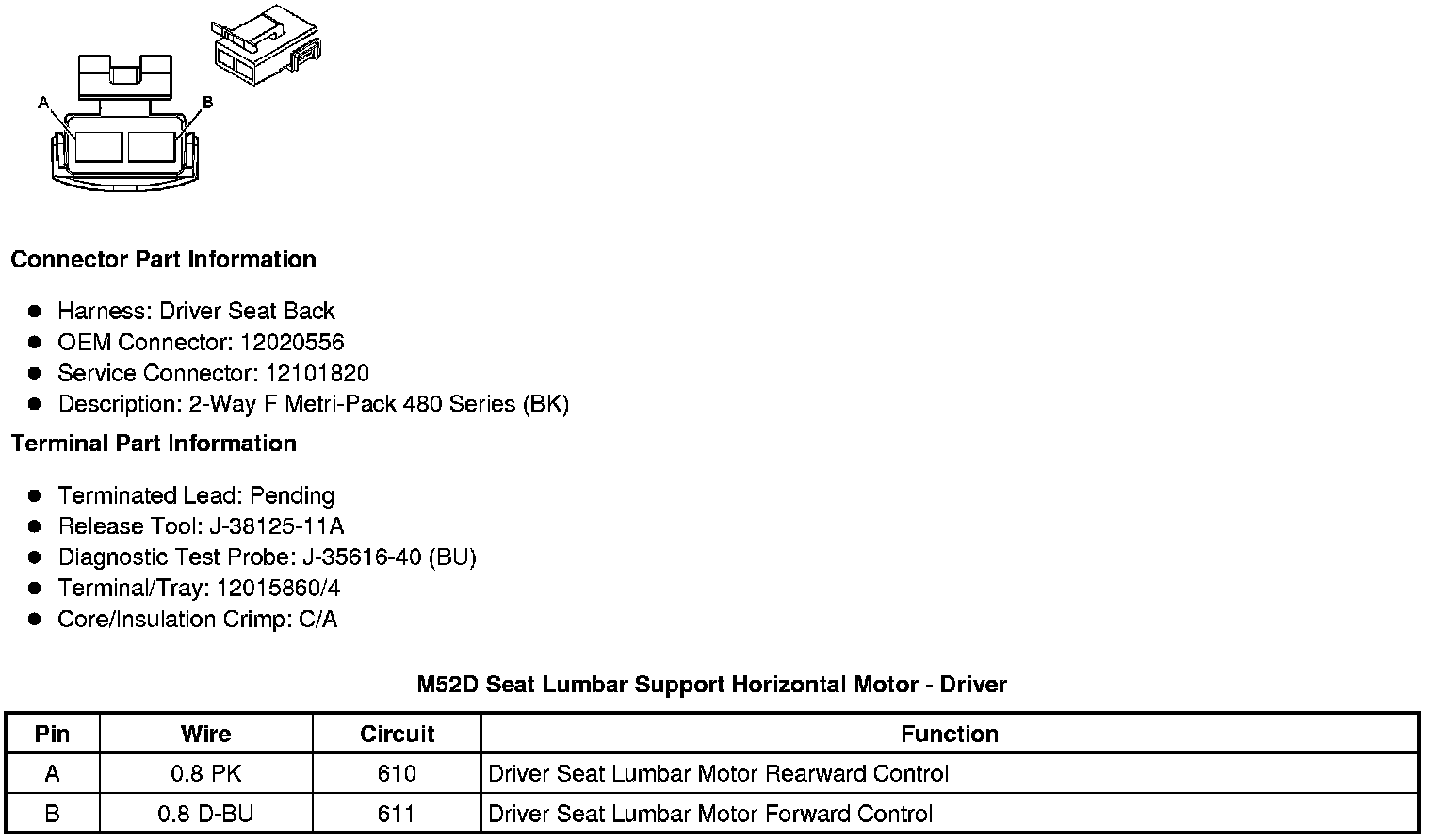

M52D Seat Lumbar Support Horizontal Motor - Driver
