Heated Oxygen Sensor - Bank 1 Sensor 1 B52C
Heated Oxygen Sensor - Bank 1 Sensor 1 B52C
Component Connector End Views

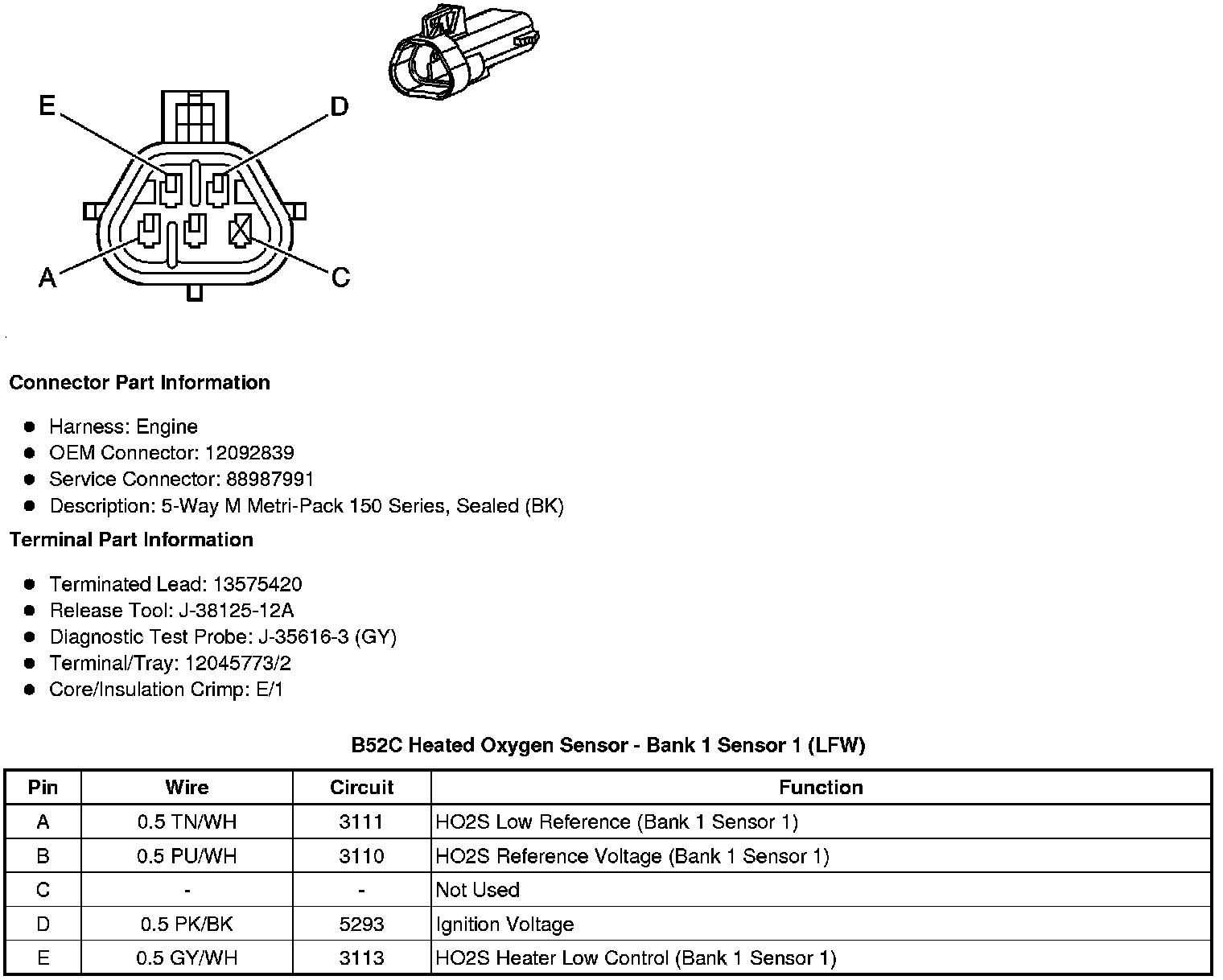

B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFW)
