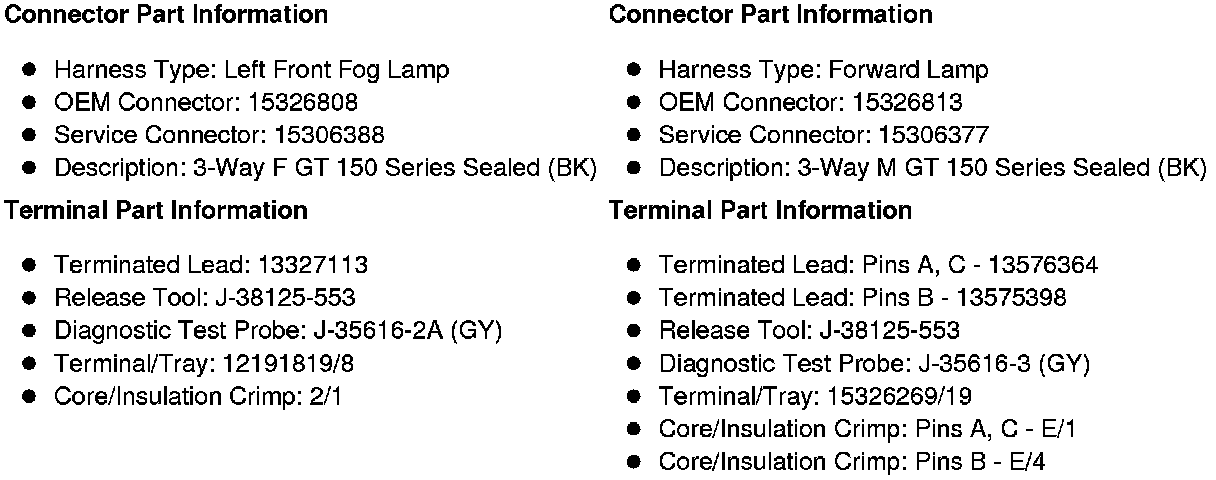

X101 Left Front Fog Lamp Harness to Forward Lamp Harness (Z75 with T96)

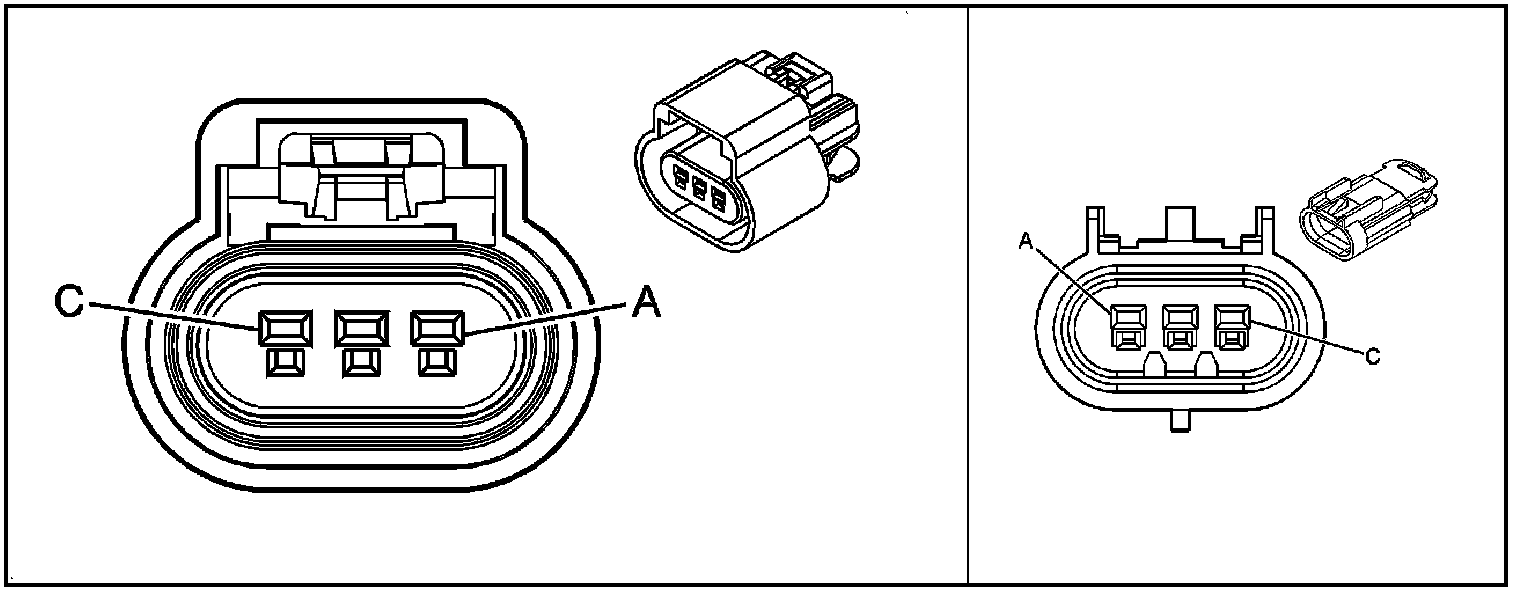

Inline Harness Connector End Views

X101 Left Front Fog Lamp Harness to Forward Lamp Harness (Z75 with T96)
