Front Bumper Fascia Replacement (Acadia)

Front Bumper Fascia Replacement (Acadia)












2.Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement Front Wheelhouse Front Liner Replacement .

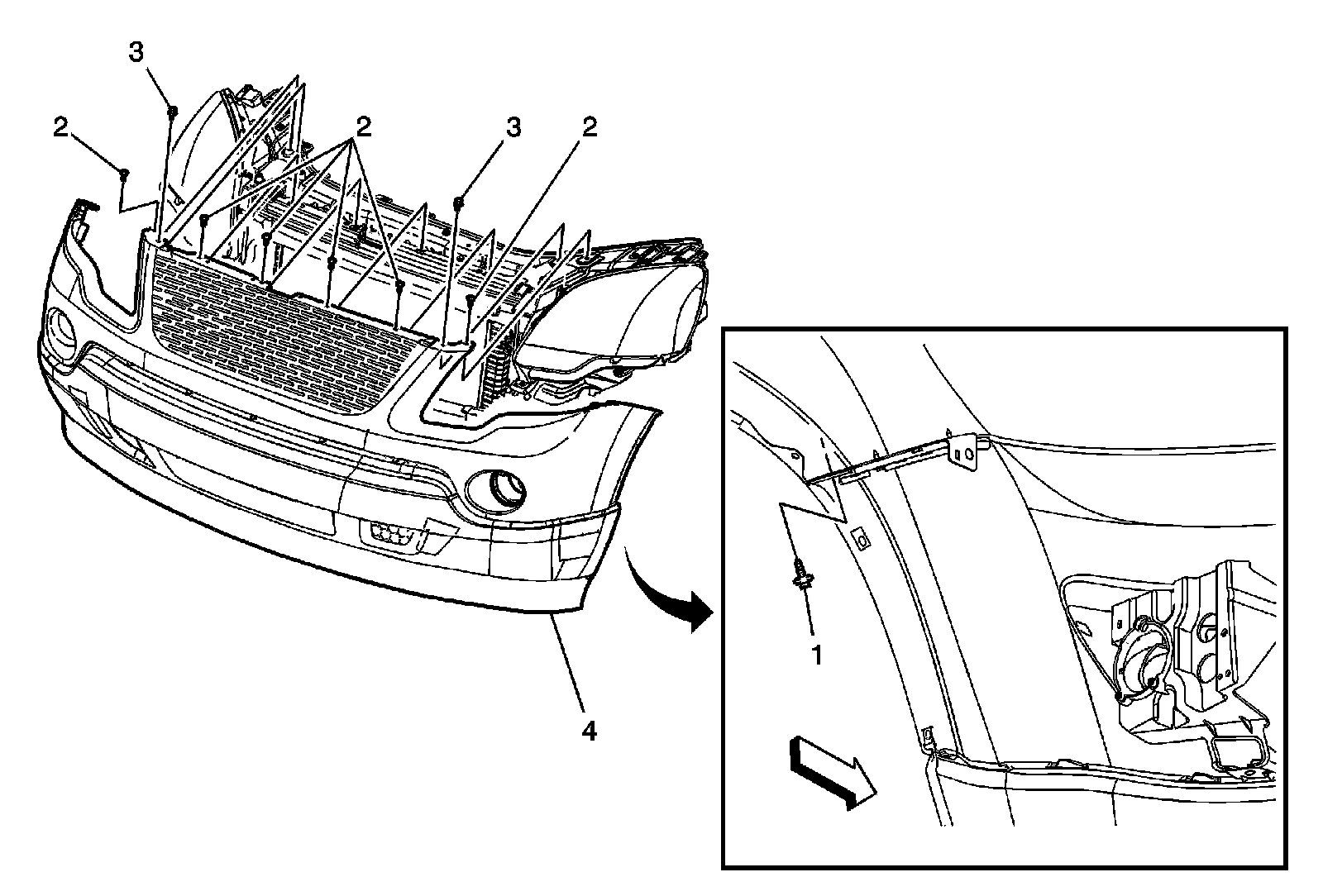

1Front Fascia Screw (Qty: 2)
Caution:Refer to Fastener Caution .

Tip Reach underneath the wheelhouse to access the bolts.
Tighten 2 N �m (18 lb in)

2Front Fascia Retainer (Qty: 6)

3Front Fascia Bracket Screw (Qty: 2)Tighten 2 N �m (18 lb in)

4Front Fascia

Procedure

1.Drill out the license plate bracket rivets, if equipped.

2.Disconnect any electrical connectors.

3.Transfer parts as needed.

4.Pull forward to remove the front bumper fascia.
