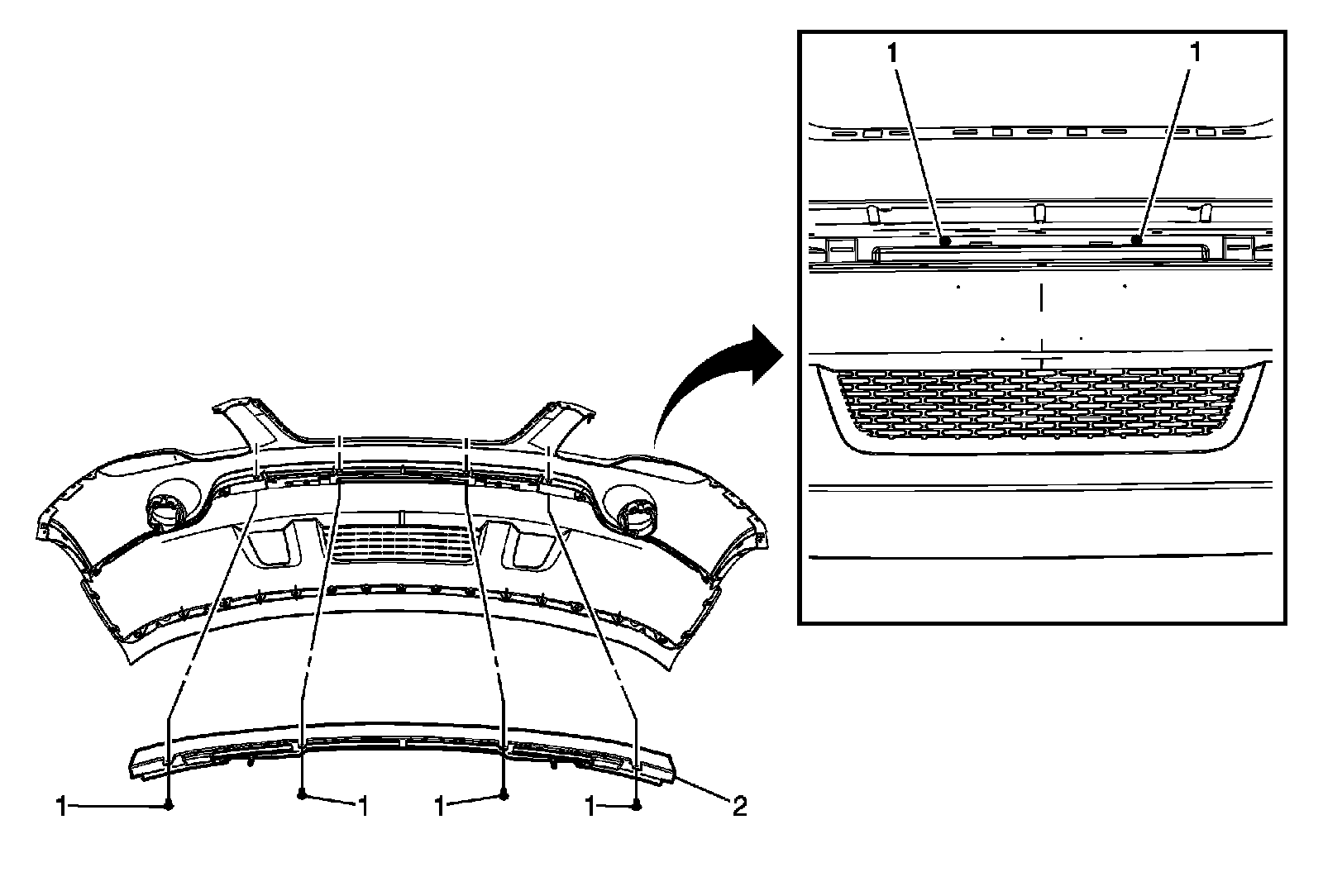

Radiator Grille Support Reinforcement Replacement (Acadia, Enclave)


Radiator Grille Support Reinforcement Replacement (Acadia, Enclave)

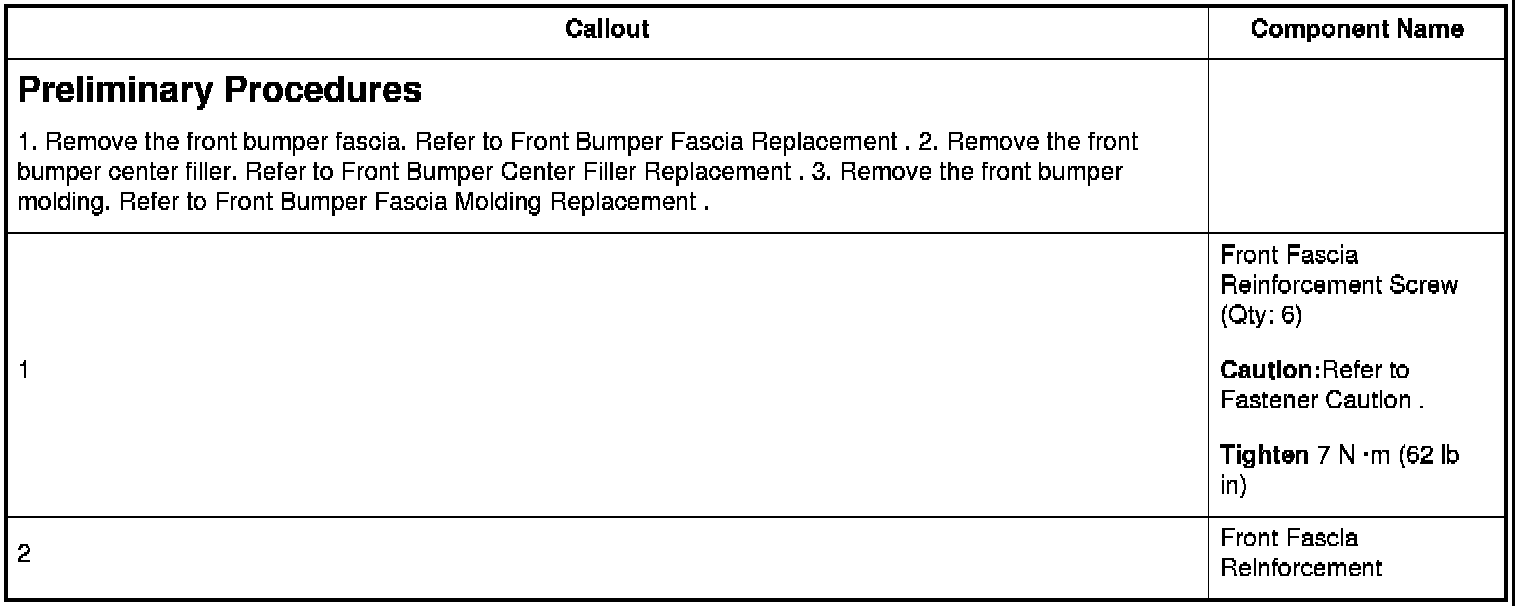

Preliminary Procedures

Caution:Refer to Fastener Caution.
Tighten
