Rear Bumper Harness Routing
Harness Routing Views

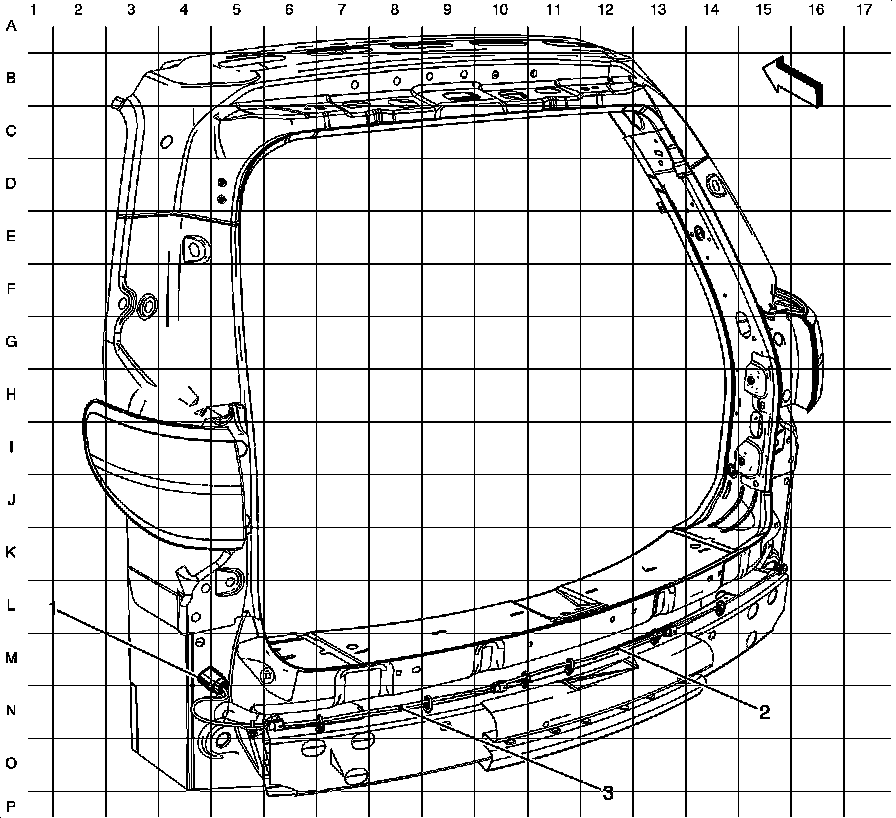

Rear Bumper Harness Routing
1
- X440 (UD7 or X88)
2
- J444 (UD7)
3
- J440 (UD7)
