Electrical Diagrams

Antilock Brake System Schematics

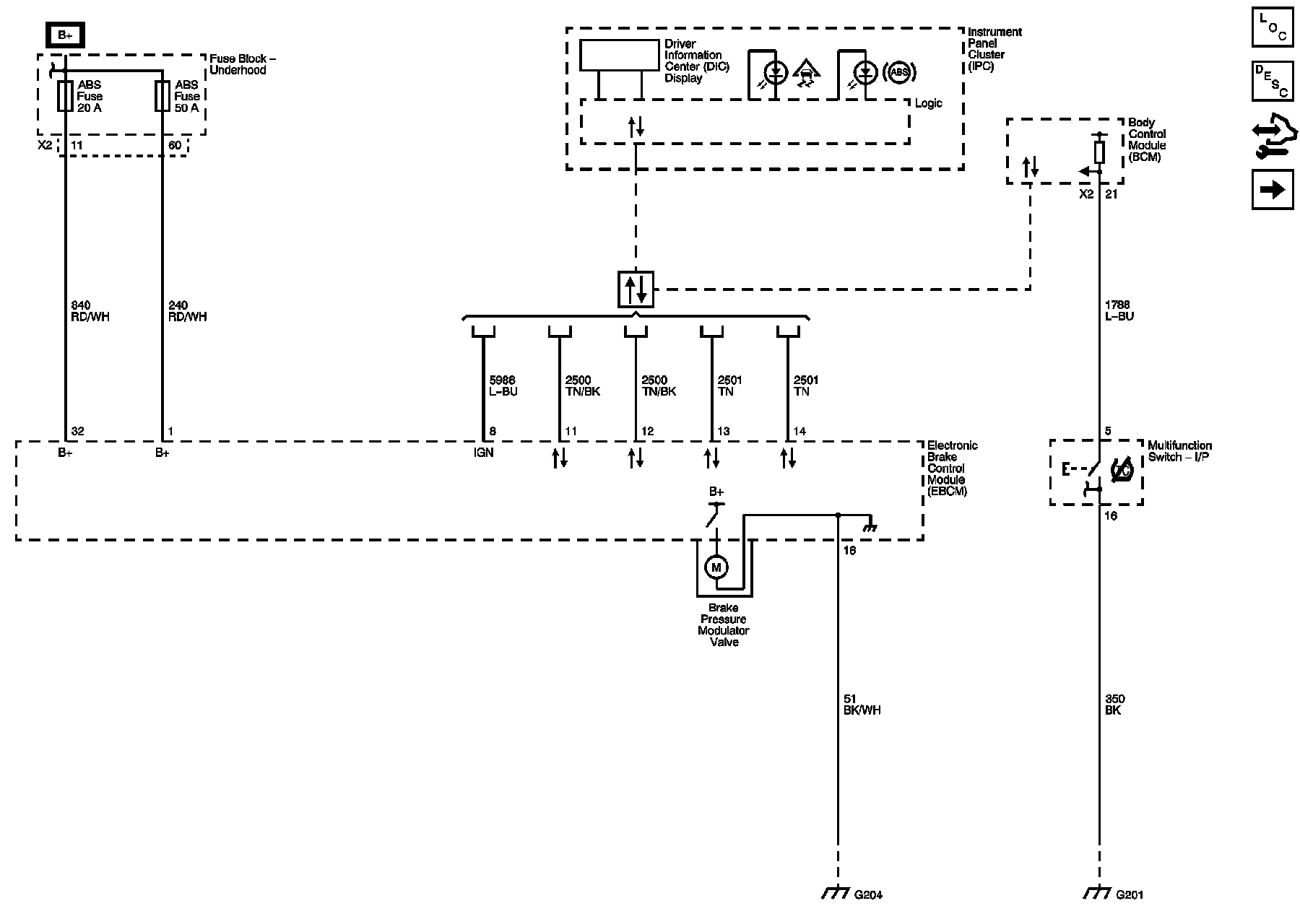

Module Power, Ground, Serial Data, and Instrument Panel Display

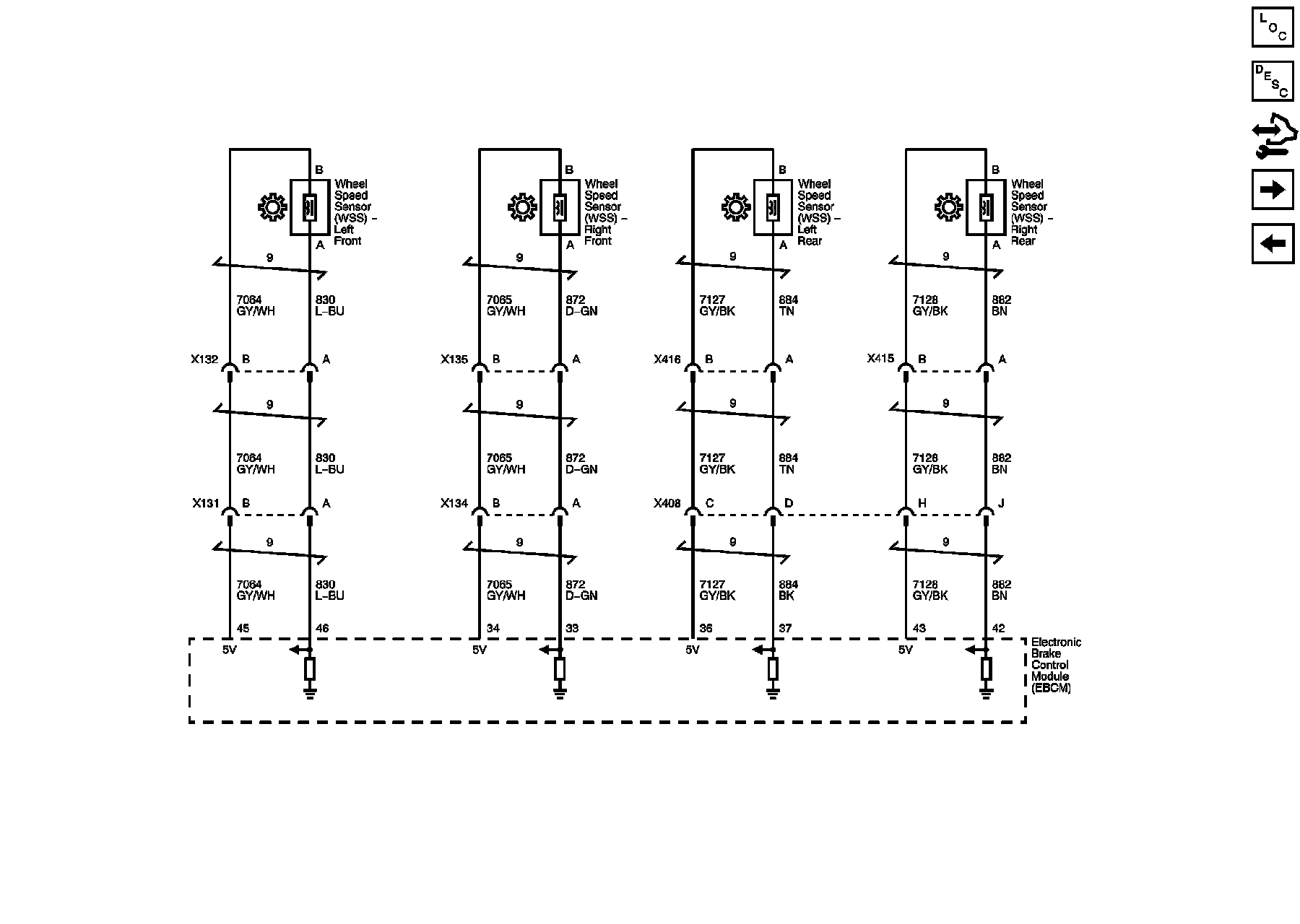

Wheel Speed Sensors

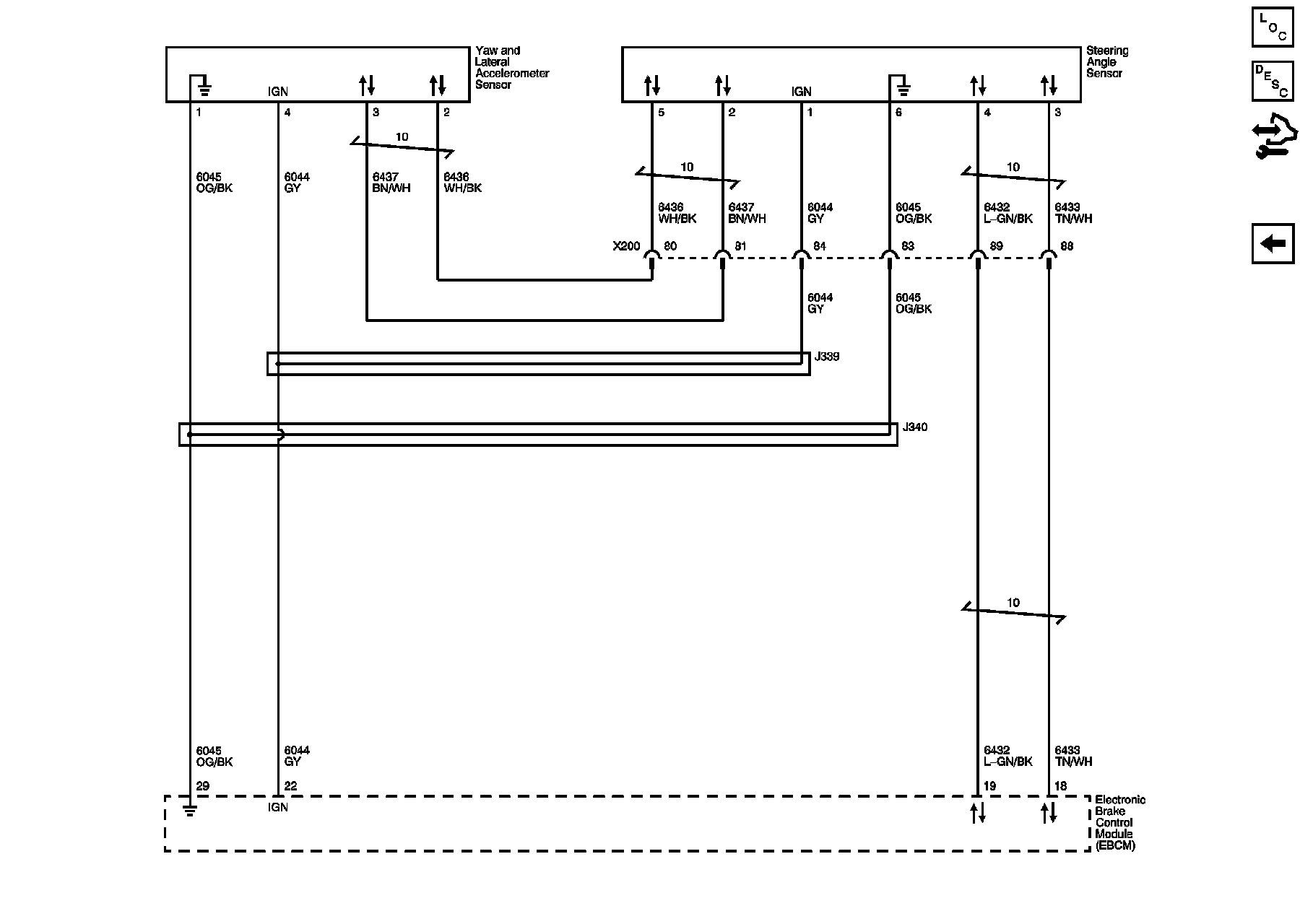

Steering Angle and Yaw Sensors
