Ambient Light Sensor
>>

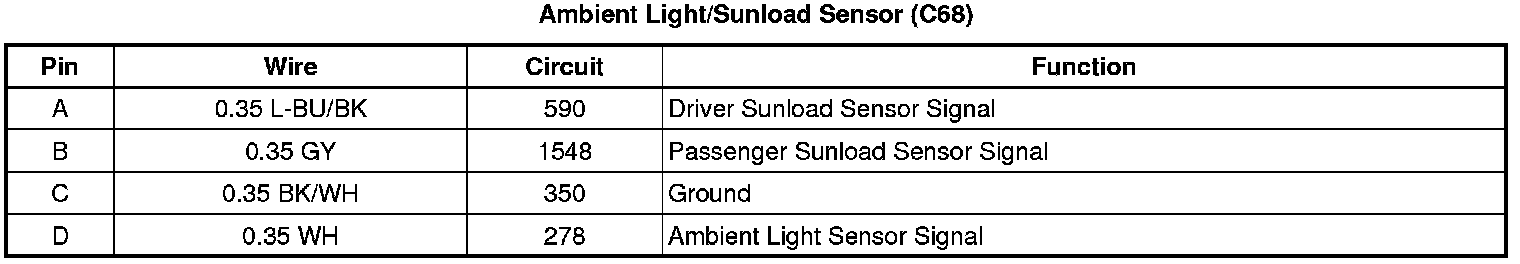

Ambient Light/Sunload Sensor (C68)
Ambient Light/Sunload Sensor (C68)

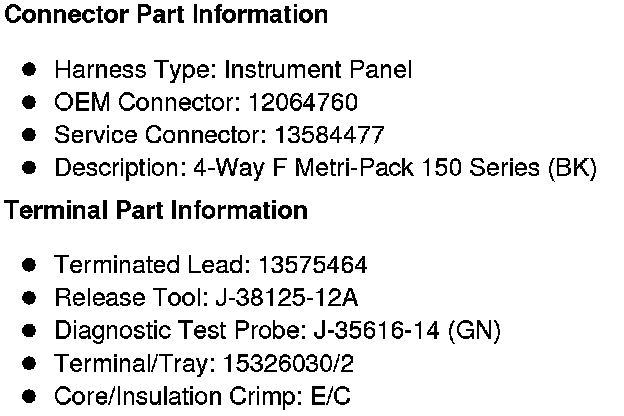

Component Connector End Views
Ambient Light/Sunload Sensor (C68)
