X925
>>
(UVC)
(UVC)
Inline Harness Connector End Views

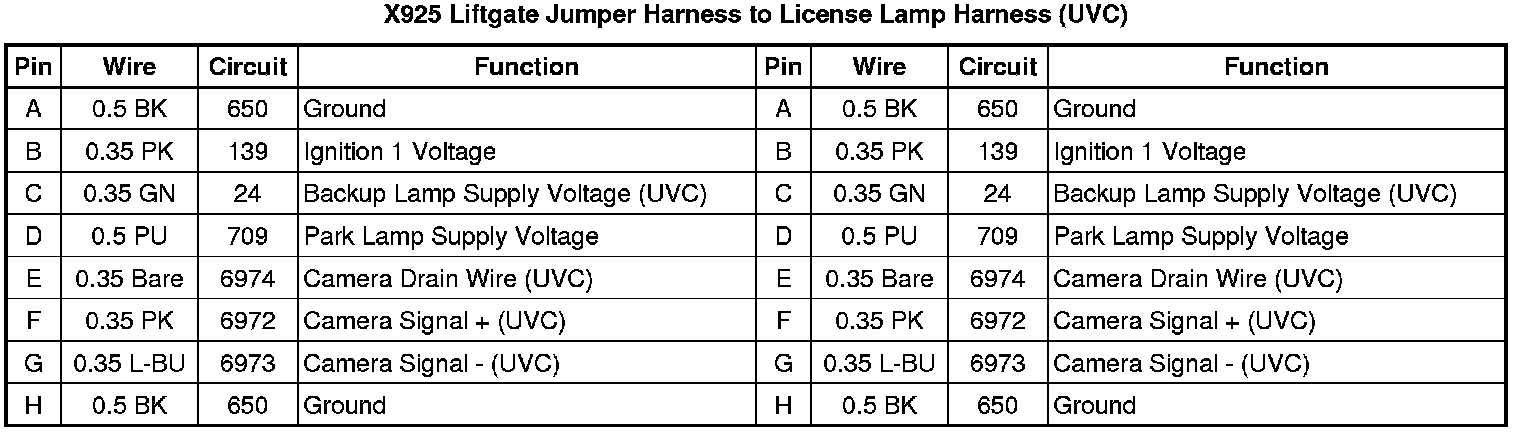

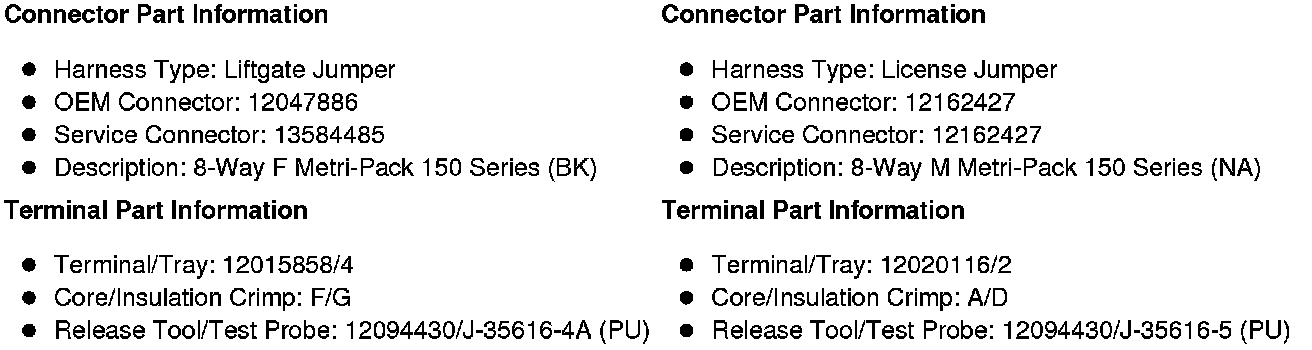

X925 Liftgate Jumper Harness to License Lamp Harness (UVC)
