Control Unit, Differential Lock
>>
Rear Wheel Drive Module Clutch (MH4)
Rear Wheel Drive Module Clutch (MH4)

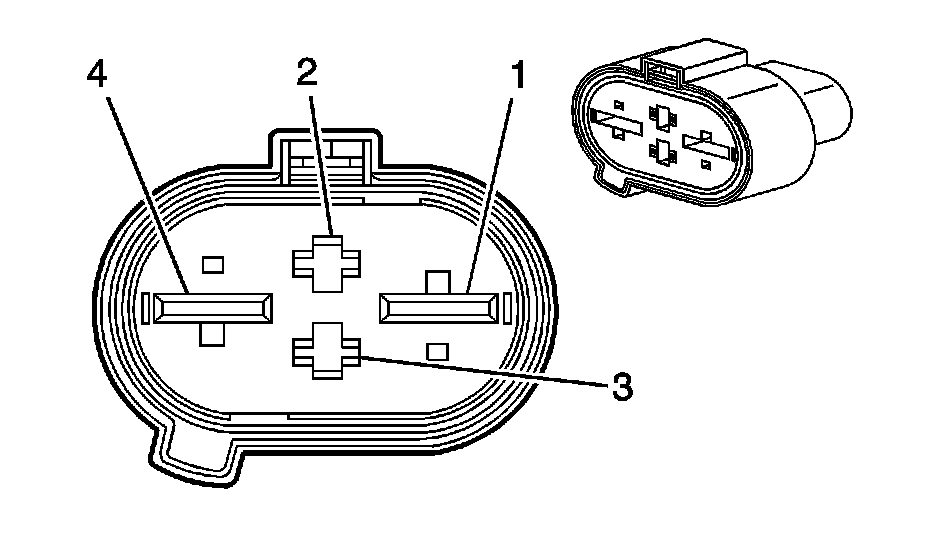

Component Connector End Views

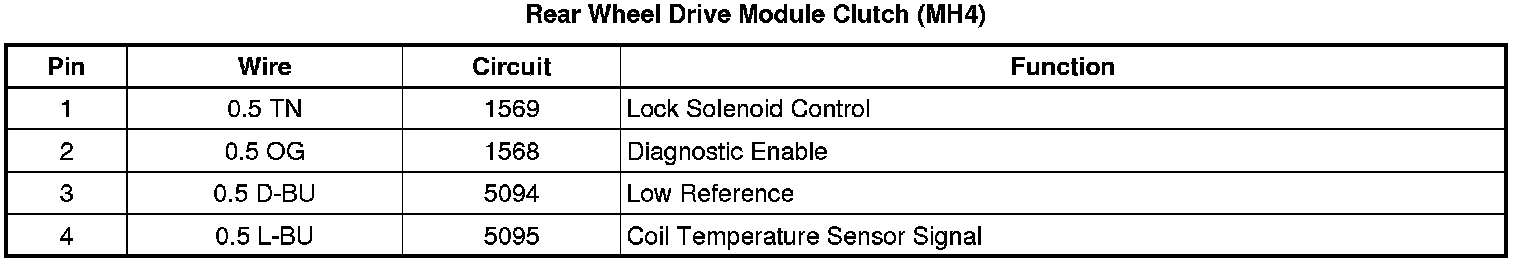

Rear Wheel Drive Module Clutch (MH4)
