Inflatable Restraint Seat Belt Tension Sensor - Passenger (AL0)

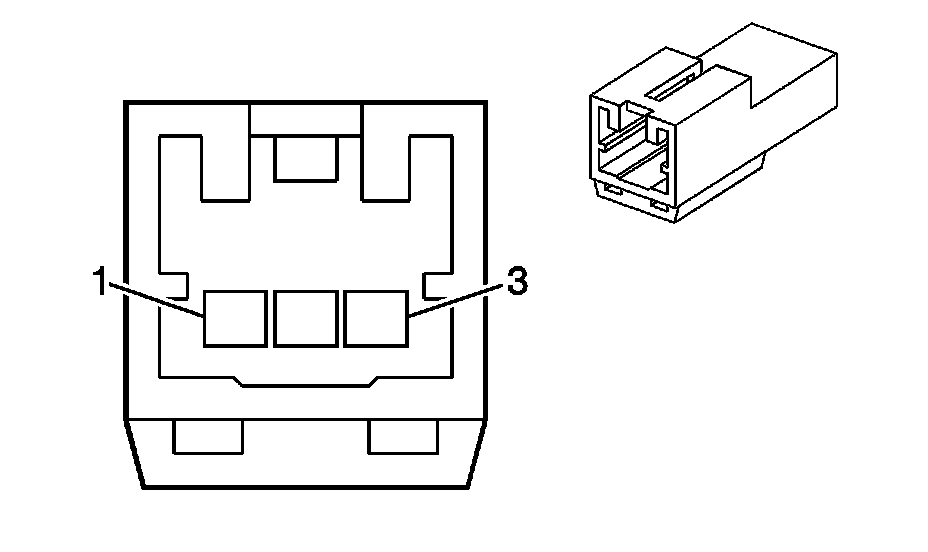

Component Connector End Views

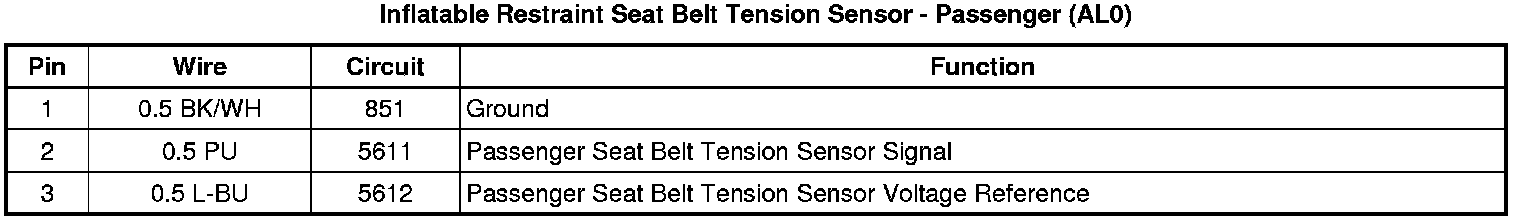

Inflatable Restraint Seat Belt Tension Sensor - Passenger (AL0)
