Park Brake Control Switch
Park Brake Control Switch
Component Connector End Views

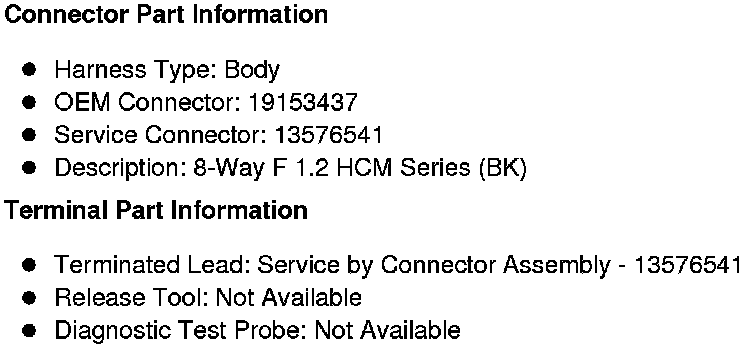

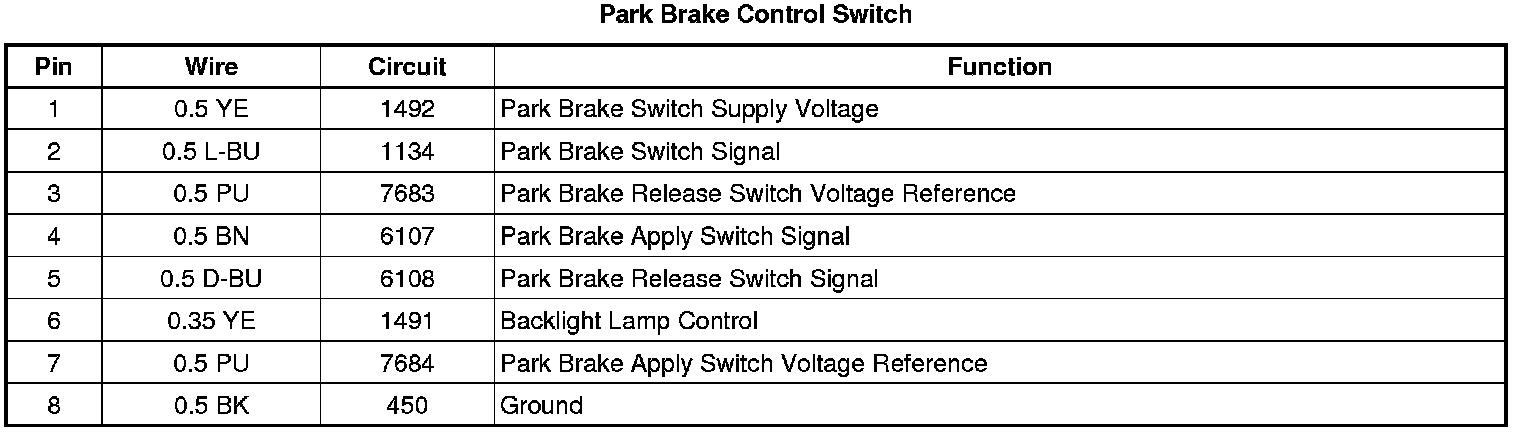

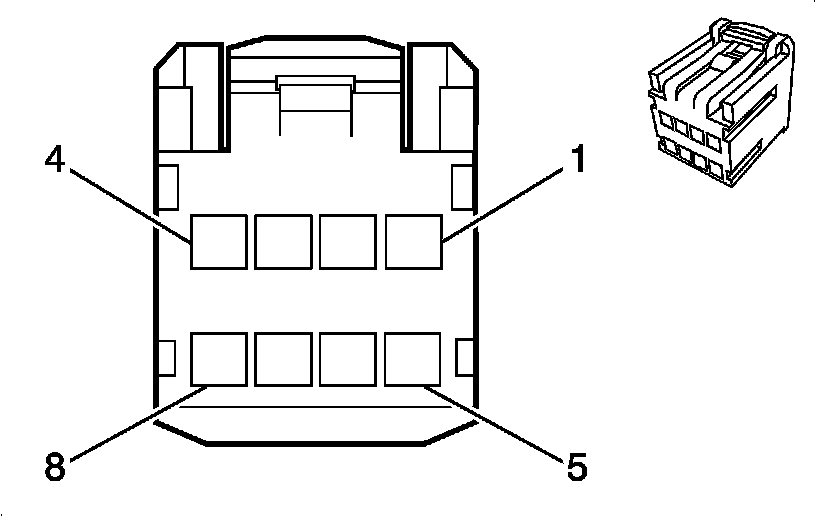

Park Brake Control Switch
